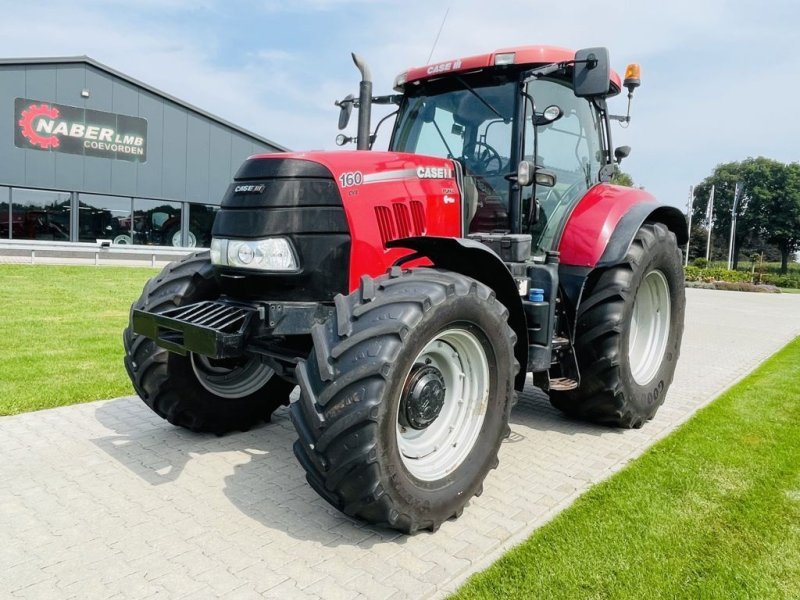

Case PUMA 160 CVX
Built: 2015 · Series: PUMA
More machines from model year 2015
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case PUMA – the range page from St. Valentin, from the PUMA 160 to the PUMA 260 CVX, 140 to 222 kW, six-cylinder of 6.7 l, CVX for the stepless transmission
This page gathers the versions of the Case IH PUMA range from the St. Valentin plant in Austria. The number after PUMA gives the power class in hp (PUMA 160 about 160 hp, PUMA 210 about 210 hp, PUMA 260 about 260 hp), CVX marks the version with the stepless transmission.
Read on 3 more paragraphs
The register lists here 7 versions with 140 to 222 kW (213 hp) from six-cylinders of 6,728 cm³ displacement, unladen weights of 6,910 to 10,420 kg, gross weights of 7,750 to 14,700 kg, lengths of 4,905 to 5,595 mm and widths of 2,135 to 2,550 mm. Also recorded are a height of 3,050 mm and a torque of 843 Nm at a rated speed of 2,200 rpm.
The PUMA range positions Case IH in the mid-to-upper power class of standard tractors and competes there directly with its sister models from New Holland within the same CNH group, as well as with John Deere's 6 series and Fendt's Vario range. The St. Valentin plant builds not only the PUMA range but also Case IH's smaller and larger standard tractors, and is one of CNH's most important tractor plants in Europe.
On the used PUMA range, operating hours, the condition of the CVX transmission on the stepless versions, electronics and hydraulic valves, the four-wheel-drive clutch and brakes, and common-rail injection and exhaust aftertreatment count; parts run through the Case IH network.
Sources: SpecCodex register, model data: Case PUMA, Case IH (manufacturer)
Technical data
Engine
| Power | 140 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
Dimensions and weights
| Length | 5,219 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 6,910 kgcorrect |
| Gross vehicle weight | 11,500 kgcorrect |
Where this model stands
Power-to-weight ratio: 20.3 kW/t (140 kW / 6.9 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case PUMA 160 CVX have?
The Case PUMA 160 CVX delivers 140 kW.
How much does the Case PUMA 160 CVX weigh?
The unladen weight is 6,910 kg.
What is the gross vehicle weight of the Case PUMA 160 CVX?
11,500 kg.
What engine does the Case PUMA 160 CVX have?
6 cylinders, 6,728 cm³ displacement.
What are the dimensions of the Case PUMA 160 CVX?
5,219 mm × 2,550 mm.
When was the Case PUMA 160 CVX built?
Production years: 2015.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
