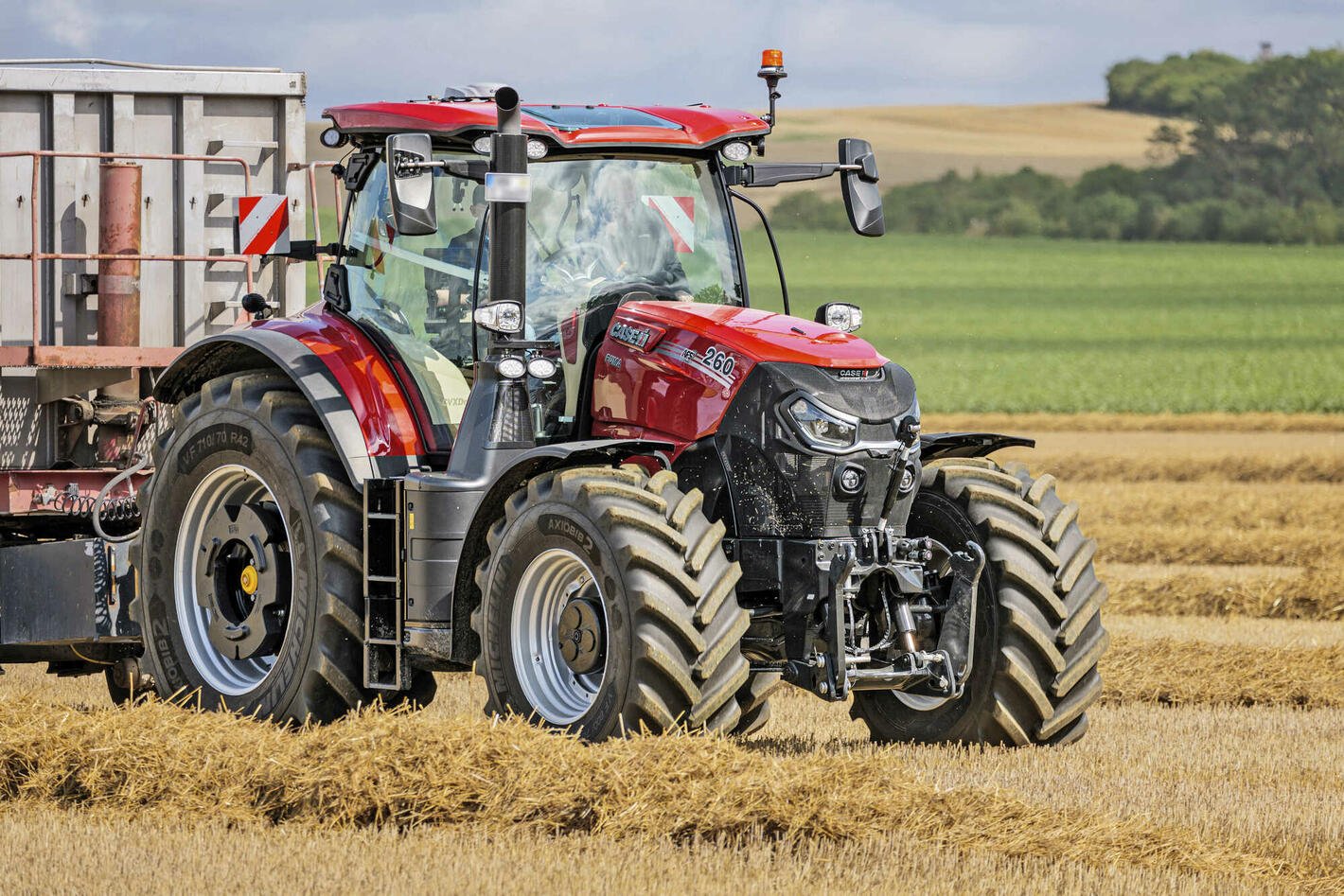

Case PUMA 260 CVX
Built: 2025-2025 · Series: PUMA
More machines from model year 2025
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case PUMA 260 CVX rolled off the line in 2025 as a tractor. Power comes from a six-cylinder engine; from 6.7 litres it draws 222 kW.
It measures 5.59 m in length and 2.55 m in width. Unladen, it tips the scales at 10,420 kg.
Within the range, rated power spans from 13 to 320 kW; with 222 kW, the PUMA 260 CVX sits at the top. Directly alongside are the PUMA 230 CVX with 192 kW below and the Magnum 280 with 230 kW above.
Case PUMA – the range page from St. Valentin, from the PUMA 160 to the PUMA 260 CVX, 140 to 222 kW, six-cylinder of 6.7 l, CVX for the stepless transmission
This page gathers the versions of the Case IH PUMA range from the St. Valentin plant in Austria. The number after PUMA gives the power class in hp (PUMA 160 about 160 hp, PUMA 210 about 210 hp, PUMA 260 about 260 hp), CVX marks the version with the stepless transmission.
Read on 3 more paragraphs
The register lists here 7 versions with 140 to 222 kW (213 hp) from six-cylinders of 6,728 cm³ displacement, unladen weights of 6,910 to 10,420 kg, gross weights of 7,750 to 14,700 kg, lengths of 4,905 to 5,595 mm and widths of 2,135 to 2,550 mm. Also recorded are a height of 3,050 mm and a torque of 843 Nm at a rated speed of 2,200 rpm.
The PUMA range positions Case IH in the mid-to-upper power class of standard tractors and competes there directly with its sister models from New Holland within the same CNH group, as well as with John Deere's 6 series and Fendt's Vario range. The St. Valentin plant builds not only the PUMA range but also Case IH's smaller and larger standard tractors, and is one of CNH's most important tractor plants in Europe.
On the used PUMA range, operating hours, the condition of the CVX transmission on the stepless versions, electronics and hydraulic valves, the four-wheel-drive clutch and brakes, and common-rail injection and exhaust aftertreatment count; parts run through the Case IH network.
Sources: Kennwerte der Modelle Case PUMA, Case IH (Hersteller)
Technical data
Engine
| Power | 222 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
Dimensions and weights
| Length | 5,595 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 10,420 kgcorrect |
| Gross vehicle weight | 14,700 kgcorrect |
Where this model stands
Power-to-weight ratio: 21.3 kW/t (222 kW / 10.4 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case PUMA 260 CVX have?
The Case PUMA 260 CVX delivers 222 kW.
How much does the Case PUMA 260 CVX weigh?
The unladen weight is 10,420 kg.
What is the gross vehicle weight of the Case PUMA 260 CVX?
14,700 kg.
What engine does the Case PUMA 260 CVX have?
6 cylinders, 6,728 cm³ displacement.
What are the dimensions of the Case PUMA 260 CVX?
5,595 mm × 2,550 mm.
When was the Case PUMA 260 CVX built?
Production years: 2025.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
