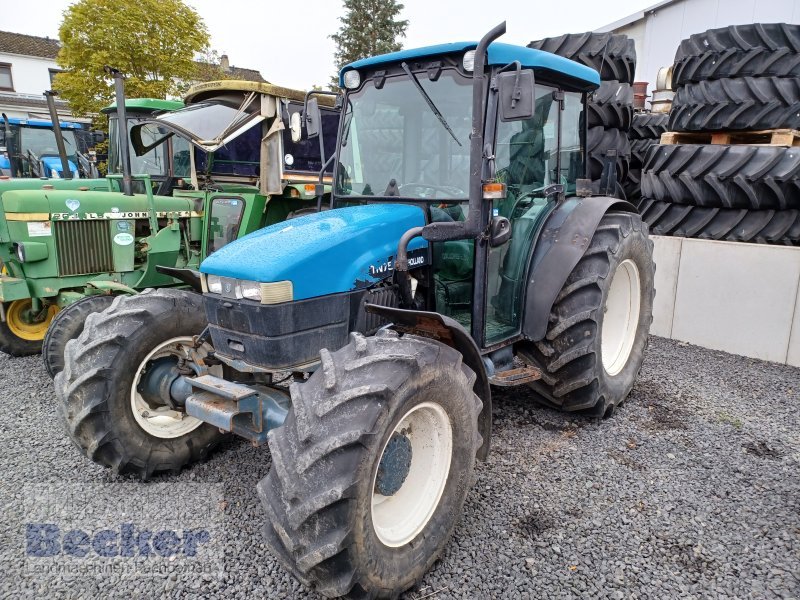

New Holland TN-75 D/S (A): compact multi-purpose tractor with a 2,930cc three-cylinder diesel, 53 kW (72 hp) and 274 Nm of torque, built 1999 to 2004
Case New Holland is the group formed in 1999 from the merger of the Case Corporation with New Holland; under the group's roof, several tractor brands continued to run in parallel, including New Holland's compact TN range, to which the TN-75 covered here belongs.
Read on 3 more paragraphs
The TN-75 D/S (A) carries a water-cooled three-cylinder diesel engine of 2,930 cm³, producing 53 kW (72 hp) at 2,300 rpm and 274 Nm of torque. Unladen weight stands at 3,060 kg, at 3,980 mm long, 1,850 mm wide and 2,400 mm high on a 2,130 mm wheelbase; top speed is 30 km/h, typical for this class of tractor.
With a three-cylinder engine of just under 3 litres and around 53 kW, the TN-75 belongs to the class of compact multi-purpose tractors used on small and medium-sized farms, for grassland maintenance and for work with a front loader and light towed implements.
When buying a TN-75 used, the condition of the three-cylinder engine and its injection pump after many operating hours matters, along with the tightness of the cooling system and the state of the clutch. Also worth checking are the hydraulic pump serving the lift function, possible corrosion damage to the frame and mudguards, and, if the machine has done front-loader work, the condition of the front axle and its bearings, which take the heaviest load in that duty.
Sources: SpecCodex-Register: Kennwerte des Modells New Holland TN-75 D/S (A), New Holland (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 72 hp (53 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 274 Nmcorrect |
| Speed at max. torque | 1,392 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,930 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 18.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,980 mmcorrect |
|---|---|
| Width | 1,850 mmcorrect |
| Height | 2,400 mmcorrect |
| Wheelbase | 2,130 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 3,060 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/16 R, 32 V/16 R and 44 V/16 Rcorrect |
| Front tyres | 7.50-16 ASF (A: 380/70 R 20 AS)correct |
| Rear tyres | 16.9 R 30 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.3 kW/t (53 kW / 3.1 t)
Power class: Universal (40–100 hp)
Stronger than 50% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case New Holland TN-75 D/S (A) have?
The Case New Holland TN-75 D/S (A) delivers 72 hp.
How much does the Case New Holland TN-75 D/S (A) weigh?
The unladen weight is 3,060 kg.
What engine does the Case New Holland TN-75 D/S (A) have?
3 cylinders, 2,930 cm³ displacement, Diesel.
How fast does the Case New Holland TN-75 D/S (A) go?
Top speed is 30 km/h.
What are the dimensions of the Case New Holland TN-75 D/S (A)?
3,980 mm × 1,850 mm × 2,400 mm.
When was the Case New Holland TN-75 D/S (A) built?
Production years: 1999–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
