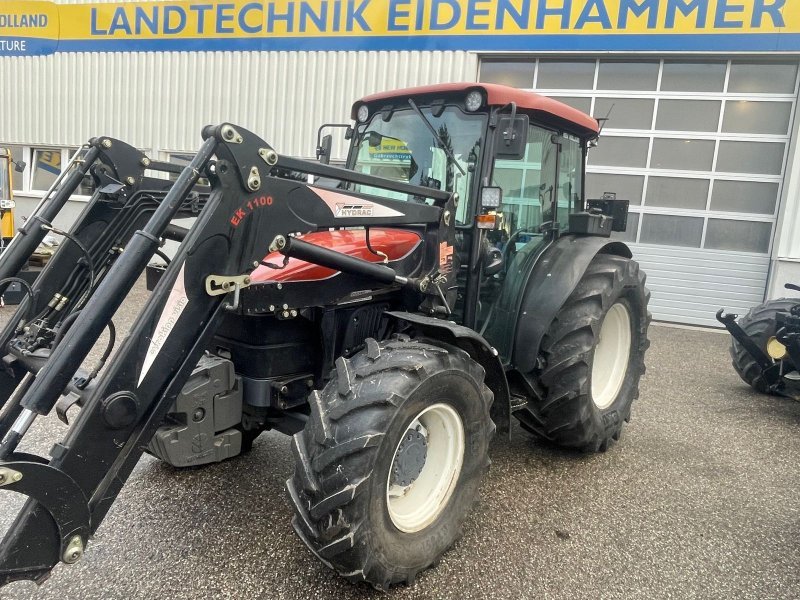

Case New Holland TN 75 DA/SA

Built: 2003–2008 · Series: TN-A Baureihe

More machines from model year 2003

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TN-A series from Case New Holland includes the TN 75 DA/SA. Production: 2003–2008. The engine delivers 76 hp (55.9 kW), has 3 cylinders, with a displacement of 2,931 cm³. Torque is 275 Nm. Rated speed is 2,300 rpm. The machine is 3,601 mm long, 1,867 mm wide and 2,476 mm high. The unladen weight is 2,365 kg. The wheelbase measures 2,070 mm. Ground clearance is 353 mm. Top speed is 30 km/h. Transmission: 16 V/16 R or 28 V/16 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 11.2 R 24 AS), rear 16.9 R 30 AS. The fuel is diesel. The bore measures 104 mm. The stroke is 115 mm. The compression ratio is 18.5:1. Maximum torque is reached at 1,432 rpm. Construction: unit construction (no separate frame). The TN-A Baureihe series covers 3 models. Rated output within it ranges from 59 to 76 hp; the TN 75 DA/SA sits at the top of that range with 76 hp. Its immediate neighbours are the TN 70 DA/SA below it with 72 hp. Unladen weight within it ranges from 2,277 to 2,365 kg; here the TN 75 DA/SA sits at the top of that range with 2,365 kg. 84 Case New Holland models across 17 series are on record.

Case New Holland TN-A range – utility tractors TN 60 to TN 75 from the Jesi plant, 43 to 56 kW, three-cylinder engines of 2,931 cm³, DA and SA versions

The TN-A range forms the second generation of New Holland's TN utility tractors, built from the early 2000s at the Jesi plant in Italy; the models covered here, TN 60, TN 70 and TN 75, carry the DA and SA suffixes for different equipment levels. Unlike New Holland's larger ranges, the engine within the TN-A line is uniform: all three models use the same three-cylinder engine of 2,931 cm³, graded by power output.

Read on 3 more paragraphs

The register lists here 3 versions with 43.4 to 55.9 kW from three-cylinder engines of 2,931 cm³, torque from 198 to 275 Nm at 2,300 rpm, unladen weights from 2,277 to 2,365 kg and uniform dimensions of 3,601 mm length, 1,867 mm width and 2,476 mm height.

The TN-A range was positioned as a compact utility tractor for small and medium farms, orchards, vineyards and municipal use, competing with comparable ranges from Deutz-Fahr, Massey Ferguson and Case IH, the sister brand within the joint CNH group.

On a used TN-A, the condition of the clutch and gearbox, the tightness of the hydraulics, rust on the chassis and wings, and the condition of the electronic displays and fuses all count; since all three models share the same engine and bodywork, many wear parts can be sourced across the range. A straight, unbent front axle and a smoothly engaging shuttle lever are worth checking on a test drive before buying.

Sources: SpecCodex register, model data: Case New Holland TN-A-Baureihe, New Holland Agriculture (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	76 hp (55.9 kW)correct
Rated speed	2,300 rpmcorrect
Torque	275 Nmcorrect
Speed at max. torque	1,432 rpmcorrect
Cylinders	3correct
Displacement	2,931 cm³correct
Bore	104 mmcorrect
Stroke	115 mmcorrect
Compression ratio	18.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,601 mmcorrect
Width	1,867 mmcorrect
Height	2,476 mmcorrect
Wheelbase	2,070 mmcorrect
Ground clearance	353 mmcorrect
Unladen weight	2,365 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	16 V/16 R or 28 V/16 Rcorrect
Front tyres	7.50-16 ASF (A: 11.2 R 24 AS)correct
Rear tyres	16.9 R 30 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 23.6 kW/t (56 kW / 2.4 t)

Power class: Universal (40–100 hp)

Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case New Holland TN 75 DA/SA have?

The Case New Holland TN 75 DA/SA delivers 76 hp.

How much does the Case New Holland TN 75 DA/SA weigh?

The unladen weight is 2,365 kg.

What engine does the Case New Holland TN 75 DA/SA have?

3 cylinders, 2,931 cm³ displacement, Diesel.

How fast does the Case New Holland TN 75 DA/SA go?

Top speed is 30 km/h.

What are the dimensions of the Case New Holland TN 75 DA/SA?

3,601 mm × 1,867 mm × 2,476 mm.

When was the Case New Holland TN 75 DA/SA built?

Production years: 2003–2008.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
