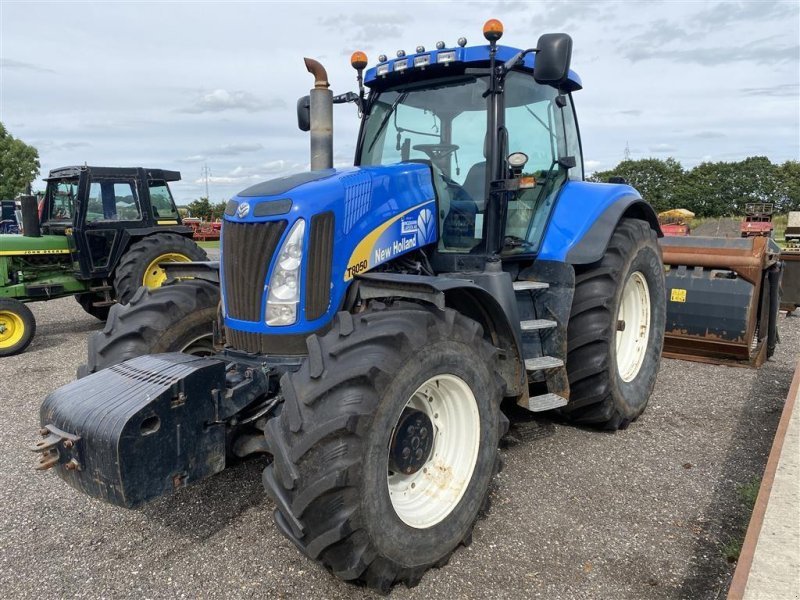

Case New Holland T 8050
Built: 2007–2011 · Series: T 8000 er-Baureihe
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T8000 (2007–2011) – the high-horsepower tractor from Racine as twin of the Case IH Magnum: T8010 to T8050, the last digits as power step, six-cylinders of 8.3 to 8.8 litres, 163 to 239 kW, 9.7 to 11.0 t
The T8000 was New Holland's high-horsepower tractor of the 220 to 330 hp class – introduced in 2007 as successor to the TG, built in Racine, Wisconsin, at the plant of group partner Case IH, whose Magnum the T8000 matches technically apart from bonnet, cab and colour. The type logic: T marks the tractor ranges of the blue programme, 8 the high-horsepower class, the last digits the power step – T8010 about 220 hp, T8020 about 250, T8030 about 275, T8040 about 300, T8050 about 330 hp – with power boost for PTO and transport work. The engines are six-cylinders from the group – Cursor 9 of 8.7 litres by Iveco/FPT at 2,200 rpm, with common-rail injection and emission stage IIIA – the transmission the full powershift with 18 forward and 4 reverse speeds, the cab with suspended front axle and the IntelliView control system.
Read on 3 more paragraphs
The register lists 5 versions with 162.5 to 239 kW from six-cylinders of 8,268 to 8,849 cm³, torque from 913 to 1,067 Nm, unladen weights from 9,673 to 11,008 kg, a length of 5,829 mm, a width of 2,490 mm and a height of 3,331 mm, approved for diesel and biodiesel.
The T8000 is the tractor of arable farms in North America, Eastern Europe and Australia – heavy, long-stroke, with the wheelbase for wide tillage; its successor T8 came in 2011 with emission stage IIIB and SCR.
On used tractors, operating hours, engine and injection, powershift transmission (clutches, calibration), front-axle suspension, hydraulics and electronics, tyres and dual wheels count, as does parts supply through CNH, largely identical with the Case IH Magnum.
Sources: SpecCodex register, model data: New Holland T8000, New Holland Agriculture (Hersteller, Racine)
Technical data
Engine
| Fuel | Diesel/Biodieselcorrect |
|---|---|
| Power | 325 hp (239 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 1,348 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,849 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 144.5 mmcorrect |
| Compression ratio | 17.6correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,829 mmcorrect |
|---|---|
| Width | 2,490 mmcorrect |
| Height | 3,331 mmcorrect |
| Wheelbase | 3,078 mmcorrect |
| Ground clearance | 372 mmcorrect |
| Unladen weight | 11,008 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 19 V/4 R and 23 V/6 Rcorrect |
| Front tyres | 600/65 R 28 AScorrect |
| Rear tyres | 710/70 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 21.7 kW/t (239 kW / 11 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case New Holland T 8050 have?
The Case New Holland T 8050 delivers 325 hp.
How much does the Case New Holland T 8050 weigh?
The unladen weight is 11,008 kg.
What engine does the Case New Holland T 8050 have?
6 cylinders, 8,849 cm³ displacement, Diesel/Biodiesel.
How fast does the Case New Holland T 8050 go?
Top speed is 40 km/h.
What are the dimensions of the Case New Holland T 8050?
5,829 mm × 2,490 mm × 3,331 mm.
When was the Case New Holland T 8050 built?
Production years: 2007–2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
