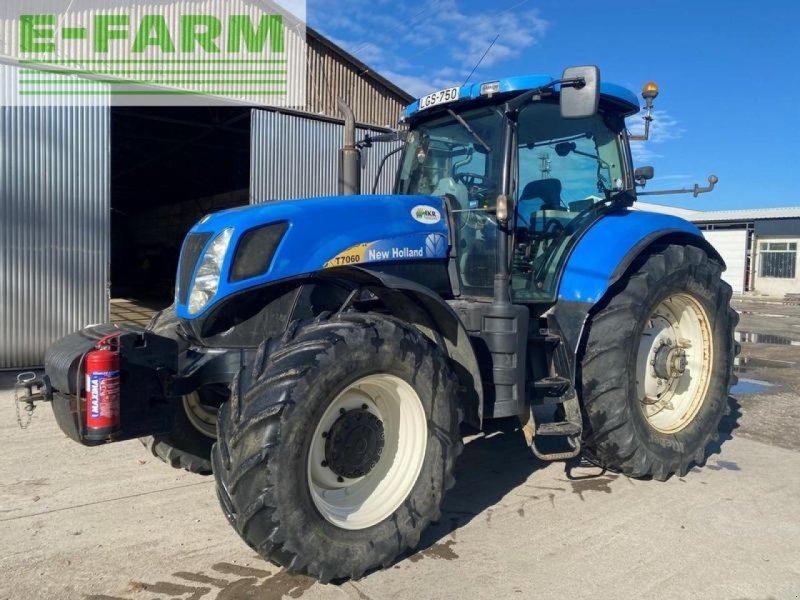

Case New Holland T 7060

Built: 2007–2011 · Series: T 7000 er-Baureihe

More machines from model year 2007

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The T 7060 from Case New Holland is part of the T 7000er series. Production: 2007–2011. The engine delivers 213 hp (156.7 kW), has 6 cylinders, with a displacement of 6,728 cm³. Rated speed is 2,200 rpm. The machine is 4,816 mm long, 2,135 mm wide and 3,045 mm high. The unladen weight is 8,200 kg. The wheelbase measures 2,884 mm. Ground clearance is 420 mm. Top speed is 40 km/h. Transmission: 18 V/6 R and 19 V/6 R. The engine is water-cooled. Tyres: front 600/65 R 28 AS, rear 710/70 R 38 AS. The fuel is Diesel/Biodiesel. Construction: unit construction (no separate frame). The T 7000 er-Baureihe series covers 4 models. Rated output within it ranges from 167 to 241 hp; the T 7060 sits in the upper part of that range with 213 hp. Its immediate neighbours are the T 7040 below it with 182 hp and the T 7050 above it with 241 hp. Unladen weight within it ranges from 8,055 to 8,200 kg; here the T 7060 sits at the top of that range with 8,200 kg. 84 Case New Holland models across 17 series are on record.

Case New Holland T7000 series – large tractors from Basildon: T 7030 to T 7060 with a six-cylinder, 6.7-litre displacement, 123 to 177 kW, diesel and biodiesel capable

The T7000 series is a register name from the Case New Holland (CNH) era for large tractors built at the British plant in Basildon. The four models T 7030, T 7040, T 7050 and T 7060 are staggered by rising power through the last two digits of their designation and all carry the same six-cylinder diesel engine with 6.7 litres of displacement that, according to the register, can run on both diesel and biodiesel.

Read on 3 more paragraphs

The register lists 4 versions with 122.8 to 177.3 kW from the shared six-cylinder with 6,728 cm³ displacement. Unladen weights range from 8,055 to 8,200 kg, lengths from 4,816 to 5,110 mm at a uniform width of 2,135 mm, and heights from 3,045 to 3,050 mm; the rated speed is uniformly 2,200 rpm.

With outputs up to 177 kW, the T7000 series counts among the large field tractors for farms with high draft-power needs, competing with comparable series from John Deere, Fendt and Massey Ferguson of the same era. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.

When buying used, the operating hours on the six-cylinder, the condition of the lift hydraulics and PTO, and the tightness of turbocharger and cooling system all matter, particularly after extended biodiesel use. Spare parts run through the Case IH and New Holland dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.

Sources: SpecCodex register, model data: Case New Holland T7000er-Baureihe, New Holland Agriculture (manufacturer)

Technical data

Engine

Fuel	Diesel/Biodieselcorrect
Power	213 hp (156.7 kW)correct
Rated speed	2,200 rpmcorrect
Cylinders	6correct
Displacement	6,728 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,816 mmcorrect
Width	2,135 mmcorrect
Height	3,045 mmcorrect
Wheelbase	2,884 mmcorrect
Ground clearance	420 mmcorrect
Unladen weight	8,200 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	18 V/6 R and 19 V/6 Rcorrect
Front tyres	600/65 R 28 AScorrect
Rear tyres	710/70 R 38 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19.1 kW/t (157 kW / 8.2 t)

Power class: Heavy (> 180 hp)

Stronger than 92% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case New Holland T 7060 have?

The Case New Holland T 7060 delivers 213 hp.

How much does the Case New Holland T 7060 weigh?

The unladen weight is 8,200 kg.

What engine does the Case New Holland T 7060 have?

6 cylinders, 6,728 cm³ displacement, Diesel/Biodiesel.

How fast does the Case New Holland T 7060 go?

Top speed is 40 km/h.

What are the dimensions of the Case New Holland T 7060?

4,816 mm × 2,135 mm × 3,045 mm.

When was the Case New Holland T 7060 built?

Production years: 2007–2011.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
