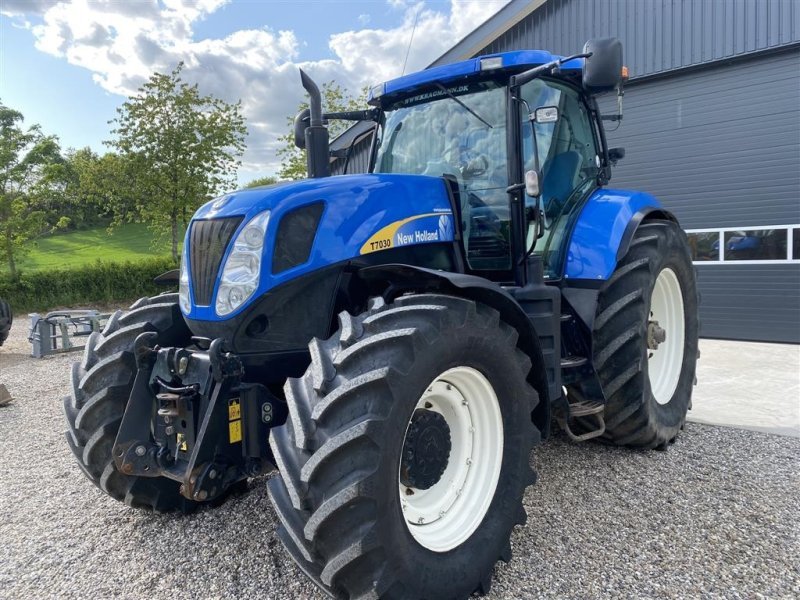

Case New Holland T 7030
Built: 2007–2011 · Series: T 7000 er-Baureihe
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case New Holland T7000 series – large tractors from Basildon: T 7030 to T 7060 with a six-cylinder, 6.7-litre displacement, 123 to 177 kW, diesel and biodiesel capable
The T7000 series is a register name from the Case New Holland (CNH) era for large tractors built at the British plant in Basildon. The four models T 7030, T 7040, T 7050 and T 7060 are staggered by rising power through the last two digits of their designation and all carry the same six-cylinder diesel engine with 6.7 litres of displacement that, according to the register, can run on both diesel and biodiesel.
Read on 3 more paragraphs
The register lists 4 versions with 122.8 to 177.3 kW from the shared six-cylinder with 6,728 cm³ displacement. Unladen weights range from 8,055 to 8,200 kg, lengths from 4,816 to 5,110 mm at a uniform width of 2,135 mm, and heights from 3,045 to 3,050 mm; the rated speed is uniformly 2,200 rpm.
With outputs up to 177 kW, the T7000 series counts among the large field tractors for farms with high draft-power needs, competing with comparable series from John Deere, Fendt and Massey Ferguson of the same era. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.
When buying used, the operating hours on the six-cylinder, the condition of the lift hydraulics and PTO, and the tightness of turbocharger and cooling system all matter, particularly after extended biodiesel use. Spare parts run through the Case IH and New Holland dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.
Sources: SpecCodex register, model data: Case New Holland T7000er-Baureihe, New Holland Agriculture (manufacturer)
Technical data
Engine
| Fuel | Diesel/Biodieselcorrect |
|---|---|
| Power | 167 hp (122.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,110 mmcorrect |
|---|---|
| Width | 2,135 mmcorrect |
| Height | 3,050 mmcorrect |
| Wheelbase | 2,884 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 8,115 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/6 R and 19 V/6 Rcorrect |
| Front tyres | 600/65 R 28 AScorrect |
| Rear tyres | 710/70 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.1 kW/t (123 kW / 8.1 t)
Power class: Large (100–180 hp)
Stronger than 87% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case New Holland T 7030 have?
The Case New Holland T 7030 delivers 167 hp.
How much does the Case New Holland T 7030 weigh?
The unladen weight is 8,115 kg.
What engine does the Case New Holland T 7030 have?
6 cylinders, 6,728 cm³ displacement, Diesel/Biodiesel.
How fast does the Case New Holland T 7030 go?
Top speed is 40 km/h.
What are the dimensions of the Case New Holland T 7030?
5,110 mm × 2,135 mm × 3,050 mm.
When was the Case New Holland T 7030 built?
Production years: 2007–2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
