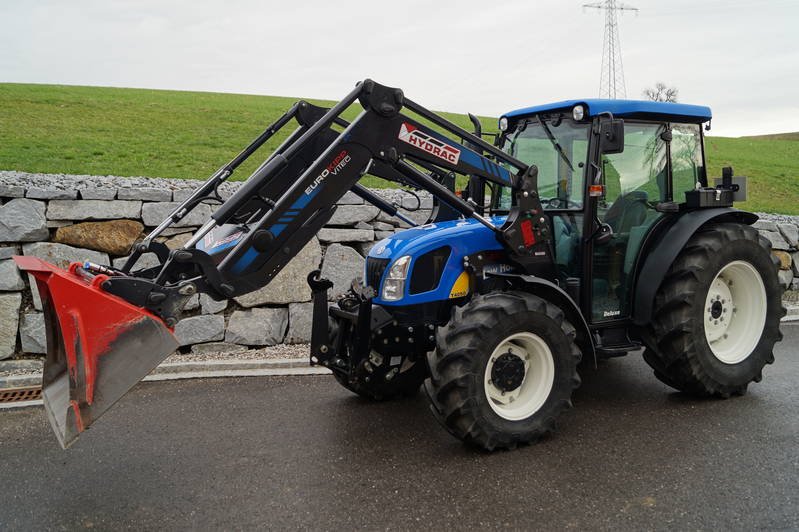

Case New Holland T-4050

Built: 2008–2014 · Series: T-4000 er-Baureihe

More machines from model year 2008

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The T-4050 from Case New Holland is part of the T-4000er series. Production: 2008–2014. The engine delivers 97 hp (71.3 kW), has 4 cylinders, with a displacement of 4,485 cm³. Torque is 413 Nm. Rated speed is 2,300 rpm. The machine is 3,580 mm long, 1,867 mm wide and 2,340 mm high. The unladen weight is 3,760 kg. The wheelbase measures 2,185 mm. Ground clearance is 380 mm. Top speed is 30 km/h. Transmission: 16 V/16 R or 32 V/16 R. The engine is water-cooled. Tyres: front 380 R 20 AS, rear 480 R 30 AS. The fuel is Diesel/Biodiesel. The bore measures 104 mm. The stroke is 132 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,100 rpm. Construction: unit construction (no separate frame). The T-4000 er-Baureihe series covers 4 models. Rated output within it ranges from 65 to 97 hp; the T-4050 sits at the top of that range with 97 hp. Its immediate neighbours are the T-4040 below it with 86 hp. Unladen weight within it ranges from 3,075 to 3,760 kg; here the T-4050 sits at the top of that range with 3,760 kg. 84 Case New Holland models across 17 series are on record.

Case New Holland T4000 series – tractors from Jesi: T-4020 to T-4050 with a four-cylinder diesel, 3.2 to 4.5-litre displacement, 48 to 71 kW, diesel and biodiesel capable

The T4000 series is a register name from the Case New Holland (CNH) era for tractors built at the Italian plant in Jesi. The four models T-4020, T-4030, T-4040 and T-4050 are staggered by rising power through the last two digits of their designation and all carry a four-cylinder diesel engine that, according to the register, can run on both diesel and biodiesel.

Read on 3 more paragraphs

The register lists 4 versions with 47.8 to 71.3 kW from four-cylinders with 3,202 to 4,485 cm³ displacement. Unladen weights range from 3,075 to 3,760 kg, lengths from 3,580 to 3,724 mm at a uniform width of 1,867 mm and uniform height of 2,340 mm; torque lies between 276 and 413 Nm at a uniform rated speed of 2,300 rpm.

As compact to mid-size field tractors, the T4000 series targets small and medium-sized farms as well as speciality crop operations, competing with comparable series from Deutz-Fahr, Massey Ferguson and John Deere. It is used mainly for tillage, sowing, transport work and powering trailed harvesting machinery.

When buying used, the operating hours on the four-cylinder, the condition of the lift hydraulics and PTO, and the tightness of engine and transmission all matter, particularly after extended biodiesel use. Spare parts run through the Case IH and New Holland dealer network. It is also worth checking the on-board electronics, cab mounting and seat suspension, and tyre tread depth.

Sources: SpecCodex register, model data: Case New Holland T4000er-Baureihe, New Holland Agriculture (manufacturer)

Technical data

Engine

Fuel	Diesel/Biodieselcorrect
Power	97 hp (71.3 kW)correct
Rated speed	2,300 rpmcorrect
Torque	413 Nmcorrect
Speed at max. torque	1,100 rpmcorrect
Cylinders	4correct
Displacement	4,485 cm³correct
Bore	104 mmcorrect
Stroke	132 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,580 mmcorrect
Width	1,867 mmcorrect
Height	2,340 mmcorrect
Wheelbase	2,185 mmcorrect
Ground clearance	380 mmcorrect
Unladen weight	3,760 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16 V/16 R or 32 V/16 Rcorrect
Front tyres	380 R 20 AScorrect
Rear tyres	480 R 30 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19 kW/t (71 kW / 3.8 t)

Power class: Universal (40–100 hp)

Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case New Holland T-4050 have?

The Case New Holland T-4050 delivers 97 hp.

How much does the Case New Holland T-4050 weigh?

The unladen weight is 3,760 kg.

What engine does the Case New Holland T-4050 have?

4 cylinders, 4,485 cm³ displacement, Diesel/Biodiesel.

How fast does the Case New Holland T-4050 go?

Top speed is 30 km/h.

What are the dimensions of the Case New Holland T-4050?

3,580 mm × 1,867 mm × 2,340 mm.

When was the Case New Holland T-4050 built?

Production years: 2008–2014.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
