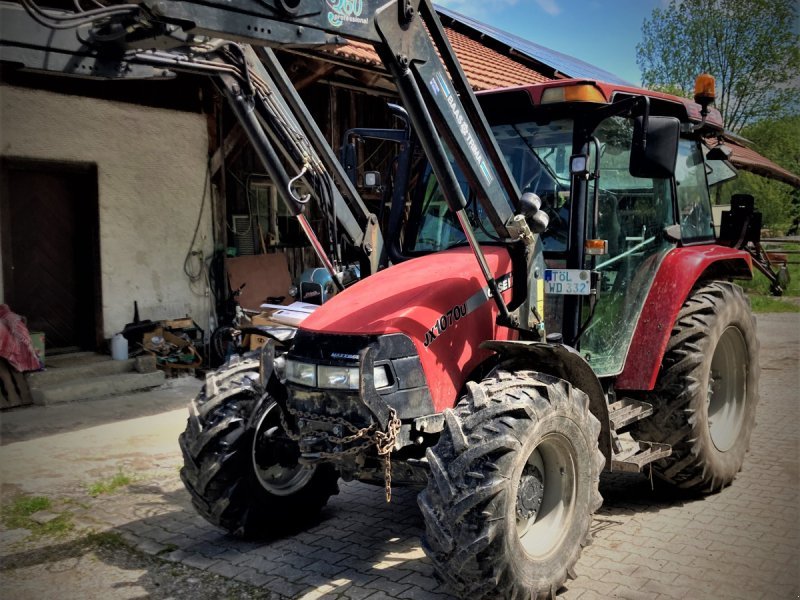

Case IH JX 1070 U (A)

Built: 2004–2008 · Series: Zweite JXU-Baureihe

More machines from model year 2004

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH JX 1070 U (A) belongs to the Zweite JXU series. Production: 2004–2008. The engine delivers 72 hp (53 kW), has 4 cylinders, with a displacement of 4,485 cm³. Torque is 262 Nm. Rated speed is 2,500 rpm. The machine is 3,925 mm long, 2,012 mm wide and 2,540 mm high. The unladen weight is 3,530 kg. The wheelbase measures 2,342 mm. Ground clearance is 376 mm. Top speed is 30 km/h. Transmission: 12 V/12 R, 20 V/12 R and 24 V/24 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 11.2 R 24 AS), rear 16.9 R 30 AS. The fuel is Diesel/RME. The bore measures 104 mm. The stroke is 132 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,384 rpm. Construction: unit construction (no separate frame). The Zweite JXU-Baureihe series covers 4 models. Rated output within it ranges from 72 to 100 hp; the JX 1070 U (A) sits at the bottom of that range with 72 hp. Its immediate neighbours are the JX 1080 U (A) above it with 82 hp. Unladen weight within it ranges from 3,530 to 3,960 kg; here the JX 1070 U (A) sits at the bottom of that range with 3,530 kg. 1222 Case IH models across 76 series are on record.

Case IH JX U (second generation) – successor with four-digit type numbers: uniform 4,485 cm³ displacement, 53 to 73 kW, JX 1070 U to JX 1100 U models

The second Case IH JX U series replaced the earlier JX U generation and was likewise designed for utility use. The type designation switched to four-digit numbers with the JX prefix and the U (A) suffix; the register covers the JX 1070 U, JX 1080 U, JX 1090 U and JX 1100 U models with four-cylinder diesel engines also capable of running on biodiesel (RME).

Read on 3 more paragraphs

The register holds 4 versions rated at 53 to 73.5 kW, with four-cylinder engines of a uniform 4,485 cm³. Weights range from 3,530 to 3,960 kg, with a length of 3,925 mm and a width of 2,012 mm. Heights fall between 2,530 and 2,615 mm, torque between 262 and 293 Nm at an engine speed of 2,500 rpm.

With the same 4,485 cm³ displacement across all four models, the power difference came mainly from injection and boost tuning; the series continued to target farms in the lower to middle power segment wanting a compact all-round tractor for field and yard work.

When buying used, check the engine and injection system, clutch and gearbox, and the hydraulic system; with biodiesel use, take a close look at seals and fuel lines. Rust on the mudguards and cab frame and the condition of the tyres are further checkpoints; spare parts are available through the Case IH dealer network. Compared with the earlier JX U generation, cab layout and wheelbase changed little, so the range remained compact and manoeuvrable in tight yards and narrow lanes.

Sources: SpecCodex register, model data: Case IH Zweite JXU-Baureihe, Case IH

Technical data

Engine

Fuel	Diesel/RMEcorrect
Power	72 hp (53 kW)correct
Rated speed	2,500 rpmcorrect
Torque	262 Nmcorrect
Speed at max. torque	1,384 rpmcorrect
Cylinders	4correct
Displacement	4,485 cm³correct
Bore	104 mmcorrect
Stroke	132 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,925 mmcorrect
Width	2,012 mmcorrect
Height	2,540 mmcorrect
Wheelbase	2,342 mmcorrect
Ground clearance	376 mmcorrect
Unladen weight	3,530 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12 V/12 R, 20 V/12 R and 24 V/24 Rcorrect
Front tyres	7.50-16 ASF (A: 11.2 R 24 AS)correct
Rear tyres	16.9 R 30 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 15 kW/t (53 kW / 3.5 t)

Power class: Universal (40–100 hp)

Stronger than 50% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH JX 1070 U (A) have?

The Case IH JX 1070 U (A) delivers 72 hp.

How much does the Case IH JX 1070 U (A) weigh?

The unladen weight is 3,530 kg.

What engine does the Case IH JX 1070 U (A) have?

4 cylinders, 4,485 cm³ displacement, Diesel/RME.

How fast does the Case IH JX 1070 U (A) go?

Top speed is 30 km/h.

What are the dimensions of the Case IH JX 1070 U (A)?

3,925 mm × 2,012 mm × 2,540 mm.

When was the Case IH JX 1070 U (A) built?

Production years: 2004–2008.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
