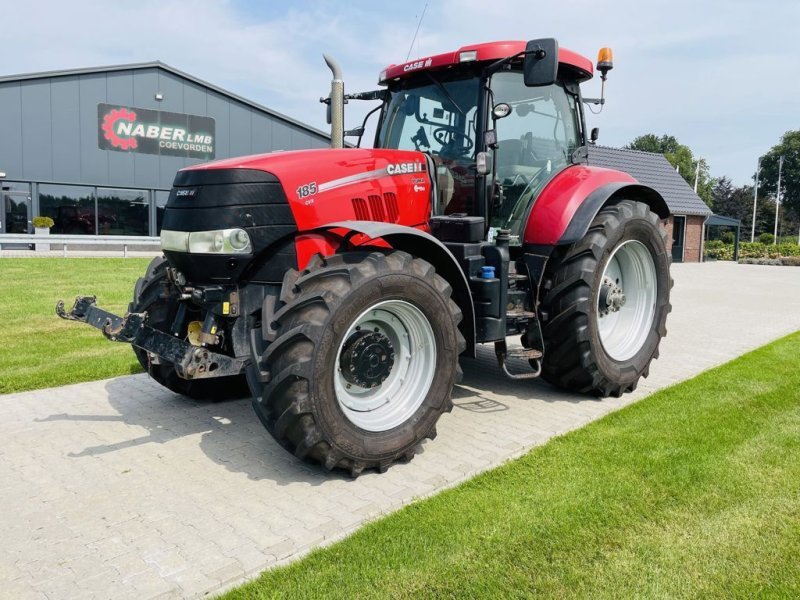

Case IH PUMA 185 PS or CVT (2014-2017) 4WD – specifications

Series: Puma

The Case IH Puma 185 PS or CVT is a heavy-duty agricultural tractor from the Puma series, which was introduced in 2007 as the successor to the CS and MXM series. The model described here originates from the production period between 2014 and 2017 and is powered by a six-cylinder engine from Case IH FPT. The engine has a displacement of 6,700.7 cm³ and is equipped with turbocharging and air-to-air intercooling. Designed as a four-wheel-drive variant, this model is intended for operations requiring high drawbar pull and traction across varying soil conditions.

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The technical equipment includes a powershift transmission with 18 forward gears and 6 reverse gears. This number of gears allows for fine gradation of travel speeds, which is beneficial when adapting to various working speeds in the field. The lift capacity of 6,804 kg determines the maximum load for rear-mounted implements. A high value in this category permits the use of heavy equipment such as large plows or seeders without requiring additional ballast on the front weight, thereby improving the tractor's balance during operation.

Within the recorded Puma series, whose power spectrum ranges from 93 to 222 kW, this model is positioned in the upper power range. The series shares its technical base with the New Holland T7000 and consistently uses six-cylinder engines from FPT Industrial. While later model years of the series increasingly relied on continuously variable CVX transmissions, the model described here remains an option with a conventional powershift transmission for users who prefer defined gear selection. The service weight of the recorded models across the entire series ranges from 6,015 to 10,000 kg.

Case IH Puma – Six-Cylinder Tractor Between Maxxum and Magnum: Concept, Technology, Generations, 93.4 to 222 kW and Operating Weight from 6,015 to 10,000 kg

Case IH launched the Puma series in 2007 to replace the CS and MXM lines. The tractors share their platform with the New Holland T7000 and use six-cylinder FPT Industrial engines displacing 6,700 to 6,728 cm³. Registered engine output ranges from 93 to 222 kW, while the models listed with a horsepower rating span 127 to 225 hp.

Read on 3 more paragraphs

Case IH offered the Puma with either a conventional powershift gearbox or the stepless CVX transmission; in later model years CVX became the series' standard. Recorded operating weight runs from 6,015 to 10,000 kg, wheelbase from 2,786 to 2,884 mm, and the rated travel speed of the listed variants is 40 km/h.

Within the Case IH line-up the Puma sits between the smaller Maxxum and the larger Magnum, aimed at mixed farms combining arable work, grassland and transport duties. Production takes place at the Basildon plant in the UK. Buyers looking at a used Puma should check the gearbox type, emissions stage and equipment level, since these vary considerably across the model's long production run.

With rated outputs from 93.4 to 222 kW, the Puma falls within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. FPT Industrial, the engine maker within the CNH Industrial group, still manufactures engines and spare parts for these model years.

Sources: SpecCodex register, model data: Case IH Puma, Case IH

Technical data

Engine

Engine makeCase IH FPTcorrect
Engine modelPuma 185 PS or CVT (2014-2017)correct
Cylinders6correct
Displacement6,700.7 cm³correct
AspirationTurbocharged, air-to-air aftercooledcorrect

Drivetrain and chassis

Gearbox typeFull powershift transmissioncorrect
Forward gears18correct
Reverse gears6correct

Working data

Lifting capacity6,804 kgcorrect

Frequently asked questions

What engine does the Case IH PUMA 185 PS or CVT (2014-2017) have?

The Case IH PUMA 185 PS or CVT (2014-2017) has 6 cylinders and 6,700.7 cm³ displacement.

How much does the rear linkage of the Case IH PUMA 185 PS or CVT (2014-2017) lift?

The rear linkage of the Case IH PUMA 185 PS or CVT (2014-2017) lifts 6,804 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
