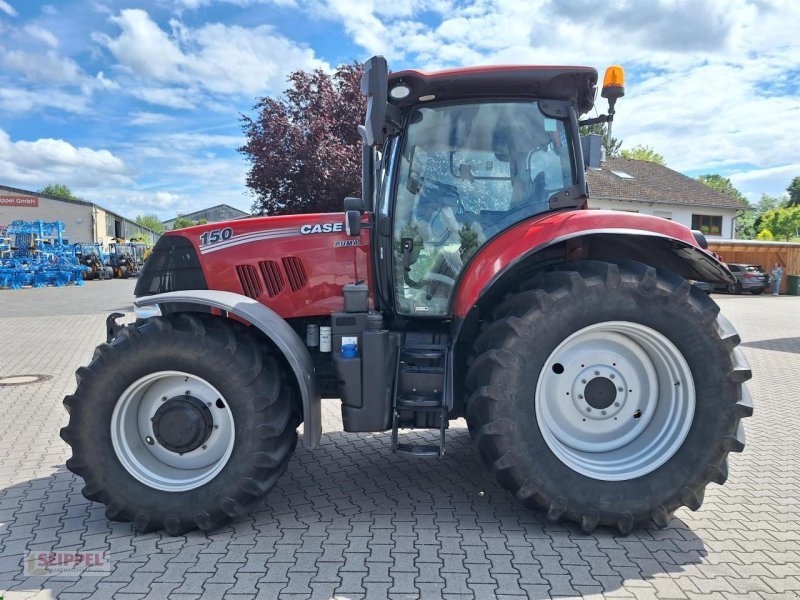

Case IH PUMA 150 PS or CVT (2014-2017) 4WD – specifications
Series: Puma
The Case IH Puma 150 PS or CVT (2014-2017) is a four-wheel-drive tractor from the Puma series, which Case IH introduced in 2007 as the successor to the CS and MXM series. This specific model was produced between 2014 and 2017 and utilizes the technical platform shared with the New Holland T7000. The tractor is powered by a six-cylinder engine manufactured by Case IH FPT. The engine has a displacement of 6,700.7 cm³ and is equipped with a turbocharger and an air-to-air intercooler. This design ensures high power density combined with good thermal efficiency, which is crucial for sustained use in agriculture.
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The powershift transmission offers 18 forward gears and 6 reverse gears. This number of gears allows for fine speed gradation, which is advantageous when pulling mounted implements or transporting heavy loads on the road. The lifting capacity of 3,651 kg allows for lifting and holding heavy rear-mounted implements without necessarily requiring additional front weights. With a cab height of 3,155.2 mm, the tractor provides sufficient headroom for the driver, reducing fatigue during long working days in the field. The four-wheel steering ensures good traction on uneven terrain.
Within the recorded Puma range with engine outputs from 127 to 225 hp, this model is positioned in the lower to mid-power range. The series includes models with operating weights between 6,015 and 10,000 kg and wheelbases ranging from 2,786 to 2,884 mm. Case IH offered the Puma series with both a conventional powershift transmission and the continuously variable CVX transmission, with CVX technology becoming standard in later model years. The Puma 150 PS or CVT (2014-2017) is designed for applications requiring solid drawbar pull and balanced weight distribution for mixed field and transport work.
Case IH Puma – Six-Cylinder Tractor Between Maxxum and Magnum: Concept, Technology, Generations, 93.4 to 222 kW and Operating Weight from 6,015 to 10,000 kg
Case IH launched the Puma series in 2007 to replace the CS and MXM lines. The tractors share their platform with the New Holland T7000 and use six-cylinder FPT Industrial engines displacing 6,700 to 6,728 cm³. Registered engine output ranges from 93 to 222 kW, while the models listed with a horsepower rating span 127 to 225 hp.
Read on 3 more paragraphs
Case IH offered the Puma with either a conventional powershift gearbox or the stepless CVX transmission; in later model years CVX became the series' standard. Recorded operating weight runs from 6,015 to 10,000 kg, wheelbase from 2,786 to 2,884 mm, and the rated travel speed of the listed variants is 40 km/h.
Within the Case IH line-up the Puma sits between the smaller Maxxum and the larger Magnum, aimed at mixed farms combining arable work, grassland and transport duties. Production takes place at the Basildon plant in the UK. Buyers looking at a used Puma should check the gearbox type, emissions stage and equipment level, since these vary considerably across the model's long production run.
With rated outputs from 93.4 to 222 kW, the Puma falls within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. FPT Industrial, the engine maker within the CNH Industrial group, still manufactures engines and spare parts for these model years.
Sources: SpecCodex register, model data: Case IH Puma, Case IH
Technical data
Engine
| Engine make | Case IH FPTcorrect |
|---|---|
| Engine model | Puma 150 PS or CVT (2014-2017)correct |
| Cylinders | 6correct |
| Displacement | 6,700.7 cm³correct |
| Aspiration | Turbocharged, air-to-air aftercooledcorrect |
Drivetrain and chassis
| Gearbox type | Full powershift transmissioncorrect |
|---|---|
| Forward gears | 18correct |
| Reverse gears | 6correct |
Working data
| Lifting capacity | 3,651 kgcorrect |
|---|
Other data
| Cab height | 3,155.2 mmcorrect |
|---|
Frequently asked questions
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
