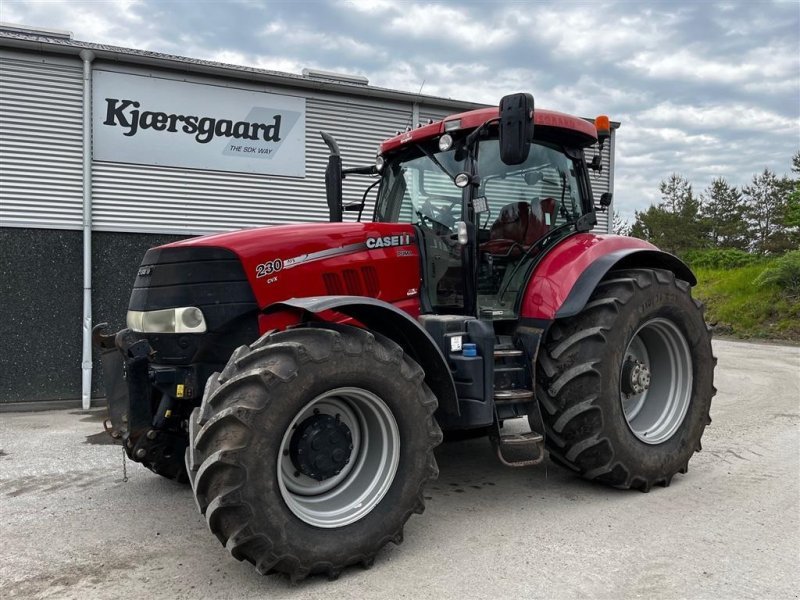

Case IH Puma 230CVX
Built: 2015 · Series: Puma
More machines from model year 2015
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Puma – Six-Cylinder Tractor Between Maxxum and Magnum: Concept, Technology, Generations, 93.4 to 222 kW and Operating Weight from 6,015 to 10,000 kg
Case IH launched the Puma series in 2007 to replace the CS and MXM lines. The tractors share their platform with the New Holland T7000 and use six-cylinder FPT Industrial engines displacing 6,700 to 6,728 cm³. Registered engine output ranges from 93 to 222 kW, while the models listed with a horsepower rating span 127 to 225 hp.
Read on 3 more paragraphs
Case IH offered the Puma with either a conventional powershift gearbox or the stepless CVX transmission; in later model years CVX became the series' standard. Recorded operating weight runs from 6,015 to 10,000 kg, wheelbase from 2,786 to 2,884 mm, and the rated travel speed of the listed variants is 40 km/h.
Within the Case IH line-up the Puma sits between the smaller Maxxum and the larger Magnum, aimed at mixed farms combining arable work, grassland and transport duties. Production takes place at the Basildon plant in the UK. Buyers looking at a used Puma should check the gearbox type, emissions stage and equipment level, since these vary considerably across the model's long production run.
With rated outputs from 93.4 to 222 kW, the Puma falls within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. FPT Industrial, the engine maker within the CNH Industrial group, still manufactures engines and spare parts for these model years.
Sources: SpecCodex register, model data: Case IH Puma, Case IH
Technical data
Engine
| Power | 198 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
Dimensions and weights
| Length | 5,200 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Unladen weight | 8,750 kgcorrect |
| Gross vehicle weight | 13,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 22.6 kW/t (198 kW / 8.8 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Puma 230CVX have?
The Case IH Puma 230CVX delivers 198 kW.
How much does the Case IH Puma 230CVX weigh?
The unladen weight is 8,750 kg.
What is the gross vehicle weight of the Case IH Puma 230CVX?
13,000 kg.
What engine does the Case IH Puma 230CVX have?
6 cylinders, 6,728 cm³ displacement.
What are the dimensions of the Case IH Puma 230CVX?
5,200 mm × 2,600 mm.
When was the Case IH Puma 230CVX built?
Production years: 2015.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
