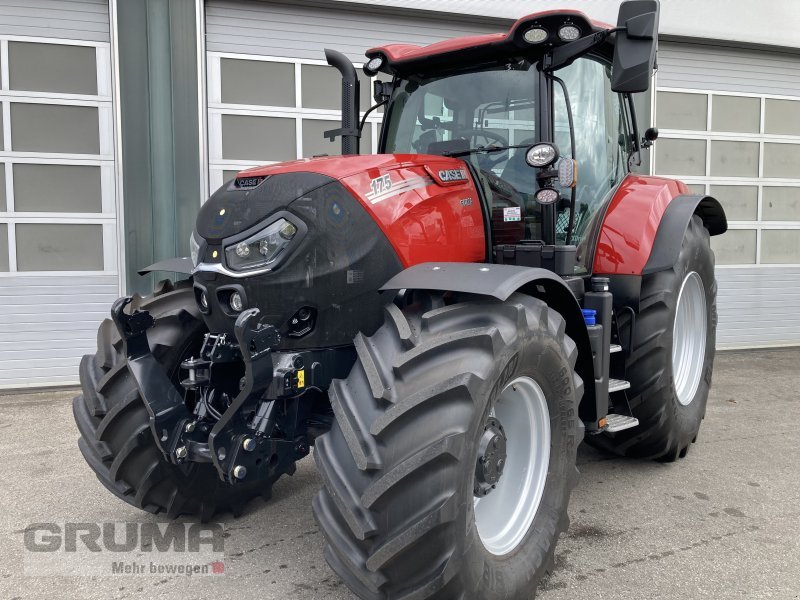

Case IH PUMA 175 CVX – specifications
Built: 2017-2025 · Series: Puma
The Puma series from Case IH includes the PUMA 175 CVX. Production: 2017-2025. The engine delivers 151 kW, has 6 cylinders, with a displacement of 6,728 cm³. The machine is 5,046 mm long and 2,550 mm wide. The unladen weight is 7,180 kg. The gross vehicle weight is 11,500 kg. The Puma series covers 83 models. Rated output within it ranges from 93.4 to 222 kW; the PUMA 175 CVX sits in the middle of that range with 151 kW. Its immediate neighbours are the PUMA 165-BH-BHGCFB-4X4/288 below it with 150 kW and the PUMA 165 CVX above it with 154 kW. Unladen weight within it ranges from 6,015 to 10,000 kg; here the PUMA 175 CVX sits in the lower part of that range with 7,180 kg. 1222 Case IH models across 76 series are on record.
Data for the version built 2017-2025 · Data origin: Official register · sources
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Puma – Six-Cylinder Tractor Between Maxxum and Magnum: Concept, Technology, Generations, 93.4 to 222 kW and Operating Weight from 6,015 to 10,000 kg
Case IH launched the Puma series in 2007 to replace the CS and MXM lines. The tractors share their platform with the New Holland T7000 and use six-cylinder FPT Industrial engines displacing 6,700 to 6,728 cm³. Registered engine output ranges from 93 to 222 kW, while the models listed with a horsepower rating span 127 to 225 hp.
Read on 3 more paragraphs
Case IH offered the Puma with either a conventional powershift gearbox or the stepless CVX transmission; in later model years CVX became the series' standard. Recorded operating weight runs from 6,015 to 10,000 kg, wheelbase from 2,786 to 2,884 mm, and the rated travel speed of the listed variants is 40 km/h.
Within the Case IH line-up the Puma sits between the smaller Maxxum and the larger Magnum, aimed at mixed farms combining arable work, grassland and transport duties. Production takes place at the Basildon plant in the UK. Buyers looking at a used Puma should check the gearbox type, emissions stage and equipment level, since these vary considerably across the model's long production run.
With rated outputs from 93.4 to 222 kW, the Puma falls within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. FPT Industrial, the engine maker within the CNH Industrial group, still manufactures engines and spare parts for these model years.
Sources: SpecCodex register, model data: Case IH Puma, Case IH
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| PUMA 175 CVX 4WD | 2017 | 151 | e1*2003/37*0583*01 | Official register |
| ● PUMA 175 CVX | 2017-2025 | 151 | e3*97/68QA*2010/26*1071 | Official register |
Technical data
Engine
| Power | 151 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
Dimensions and weights
| Length | 5,046 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 7,180 kgcorrect |
| Gross vehicle weight | 11,500 kgcorrect |
Frequently asked questions
Used listings – figures from public listings
Between June and July 2026, speccodex recorded 3 public used-machine listings for Case IH PUMA 175 CVX on one platform. Years of manufacture ranged from 2016 to 2022.
Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 18 Nov 2026.
Area: Machines
Where this model stands
Power-to-weight ratio: 21 kW/t (151 kW / 7.2 t)
Power class: Heavy (> 180 hp)
Stronger than 92% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
