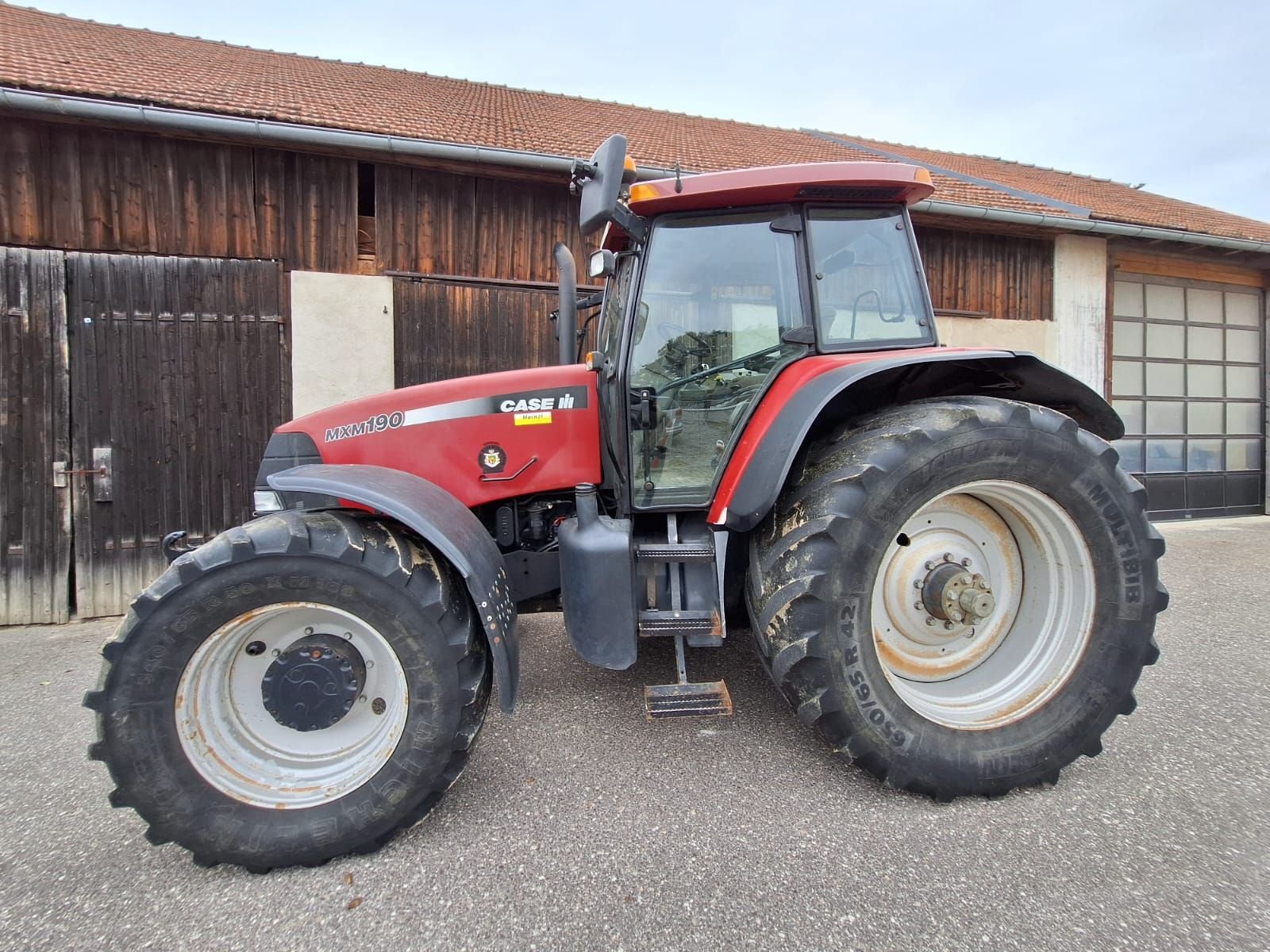

Case IH MXM 190-M-MFCF-2-4X4/2820
Built: 2003 · Series: MXM
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH MXM Maxxum – Large Mid-Range Before the Puma, 2002 to 2007, with Six-Cylinder Engines, 96.4 to 170 kW and Operating Weight from 5,480 to 8,700 kg
The MXM series carried the Maxxum suffix and formed Case IH's large mid-range class from 2002 to 2007, before being replaced by the newly introduced Puma series. According to the register, output of the recorded models ranges from 96.4 to 170 kW, using six-cylinder engines with displacement from 7,480 to 7,485 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 5,480 to 8,700 kg, wheelbase from 2,723 to 2,818 mm, and top speed of the listed models is 40 km/h. The MXM 190 designation marked the most powerful version within the series.
The MXM series sat above the smaller MXU series and covered the needs of large arable farms, before Case IH introduced a new generation with the Puma series in 2007. For a used MXM model, check the emissions stage and the condition of the powershift stages.
With rated outputs from 96.4 to 170 kW, the MXM series fell within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for heavy implements. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, even though the MXM itself was long ago superseded in the line-up by the very differently engineered Puma series.
Sources: SpecCodex register, model data: Case IH MXM Maxxum, Case IH
Technical data
Engine
| Power | 170 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 7,480 cm³correct |
Dimensions and weights
| Length | 4,840 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 7,980 kgcorrect |
| Gross vehicle weight | 12,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 21.3 kW/t (170 kW / 8 t)
Power class: Heavy (> 180 hp)
Stronger than 94% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MXM 190-M-MFCF-2-4X4/2820 have?
The Case IH MXM 190-M-MFCF-2-4X4/2820 delivers 170 kW.
How much does the Case IH MXM 190-M-MFCF-2-4X4/2820 weigh?
The unladen weight is 7,980 kg.
What is the gross vehicle weight of the Case IH MXM 190-M-MFCF-2-4X4/2820?
12,000 kg.
What engine does the Case IH MXM 190-M-MFCF-2-4X4/2820 have?
6 cylinders, 7,480 cm³ displacement.
What are the dimensions of the Case IH MXM 190-M-MFCF-2-4X4/2820?
4,840 mm × 2,550 mm.
When was the Case IH MXM 190-M-MFCF-2-4X4/2820 built?
Production years: 2003.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
