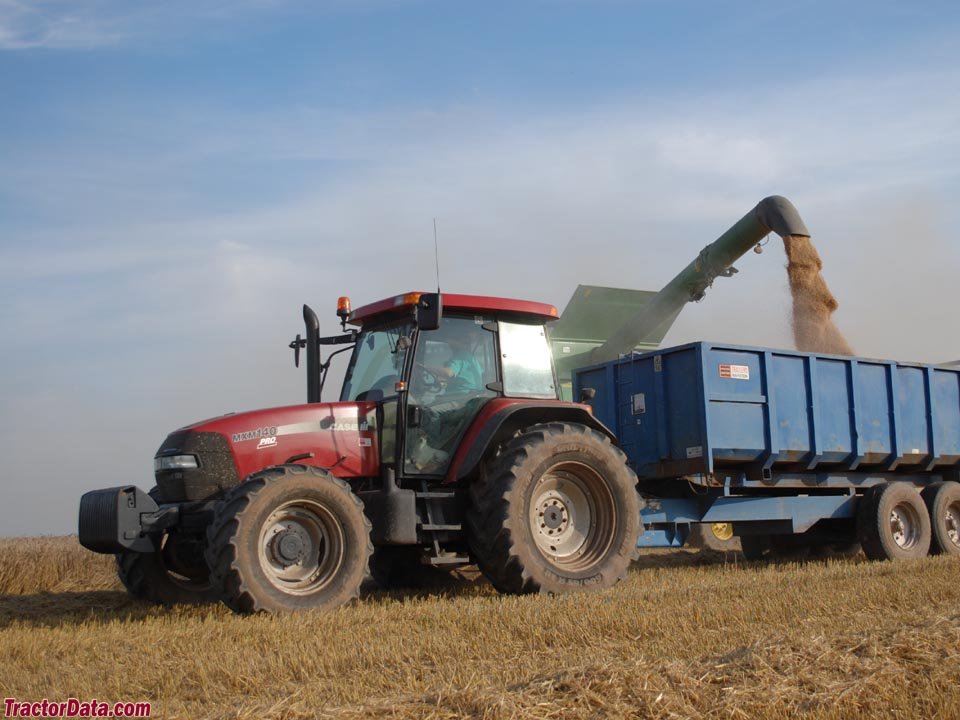

Case IH MXM 140
Built: 2003-2003 · Series: MXM
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH MXM 140 belongs to the MXM series; it rolled off the line as a tractor in 2003. Power comes from a six-cylinder engine; from 7.5 litres it draws 106 kW.
It is 2.40 m wide. Unladen weight is 6,350 kg.
Within the range, rated power spans from 96.4 to 170 kW; with 106 kW, the MXM 140 sits in the lower third. Directly alongside are the MXM 140 MAXXUM with 106 kW below and the MXM 155 MAXXUM with 114 kW above.
Case IH MXM Maxxum – Large Mid-Range Before the Puma, 2002 to 2007
The MXM series carried the Maxxum suffix and formed Case IH's large mid-range class from 2002 to 2007, before being replaced by the newly introduced Puma series. According to the register, output of the recorded models ranges from 96.4 to 170 kW, using six-cylinder engines with displacement from 7,480 to 7,485 cm³.
Read on 2 more paragraphs
Recorded operating weight runs from 5,480 to 8,700 kg, wheelbase from 2,723 to 2,818 mm, and top speed of the listed models is 40 km/h. The MXM 190 designation marked the most powerful version within the series.
The MXM series sat above the smaller MXU series and covered the needs of large arable farms, before Case IH introduced a new generation with the Puma series in 2007. For a used MXM model, check the emissions stage and the condition of the powershift stages.
Technical data
Engine
| Power | 144 hp (106 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 569 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,485 cm³correct |
Dimensions and weights
| Length | 4,692 mmcorrect |
|---|---|
| Width | 2,400 mmcorrect |
| Height | 2,997 mmcorrect |
| Wheelbase | 2,723 mmcorrect |
| Unladen weight | 6,350 kgcorrect |
| Gross vehicle weight | 9,000 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/ 6 R and 28 V/ 12 Rcorrect |
|---|
Working data
| Fuel tank capacity | 285 lcorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/540E rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.7 kW/t (106 kW / 6.3 t)
Power class: Large (100–180 hp)
Stronger than 82% of the tractors in the register — out of 15,260 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MXM 140 have?
The Case IH MXM 140 delivers 144 hp.
How much does the Case IH MXM 140 weigh?
The unladen weight is 6,350 kg.
What is the gross vehicle weight of the Case IH MXM 140?
9,000 kg.
What engine does the Case IH MXM 140 have?
6 cylinders, 7,485 cm³ displacement.
What are the dimensions of the Case IH MXM 140?
4,692 mm × 2,400 mm × 2,997 mm.
When was the Case IH MXM 140 built?
Production years: 2003.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
