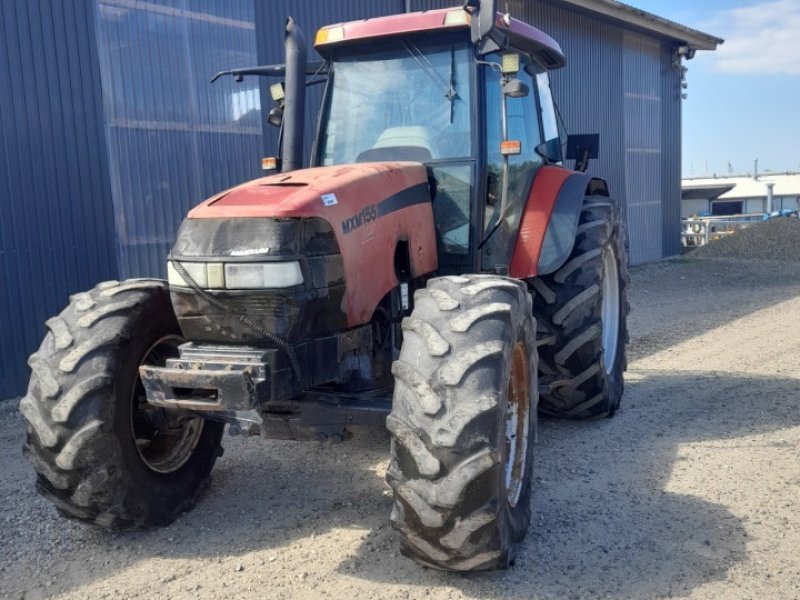

Case IH MXM 155
Series: MXM
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH MXM Maxxum – Large Mid-Range Before the Puma, 2002 to 2007, with Six-Cylinder Engines, 96.4 to 170 kW and Operating Weight from 5,480 to 8,700 kg
The MXM series carried the Maxxum suffix and formed Case IH's large mid-range class from 2002 to 2007, before being replaced by the newly introduced Puma series. According to the register, output of the recorded models ranges from 96.4 to 170 kW, using six-cylinder engines with displacement from 7,480 to 7,485 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 5,480 to 8,700 kg, wheelbase from 2,723 to 2,818 mm, and top speed of the listed models is 40 km/h. The MXM 190 designation marked the most powerful version within the series.
The MXM series sat above the smaller MXU series and covered the needs of large arable farms, before Case IH introduced a new generation with the Puma series in 2007. For a used MXM model, check the emissions stage and the condition of the powershift stages.
With rated outputs from 96.4 to 170 kW, the MXM series fell within ISO 730 Category III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for heavy implements. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, even though the MXM itself was long ago superseded in the line-up by the very differently engineered Puma series.
Sources: SpecCodex register, model data: Case IH MXM Maxxum, Case IH
Technical data
Engine
| Power | 155 hp (114 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 627 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,480 cm³correct |
Dimensions and weights
| Length | 4,692 mmcorrect |
|---|---|
| Width | 2,350 mmcorrect |
| Height | 2,997 mmcorrect |
| Wheelbase | 2,723 mmcorrect |
| Unladen weight | 6,320 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/ 6 R and 28 V/ 12 Rcorrect |
|---|
Working data
| Fuel tank capacity | 285 lcorrect |
|---|
Other data
| Linkage category | Cat II/IIINcorrect |
|---|---|
| PTO speed | 540/540E rpmcorrect |
Where this model stands
Power-to-weight ratio: 18 kW/t (114 kW / 6.3 t)
Power class: Large (100–180 hp)
Stronger than 84% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MXM 155 have?
The Case IH MXM 155 delivers 155 hp.
How much does the Case IH MXM 155 weigh?
The unladen weight is 6,320 kg.
What engine does the Case IH MXM 155 have?
6 cylinders, 7,480 cm³ displacement.
What are the dimensions of the Case IH MXM 155?
4,692 mm × 2,350 mm × 2,997 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
