Case IH 4240 – specifications
Series: Other models
Build year not documented · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

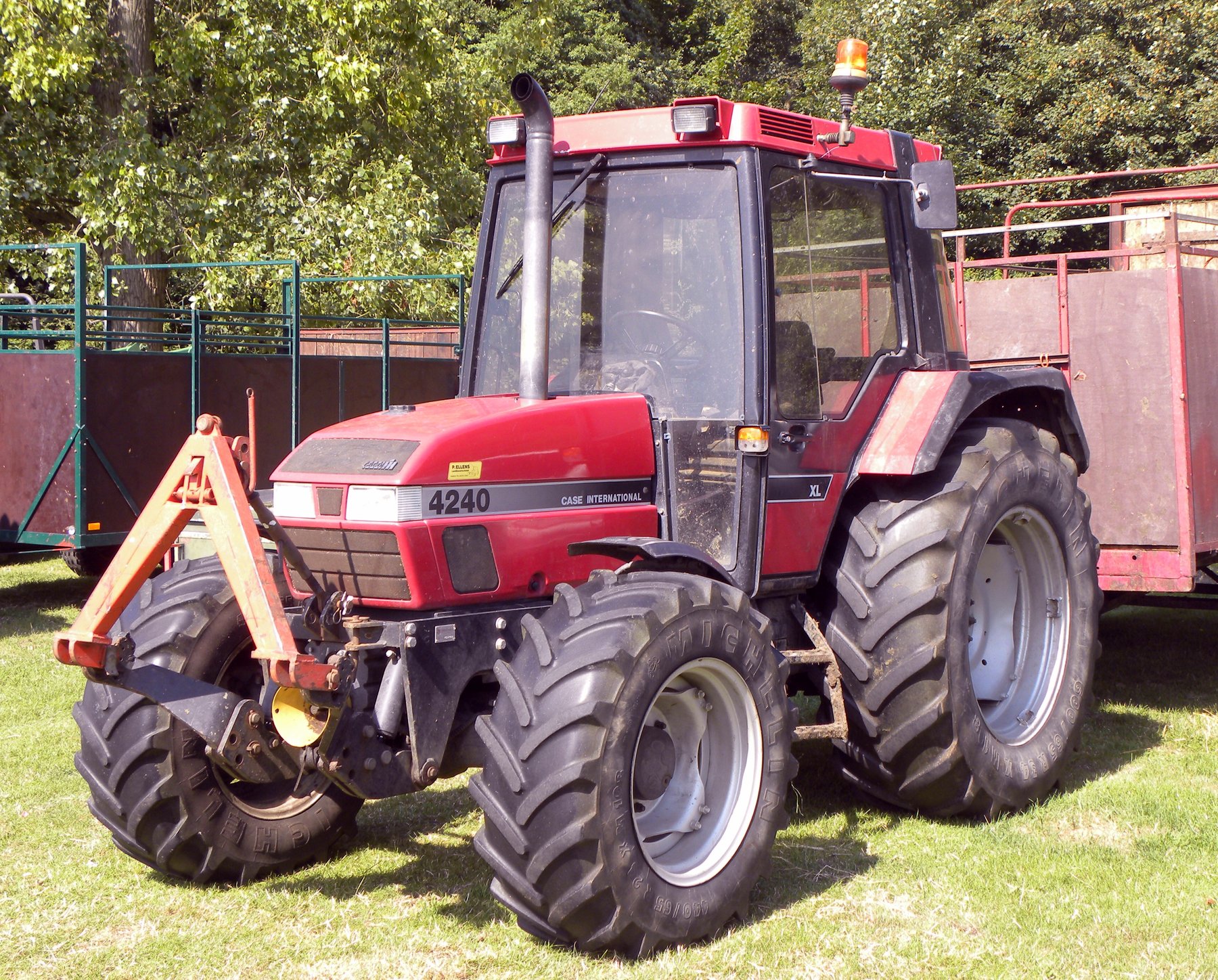

The Case IH 4240 is an agricultural tractor classified within the category of classic field and transport vehicles. As part of Case IH's broad product range, this model targets users seeking solid basic equipment for mixed farm operations. The design is based on a water-cooled four-cylinder diesel engine with a displacement of 4,389 cm³, operating at a rated speed of 2,400 rpm. This technical configuration forms the foundation for the specified output of 94 hp (70 kW) and serves as the basis for daily use.
The maximum torque of 315 Nm ensures that the tractor provides sufficient traction for common implements even under load. Available transmission variants with 16 forward and 8 reverse gears, or alternatively 8 forward and 8 reverse gears, allow for flexible adaptation to various working speeds. With a top speed of 30 km/h, the vehicle is suitable for short transport trips on the farm or over field paths. PTO speeds of 540 and 1,000 rpm cover a wide range of implements, while the Cat I/II hitch category ensures compatibility with many standard tools.
Within the model series, the 4240 positions itself as a compact representative with a wheelbase of 2,235 mm and an overall length of 3,759 mm. These dimensions, combined with a width of 1,854 mm and a height of 2,666 mm, allow for manageable handling in confined spaces. The drive is available as rear-wheel drive or four-wheel drive (WD/MFWD), which improves traction on uneven terrain depending on the variant. The fuel tank capacity of 112 l ensures adequate range for longer work assignments without frequent stops for refueling.
Case IH – other models: the collective page of tractors outside the named ranges, from the IH heritage (1056 XL, 1455 XL) through the 4200, 5100 and CS series to Farmall, Maxxum, Puma, Magnum and Steiger Quadtrac
This page gathers the Case IH tractors the register could not assign to a named range – the brand that emerged in 1985 when Tenneco bought the farm-equipment division of International Harvester and merged it with J.I. Case of Racine. The tractors therefore carry several origins: the IH 56 and 55 series from Neuss and Doncaster (1056 XL, 1455 XL, 1255) with the XL cab, the 4200 and 5100 (Maxxum) series from Neuss and Racine of the 1990s, the Steyr relatives CS and CVX after the merger into CNH in 1999, and today's Farmall (compact and utility tractors), Maxxum, Puma, Magnum and Steiger ranges, whose number gives the hp class – Puma 195 about 195 hp, Magnum 235 235 hp, Steiger 535 535 hp – and whose suffixes CVX, Quadtrac, Accusteer and Heavy-Duty mark the stepless transmission, the four-track undercarriage and chassis versions. The engines are IH's own in the old, Perkins in the small, FPT (NEF and Cursor) in the medium and big and Cummins in the oldest Steigers.
Read on 3 more paragraphs
The register lists here 275 versions with 17 to 398.9 kW from three- to six-cylinders of 2,539 to 14,994 cm³, PTO outputs from 45 to 473 hp, lift capacities from 742 to 19,620 kg, unladen weights from 2,115 to 24,494 kg, lengths from 3,390 to 6,040 mm and widths from 1,347 to 3,048 mm.
Case IH is New Holland's red sister in the CNH group, number two behind John Deere in North America and, with the Quadtrac, the inventor of the four-track big tractor; the Maxxum and Puma ranges are technically the twins of the Steyr Profi and CVT from St. Valentin.
On used tractors, clutch, transmission and XL cab count on the IH heirs, operating hours, powershift or CVX transmission, front-axle suspension and electronics on the Maxxum and Puma, engine, transmission and tyres or tracks on the Magnum and Steiger; parts run through CNH.
Sources: SpecCodex register, model data: Case IH (weitere Modelle), Case IH (CNH, Hersteller)
Technical data
Engine
| Power | 94 hp (70 kW)correct |
|---|---|
| Rated speed | 2,400 rpmcorrect |
| Torque | 315 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,389 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,759 mmcorrect |
|---|---|
| Width | 1,854 mmcorrect |
| Height | 2,666 mmcorrect |
| Wheelbase | 2,235 mmcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Gearbox | 16 V/8 R or 8 V/8 Rcorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 112 lcorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Area: Machines
Frequently asked questions
How much power does the Case IH 4240 have?
The Case IH 4240 delivers 94 hp.
What engine does the Case IH 4240 have?
4 cylinders, 4,389 cm³ displacement.
How fast does the Case IH 4240 go?
Top speed is 30 km/h.
What are the dimensions of the Case IH 4240?
3,759 mm × 1,854 mm × 2,666 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
