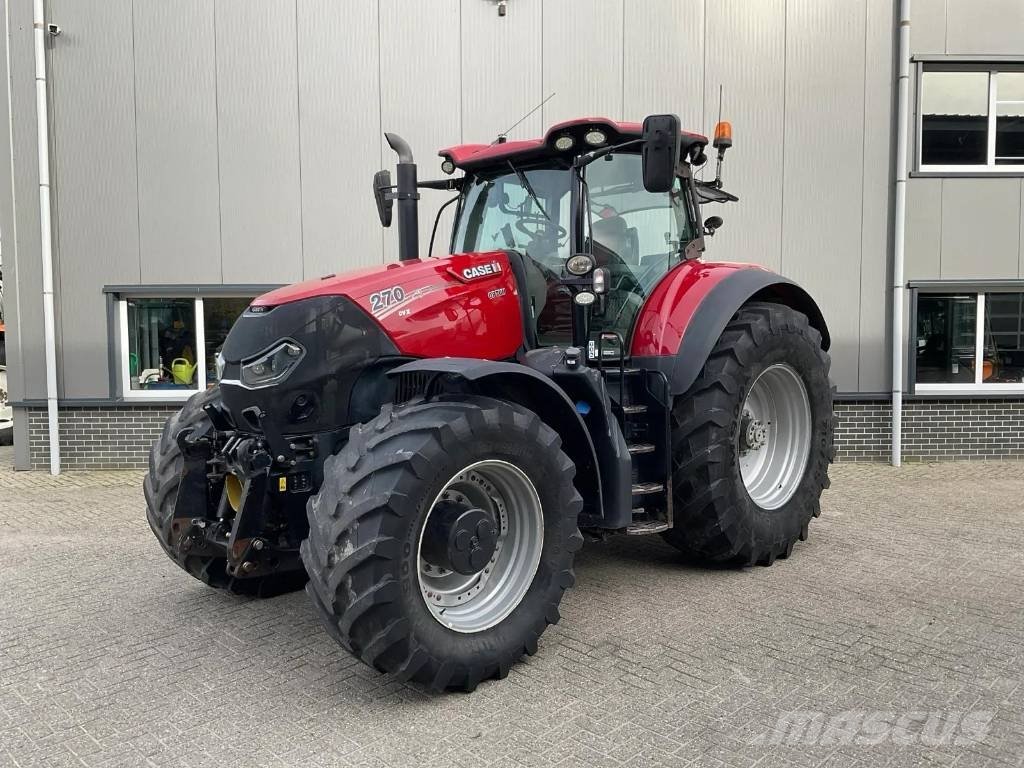

Case IH OPTUM 270 CVT (2016-2017) 4WD – specifications

The Case IH Optum 270 CVT is a heavy-duty arable farming tractor belonging to the Optum series, which was produced between 2016 and 2017. This series bridges the gap between the smaller Puma models and the larger Magnum tractors. The vehicle is manufactured at the St. Valentin plant in Austria and is technically closely related to the Steyr Terrus. As a standard all-wheel-drive tractor, the machine is primarily aimed at contract work providers and large arable farms requiring high traction at moderate weight.

The tractor is powered by a six-cylinder FPT engine with a displacement of 6,700.7 cm³. The eVGT turbocharging with air-to-air intercooling ensures constant power delivery across a wide speed range. The continuously variable CVT transmission enables uninterrupted power transmission, which increases productivity under varying soil conditions and during transport operations. The maximum lifting capacity of 7,167 kg allows for the use of heavy mounted implements. With a width of 3,023.1 mm and a cab height of 3,366 mm, the vehicle remains within the limits of typical road widths, although it requires appropriate caution when planning transport on narrow roads.

Within the Optum series, the 270 CVT is positioned as a model in the mid-power class. The model designation indicates the horsepower class, with the number 270 referring to the nominal power. The series includes models ranging from approximately 250 hp up to the most powerful model with 340 hp. The Optum 270 CVT thus represents a balanced option between the lighter entry-level versions and the maximum power stages of the family. This positioning makes it a suitable choice for farms that require high traction for intensive soil cultivation and large transport volumes without reaching the full dimensions of the Magnum class.
