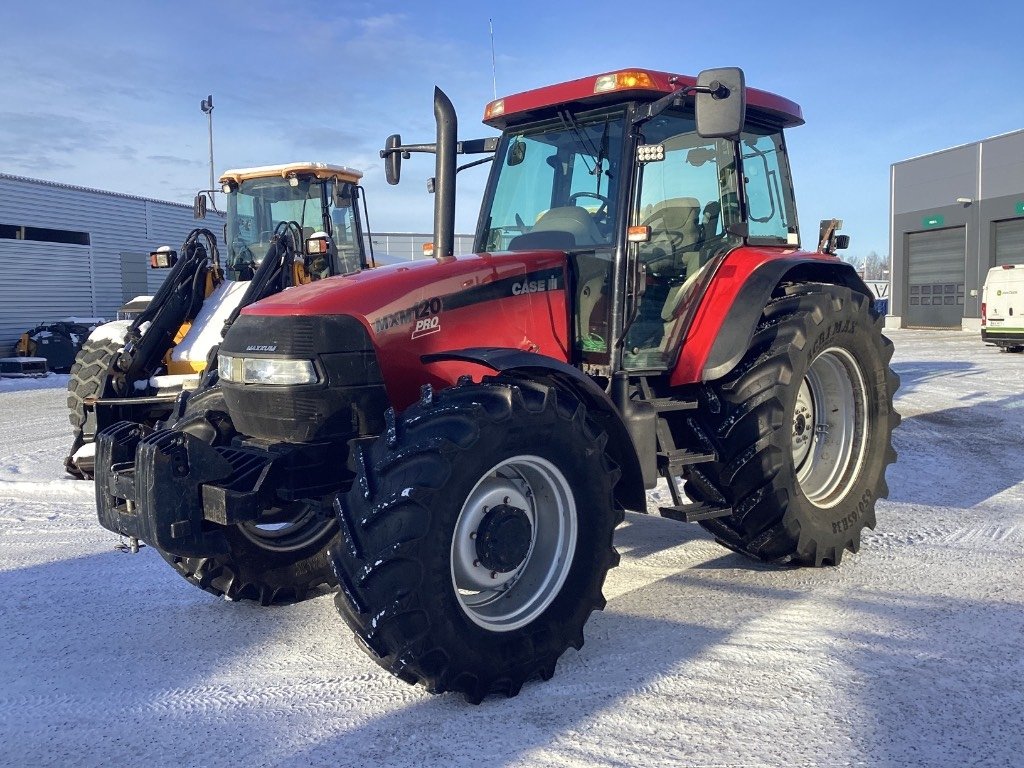

Case IH MXM 120
Built: 2002–2007 · Series: MXM MAXXUM-Baureihe
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH MXM 120: Maxxum-range tractor with a 7,480cc six-cylinder diesel, 91.2 kW (124 hp), 505 Nm of torque and a 40 km/h top speed, built from 2002 to 2007
Case IH is the agricultural brand of CNH Industrial, formed in 1985 when the Case Corporation of Racine, Wisconsin, took over International Harvester's agricultural tractor business and merged both model lines under the Case IH name. The Maxxum name dates from that period: International Harvester had introduced it shortly before the takeover for a new tractor generation, and Case IH carried it forward for decades on its mid-range tractors, most recently in the MXM range.
Read on 3 more paragraphs
The MXM 120 from this range carries a water-cooled six-cylinder diesel engine of 7,480 cm³, producing 91.2 kW (124 hp) at 2,200 rpm and also able to run on rapeseed methyl ester (RME). At a permissible gross weight of 8,000 kg and an unladen weight of 5,441 kg, the tractor measures 4,694 mm in length, 2,012 mm in width and 3,030 mm in height on a 2,723 mm wheelbase; torque stands at 505 Nm.
With six cylinders and over seven litres of displacement, the MXM 120 belongs to the upper mid-range of farm tractors, built for pulling heavy implements, haulage work and running powerful harvester attachments. Its top speed of 40 km/h places the machine in Germany's category T driving licence class for agricultural and forestry tractors.
When buying an MXM 120 used, the condition of the six-cylinder engine after many operating hours matters, along with the tightness of the cooling system on this large-displacement unit and the state of the clutch and gearbox. Also worth checking are the hydraulic pump for the lift function, the engine control electronics, and corrosion damage to the frame, which is common on tractors of this age after many years of outdoor use.
Sources: SpecCodex-Register: Kennwerte des Modells Case IH MXM 120, Case IH (manufacturer)
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 124 hp (91.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 505 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,480 cm³correct |
| Bore | 111.8 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,694 mmcorrect |
|---|---|
| Width | 2,012 mmcorrect |
| Height | 3,030 mmcorrect |
| Wheelbase | 2,723 mmcorrect |
| Ground clearance | 395 mmcorrect |
| Unladen weight | 5,441 kgcorrect |
| Gross vehicle weight | 8,000 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/6 R and 28 V/12 Rcorrect |
| Front tyres | 14.9 R 28 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 285 lcorrect |
|---|
Origin and approval
| Construction | frame constructioncorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/540E rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.8 kW/t (91 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MXM 120 have?
The Case IH MXM 120 delivers 124 hp.
How much does the Case IH MXM 120 weigh?
The unladen weight is 5,441 kg.
What is the gross vehicle weight of the Case IH MXM 120?
8,000 kg.
What engine does the Case IH MXM 120 have?
6 cylinders, 7,480 cm³ displacement, Diesel/RME.
How fast does the Case IH MXM 120 go?
Top speed is 40 km/h.
What are the dimensions of the Case IH MXM 120?
4,694 mm × 2,012 mm × 3,030 mm.
When was the Case IH MXM 120 built?
Production years: 2002–2007.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
