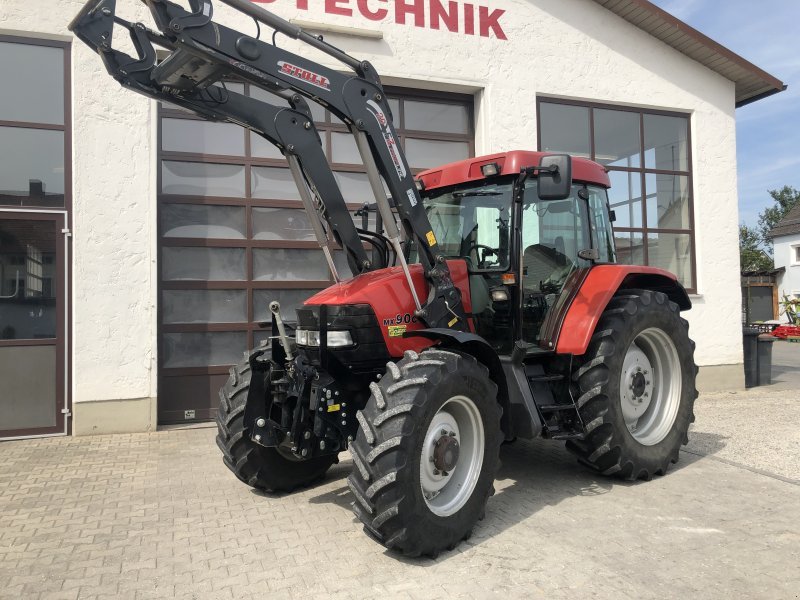

Case IH MX 90 C

Built: 1998–2000 · Series: MX/C-Baureihe

More machines from model year 1998

Source: https://www.technikboerse.com/gebraucht/traktor-357/case-ih-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH MX 90 C belongs to the MX/C series. Production: 1998–2000. The engine delivers 90 hp (66.2 kW), has 4 cylinders, with a displacement of 3,990 cm³. Torque is 320 Nm. Rated speed is 2,200 rpm. The machine is 4,450 mm long, 2,357 mm wide and 2,855 mm high. The unladen weight is 5,080 kg. The wheelbase measures 2,422 mm. Ground clearance is 385 mm. Top speed is 40 km/h. The tank holds 189 litres. Transmission: 16 V/12 R and 32 V/24 R. The engine is water-cooled. Tyres: front 420/70 R 28 AS, rear 520/70 R 38 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 127 mm. The compression ratio is 17.25:1. Construction: unit construction (no separate frame). The linkage is category II. The PTO runs at 540/1000 rpm. The MX/C-Baureihe series covers 3 models. Rated output within it ranges from 84 to 102 hp; the MX 90 C sits in the lower part of that range with 90 hp. Its immediate neighbours are the MX 80 C below it with 84 hp and the MX 100 C above it with 102 hp. Unladen weight within it ranges from 4,800 to 5,340 kg; here the MX 90 C sits in the middle of that range with 5,080 kg. 1222 Case IH models across 76 series are on record.

Case IH MX/C series, MX 80C to MX 100C – four-cylinder diesels with 4,000 cm³ displacement: 61.8 to 75 kW, 4,800 to 5,340 kg unladen weight

The MX series of Case IH with the suffix C forms a version of the mid to upper general-purpose tractor class; the types MX 80 C, MX 90 C and MX 100 C share the same four-cylinder engine of 3,990 cm³ displacement, the number in the type ordering the power step. At Case IH, the MX designation generally marks the mid to upper general-purpose tractor class, while the C suffix denotes a particular equipment line within that class.

Read on 3 more paragraphs

The register lists 3 versions with 61.8 to 75 kW (84 to 102 hp) from four-cylinder diesel engines of a constant 3,990 cm³ displacement at a constant 2,200 rpm, torque of 296 to 352 Nm. Unladen weights range from 4,800 to 5,340 kg, lengths from 4,160 to 4,650 mm, widths from 2,300 to 2,455 mm and heights from 2,809 to 2,855 mm.

As powerful general-purpose tractors, the MX-C series is aimed at medium and larger arable farms for tillage, drilling and haulage work and stands in direct competition with comparable series from New Holland, Fendt and John Deere. The powerful hydraulics and high drawbar output made the MX-C models suitable also for running heavy tillage implements such as cultivators and disc harrows.

When buying used, what counts is the operating hours and service history of the four-cylinder diesel, the condition of clutch and gearbox, the function of hydraulics and PTO, and corrosion on the cab and panels; parts run through the Case IH dealer network.

Sources: SpecCodex register, model data: Case IH MX/C-Baureihe, Case IH (CNH Industrial, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	90 hp (66.2 kW)correct
Rated speed	2,200 rpmcorrect
Torque	320 Nmcorrect
Cylinders	4correct
Displacement	3,990 cm³correct
Bore	100 mmcorrect
Stroke	127 mmcorrect
Compression ratio	17.25correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,450 mmcorrect
Width	2,357 mmcorrect
Height	2,855 mmcorrect
Wheelbase	2,422 mmcorrect
Ground clearance	385 mmcorrect
Unladen weight	5,080 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16 V/12 R and 32 V/24 Rcorrect
Front tyres	420/70 R 28 AScorrect
Rear tyres	520/70 R 38 AScorrect
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	189 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Other data

Linkage category	Cat IIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 13 kW/t (66 kW / 5.1 t)

Power class: Universal (40–100 hp)

Stronger than 61% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH MX 90 C have?

The Case IH MX 90 C delivers 90 hp.

How much does the Case IH MX 90 C weigh?

The unladen weight is 5,080 kg.

What engine does the Case IH MX 90 C have?

4 cylinders, 3,990 cm³ displacement, Diesel.

How fast does the Case IH MX 90 C go?

Top speed is 40 km/h.

What are the dimensions of the Case IH MX 90 C?

4,450 mm × 2,357 mm × 2,855 mm.

When was the Case IH MX 90 C built?

Production years: 1998–2000.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
