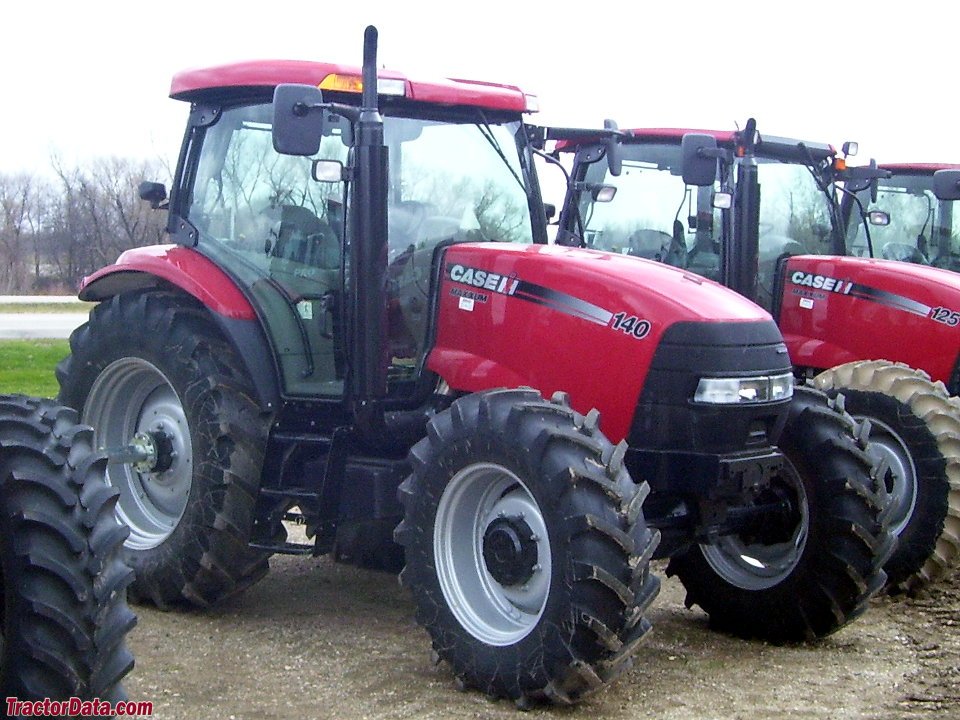

Case IH Maxxum 140 Pro MFWD
Series: Maxxum
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Maxxum 140 Pro is a tractor from the Maxxum series. The six-cylinder engine, displacing 6.8 litres, produces 141 hp (103.7 kW). Rated power arrives at 2,200 rpm — the engine pulls from low down rather than needing to be revved.
Unladen, it tips the scales at 4,950 kg. Wheelbase is 2.66 m.
Within the range, rated power spans from 90 to 145 hp; with 141 hp, the Maxxum 140 Pro sits at the top. Directly alongside are the MAXXUM 140 with 140 hp below and the Maxxum 145 CVX with 145 hp above.
Technical data
Engine
| Power | 140.9 hp (103.7 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,751.5 cm³correct |
| Aspiration | Turbocharged, aftercooledcorrect |
Dimensions and weights
| Wheelbase | 2,664correct |
|---|---|
| Unladen weight | 4,949.6 kgcorrect |
Drivetrain and chassis
| Gearbox type | Semi powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Pump flow | 140.1 l/mincorrect |
|---|---|
| Fuel tank capacity | 250.2 lcorrect |
Where this model stands
Power-to-weight ratio: 21 kW/t (104 kW / 4.9 t)
Power class: Large (100–180 hp)
Stronger than 82% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Maxxum 140 Pro have?
The Case IH Maxxum 140 Pro delivers 141 hp.
How much does the Case IH Maxxum 140 Pro weigh?
The unladen weight is 4,950 kg.
What engine does the Case IH Maxxum 140 Pro have?
6 cylinders, 6,752 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
