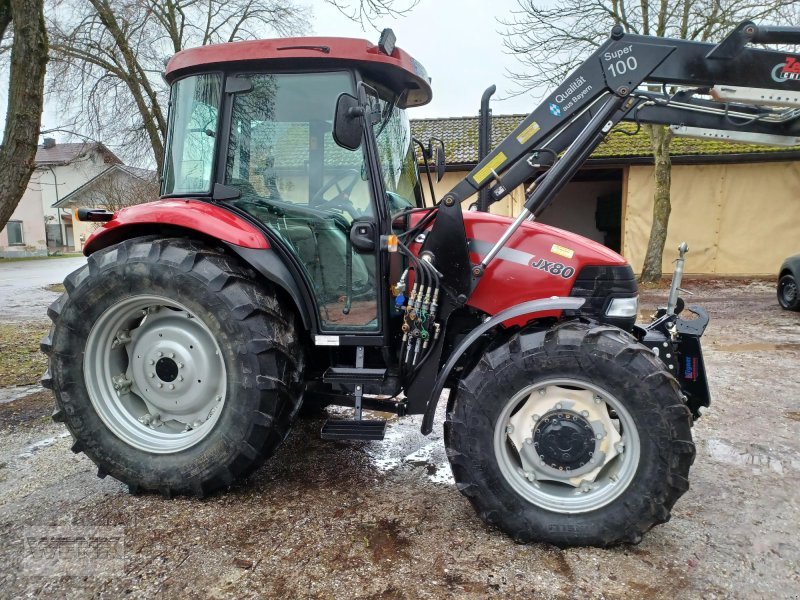

Case IH JX 80 (A)
Built: 2004–2008 · Series: JX
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH JX – Compact Entry Class, 2002 to 2013, with Three- and Four-Cylinder Engines, 40.5 to 73.5 kW and Operating Weight from 2,590 to 3,700 kg
The JX series was Case IH's compact, simply equipped tractor class, with recorded models from 2002 to 2013. Engine output ranges from 40.5 to 73.5 kW, with models rated in horsepower spanning 69 to 100 hp, using three- and four-cylinder engines with displacement from 2,710 to 4,485 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 2,590 to 3,700 kg, wheelbase from 2,175 to 2,385 mm, and top speed of the listed models is 30 km/h. Many models carry the A suffix, which at Case IH denotes a specific JX equipment variant.
The JX series targeted smaller farms, grassland operations and municipal use requiring a simple, rugged tractor without elaborate electronics. For a used model, check the gearbox version and cab variant, as both cabbed and open-platform versions were offered.
With rated outputs from 40.5 to 73.5 kW, the JX series falls within ISO 730 Category I to II for the rear three-point hitch, with a power take-off that in this power class usually runs at 540 revolutions per minute. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, including for the simpler open-platform versions without a cab, which remain especially common on municipal maintenance machines today.
Sources: SpecCodex register, model data: Case IH JX, Case IH
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 80 hp (58.8 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 279 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,908 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,032 mmcorrect |
|---|---|
| Width | 1,808 mmcorrect |
| Height | 2,540 mmcorrect |
| Wheelbase | 2,305 mmcorrect |
| Ground clearance | 285 mmcorrect |
| Unladen weight | 2,812 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/12 R and 20 V/12 Rcorrect |
| Front tyres | 7.50-16 ASF (A: 11.2 R 24 AS)correct |
| Rear tyres | 16.9 R 30 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.9 kW/t (59 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH JX 80 (A) have?
The Case IH JX 80 (A) delivers 80 hp.
How much does the Case IH JX 80 (A) weigh?
The unladen weight is 2,812 kg.
What engine does the Case IH JX 80 (A) have?
4 cylinders, 3,908 cm³ displacement, Diesel/RME.
How fast does the Case IH JX 80 (A) go?
Top speed is 30 km/h.
What are the dimensions of the Case IH JX 80 (A)?
4,032 mm × 1,808 mm × 2,540 mm.
When was the Case IH JX 80 (A) built?
Production years: 2004–2008.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
