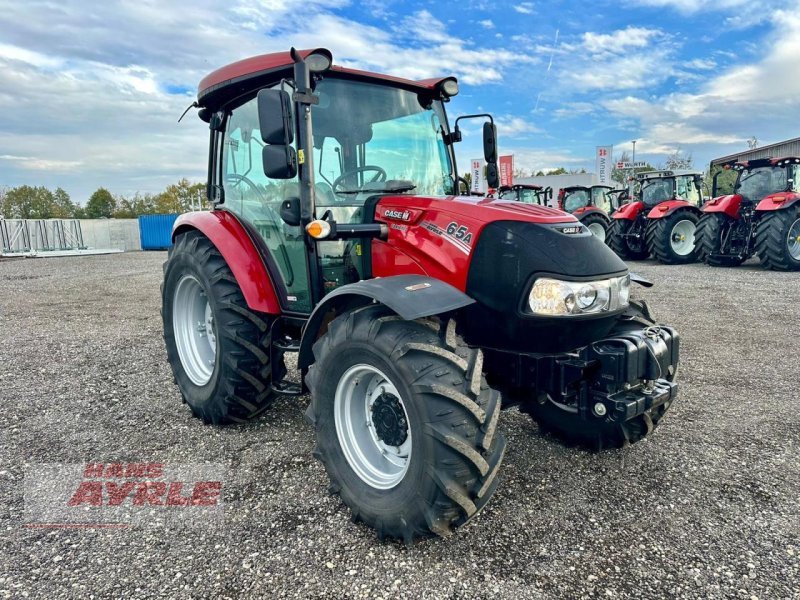

Case IH Farmall 65A
Built: 2010 · Series: Farmall A
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Farmall 65A to 95A – the compact general-purpose tractor series since around 2010: 48 to 70 kW, 65 to 95 hp, 2,930 to 4,500 cm³ displacement
Case IH introduced the Farmall series as a revival of the historic brand name for its compact general-purpose tractors; the A version with the types Farmall 65A, 75A and 95A has formed the entry class since around 2010, with the number in the type directly stating the horsepower. The historic Farmall brand name goes back to International Harvester, whose agricultural machinery division merged into Case in 1985, supplying the name for today's series.
Read on 3 more paragraphs
The register lists 3 versions with 48 to 70 kW (65 to 95 hp) from three- to four-cylinder diesel engines of 2,930 to 4,500 cm³ displacement at a constant 2,300 rpm. Unladen weights are around 2,880 to 3,780 kg, gross vehicle weights 4,800 to 6,000 kg, lift capacity 3,000 to 3,565 kg. Lengths range from 3,856 to 4,322 mm, widths from 1,922 to 2,550 mm and heights from 2,495 to 2,665 mm.
As compact, versatile general-purpose tractors, the Farmall A series is aimed at smaller and medium-sized farms and at contractors looking for a manoeuvrable, easy-to-operate tractor for yard and field work, competing with comparable series from New Holland and Massey Ferguson. The enclosed cab with air conditioning and the steplessly adjustable hydraulics are part of the standard equipment and ease use even with changing mounted implements.
When buying used, what counts is the operating hours and service history of the diesel, the condition of clutch and gearbox, the function of hydraulics and PTO, and corrosion on the cab and panels; parts run through the Case IH dealer network.
Sources: SpecCodex register, model data: Case IH Farmall A, Case IH (CNH Industrial, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 65 hp (48 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,930 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,856 mmcorrect |
|---|---|
| Width | 1,922 mmcorrect |
| Height | 2,495 mmcorrect |
| Unladen weight | ~ 2880 kgcorrect |
| Gross vehicle weight | 5,400 kgcorrect |
Working data
| Lifting capacity | 3,000 kgcorrect |
|---|---|
| Fuel tank capacity | 82 lcorrect |
Where this model stands
Power-to-weight ratio: 16.7 kW/t (48 kW / 2.9 t)
Power class: Universal (40–100 hp)
Stronger than 45% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Farmall 65A have?
The Case IH Farmall 65A delivers 65 hp.
How much does the Case IH Farmall 65A weigh?
The unladen weight is 2,880 kg.
What is the gross vehicle weight of the Case IH Farmall 65A?
5,400 kg.
What engine does the Case IH Farmall 65A have?
3 cylinders, 2,930 cm³ displacement, Diesel.
How much does the rear linkage of the Case IH Farmall 65A lift?
The rear linkage lifts 3,000 kg.
What are the dimensions of the Case IH Farmall 65A?
3,856 mm × 1,922 mm × 2,495 mm.
When was the Case IH Farmall 65A built?
Production years: 2010.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
