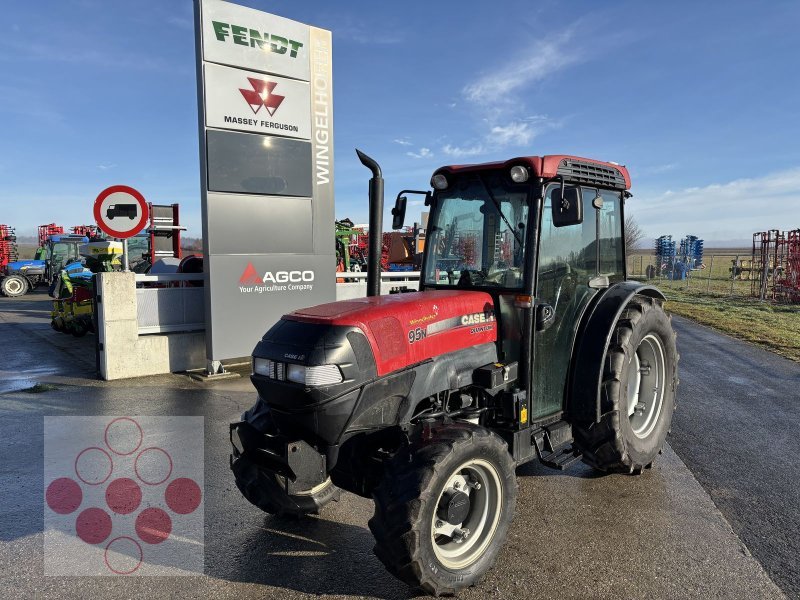

Case IH FARMALL 95N NARROW (2008-2015) 4WD – specifications

Series: Farmall

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH FARMALL 95N NARROW is a compact utility tractor from the Farmall series, produced between 2008 and 2015. As a four-wheel drive (4WD) variant, it is positioned as a specialized machine for narrow tracks, such as in orchards or vineyards. The Farmall series currently serves as a family of compact to mid-range tractors, where the number in the name indicates the power class and the letter denotes the equipment level. The model is designed for applications requiring low width combined with high traction.

The tractor is powered by a Case IH FPT four-cylinder engine with a displacement of 4,501.5 cm³, featuring high-pressure common rail injection, a turbocharger, and an intercooler. The 4-speed synchronized transmission offers 32 forward and 16 reverse gears, enabling fine speed gradations for precise field work. The maximum speed of 19.2 km/h is designed for working speeds. With a lift capacity of 1,998 kg, the vehicle can safely handle heavy mounted implements such as front loaders or rear-mounted machinery. The PTO speed of 540 rpm is the standard value for most agricultural equipment.

Within the Farmall family, the 95N NARROW occupies a niche position defined by its narrow design. Compared to the wider standard models in the series, it is specifically designed for crops with narrow row spacings. The equipment corresponds to the mid-range category, exceeding the basic entry-level variant but not offering the full comfort features of the highest levels. This configuration is particularly suitable for work in specialty crops, where vehicle width is critical for maneuverability between plant rows.

Case IH Farmall – A, C and U: the compact utility class and what the letters mean

At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.

Read on 3 more paragraphs

The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.

In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.

Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.

Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)

Technical data

Engine

Engine makeCase IH FPTcorrect
Engine model4.5 Lcorrect
FuelHigh Pressure Common Railcorrect
Cylinders4correct
Displacement4,501.5 cm³correct
AspirationTurbocharged, inter cooledcorrect

Drivetrain and chassis

Gearbox type4 synchromesh gearbox Speeds in 4 Rangescorrect
Forward gears32correct
Reverse gears16correct
Top speed19.2 km/hcorrect

Working data

Lifting capacity1,998 kgcorrect

Other data

Cab height2,303 mmcorrect
PTO speed540correct

Frequently asked questions

What engine does the Case IH FARMALL 95N NARROW (2008-2015) have?

The Case IH FARMALL 95N NARROW (2008-2015) has 4 cylinders and 4,501.5 cm³ displacement. Fuel: High Pressure Common Rail.

How fast does the Case IH FARMALL 95N NARROW (2008-2015) go?

The top speed of the Case IH FARMALL 95N NARROW (2008-2015) is 19.2 km/h.

How much does the rear linkage of the Case IH FARMALL 95N NARROW (2008-2015) lift?

The rear linkage of the Case IH FARMALL 95N NARROW (2008-2015) lifts 1,998 kg.

More machines with this engine (Case IH FPT 4.5 L, 3)

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
