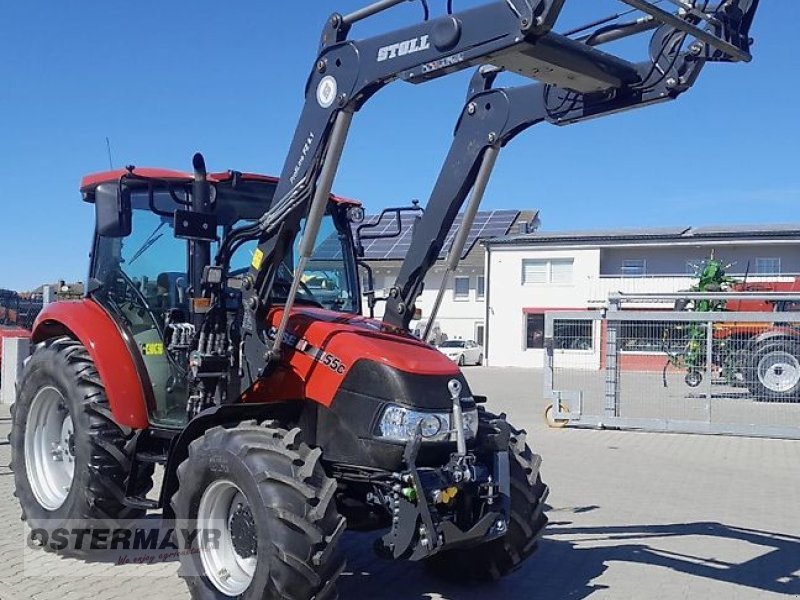

Case IH FARMALL 55C SERIES II 4WD – specifications
Series: Farmall
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Farmall 55C Series II is a compact utility tractor from the current Farmall range by Case IH. As the four-wheel-drive variant, this model is positioned within the family of compact and mid-size tractors, covering the spectrum from loader replacements to all-rounders for grassland and specialty crops. The designation “C” indicates the more comfortable equipment line with an improved cab and hydraulics, while the number in the name defines the power class.
The tractor is powered by a three-cylinder turbocharged engine of the L3C19-T type with a displacement of 1,881.2 cm³. Power transmission is handled by a gearbox with 16 forward and 16 reverse gears, consisting of four synchronized steps and four non-synchronized ranges. This high number of gears allows for fine adjustment of speed to various working speeds in the field. With a lift capacity of 1,120 kg, the three-point hitch is designed for standard mounted implements, while the PTO operates at a speed of 540 rpm. The cab has a height of 2,370.1 mm.
Within the Farmall range, the 55C Series II occupies a specific position between the simpler A models and the more versatile U variants. As a representative of the C line, it offers upgraded equipment that goes beyond the base versions but does not reach the full scope of transmission options found in the utility class. This positioning makes it a suitable choice for applications that demand higher comfort levels in the cab and hydraulics without requiring the maximum complexity of the top models.
Case IH Farmall – A, C and U: the compact utility class and what the letters mean
At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.
Read on 3 more paragraphs
The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.
In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.
Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.
Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)
Technical data
Engine
| Engine make | LS Mtroncorrect |
|---|---|
| Engine model | L3C19-Tcorrect |
| Cylinders | 3correct |
| Displacement | 1,881.2 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Width | 1,755.1 mmcorrect |
|---|---|
| Wheelbase | 1,862.3 mmcorrect |
Drivetrain and chassis
| Gearbox type | 4 synchro speeds in 4 non-synchro rangescorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
Working data
| Lifting capacity | 1,120 kgcorrect |
|---|
Other data
| Cab height | 2,370.1 mmcorrect |
|---|---|
| PTO speed | 540correct |
More machines with this engine (LS Mtron L3C19-T, 4)
Frequently asked questions
What engine does the Case IH FARMALL 55C SERIES II have?
3 cylinders, 1,881 cm³ displacement.
How much does the rear linkage of the Case IH FARMALL 55C SERIES II lift?
The rear linkage lifts 1,120 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
