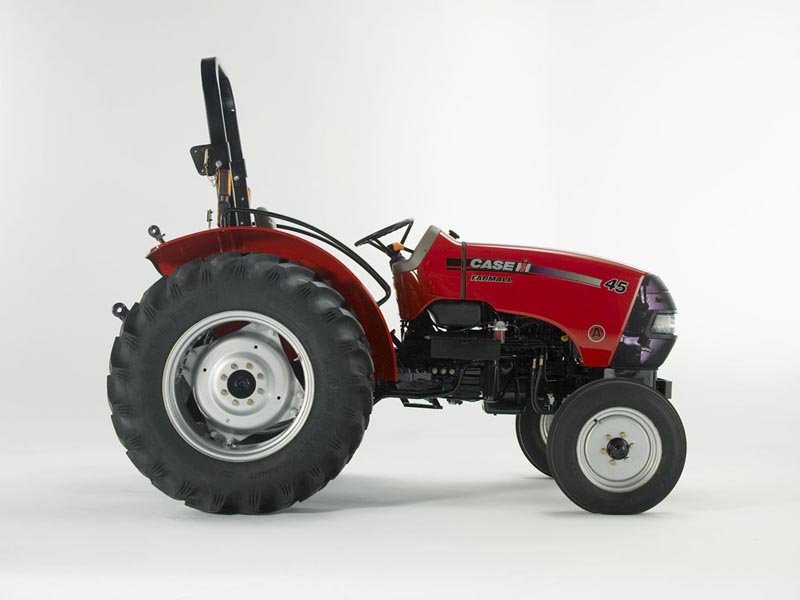

Case IH FARMALL 45A (2010-2015) 4WD
Series: Farmall
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Farmall – A, C and U: the compact utility class and what the letters mean
At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.
Read on 3 more paragraphs
The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.
In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.
Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.
Sources: Kennwerte der Modelle Case IH Farmall, Case IH Traktorenprogramm (Hersteller), (Wikipedia)
Technical data
Engine
| Engine make | Shibauracorrect |
|---|---|
| Engine model | N844Lcorrect |
| Fuel | In-Line Pump Systemcorrect |
| Cylinders | 4correct |
| Displacement | 2,200.8 cm³correct |
| Aspiration | naturally aspiratedcorrect |
Dimensions and weights
| Width | 1,680.2correct |
|---|---|
| Wheelbase | 1,962.9correct |
Drivetrain and chassis
| Gearbox type | Gearcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 8correct |
Other data
| PTO speed | 540correct |
|---|
Frequently asked questions
What engine does the Case IH FARMALL 45A (2010-2015) have?
4 cylinders, 2,201 cm³ displacement, In-Line Pump System.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
