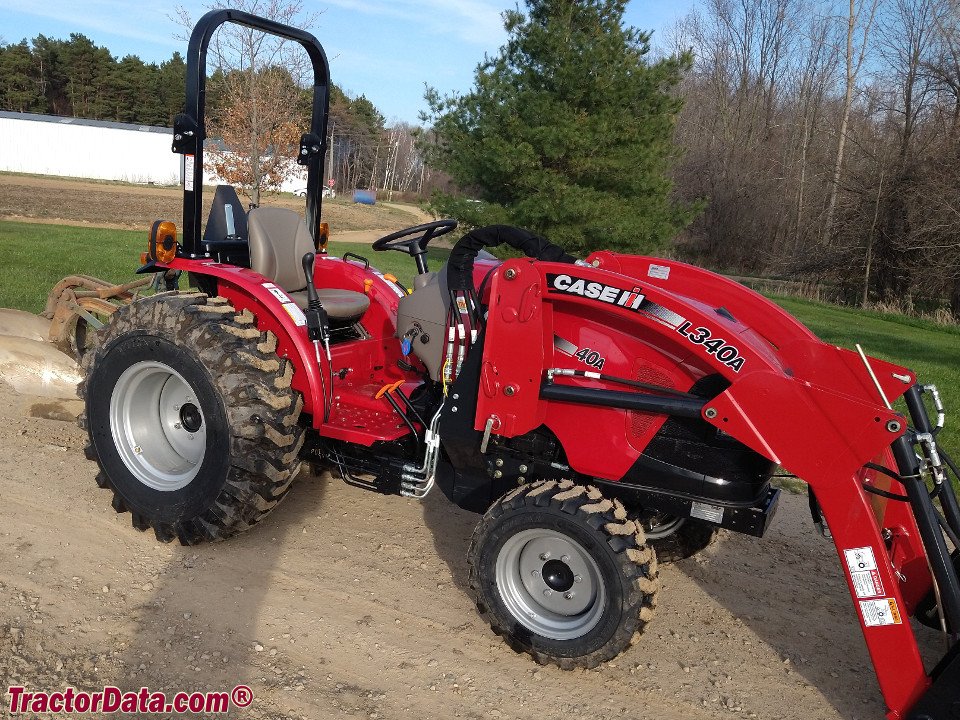

Case IH Farmall 40A Series II 4WD – specifications

Series: Farmall

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Farmall 40A Series II is a compact four-wheel-drive tractor from Case IH's current Farmall range. As a variant with the A equipment line, this model positions itself as the entry-level version within the family of compact and mid-range utility tractors. The series continues the historical name of the Farmall line, yet technically covers the spectrum from loader replacement to an all-rounder for grassland, municipal work, and specialty crops. The designation 40A is based on the power class and the basic standard equipment, which focuses on the essential requirements of daily operation.

The tractor is powered by a three-cylinder turbocharged engine with a displacement of 1,881.2 cm³, supplied with fuel via a common rail system. The hydrostatic transmission offers twelve forward and twelve reverse gears, enabling stepless adjustment of speed to the specific task at hand. With a lift capacity of 650 kg, the rear hitch is suitable for attaching light to medium-duty implements, while the PTO speed of 540 rpm ensures compatibility with standard agricultural equipment. The overall width of 1,500.1 mm and the wheelbase of 1,682.5 mm allow for a compact design that is advantageous in tight barns or on small plots.

Within the Farmall family, the Farmall 40A Series II occupies the position of the compact entry-level model. It is aimed at users who require an agile tractor for light transport work, yard duties, or the maintenance of specialty crops. The A equipment line omits the extended comfort features of higher variants such as C or U, but focuses on basic hydraulic and mechanical functions. Due to the combination of four-wheel drive and hydrostatic power transmission, the model is particularly suitable for applications requiring high traction and precise speed control in confined spaces.

Case IH Farmall – A, C and U: the compact utility class and what the letters mean

At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.

Read on 3 more paragraphs

The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.

In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.

Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.

Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)

Technical data

Engine

Engine makeLS Mtroncorrect
Engine modelL3C19-Tcorrect
FuelCommon Railcorrect
Cylinders3correct
Displacement1,881.2 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Width1,500.1 mmcorrect
Wheelbase1,682.5 mmcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmission, 3 rangescorrect
Forward gears12correct
Reverse gears12correct

Working data

Lifting capacity650 kgcorrect

Other data

PTO speed540correct

More machines with this engine (LS Mtron L3C19-T, 4)

Frequently asked questions

What engine does the Case IH Farmall 40A Series II have?

3 cylinders, 1,881 cm³ displacement, Common Rail.

How much does the rear linkage of the Case IH Farmall 40A Series II lift?

The rear linkage lifts 650 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
