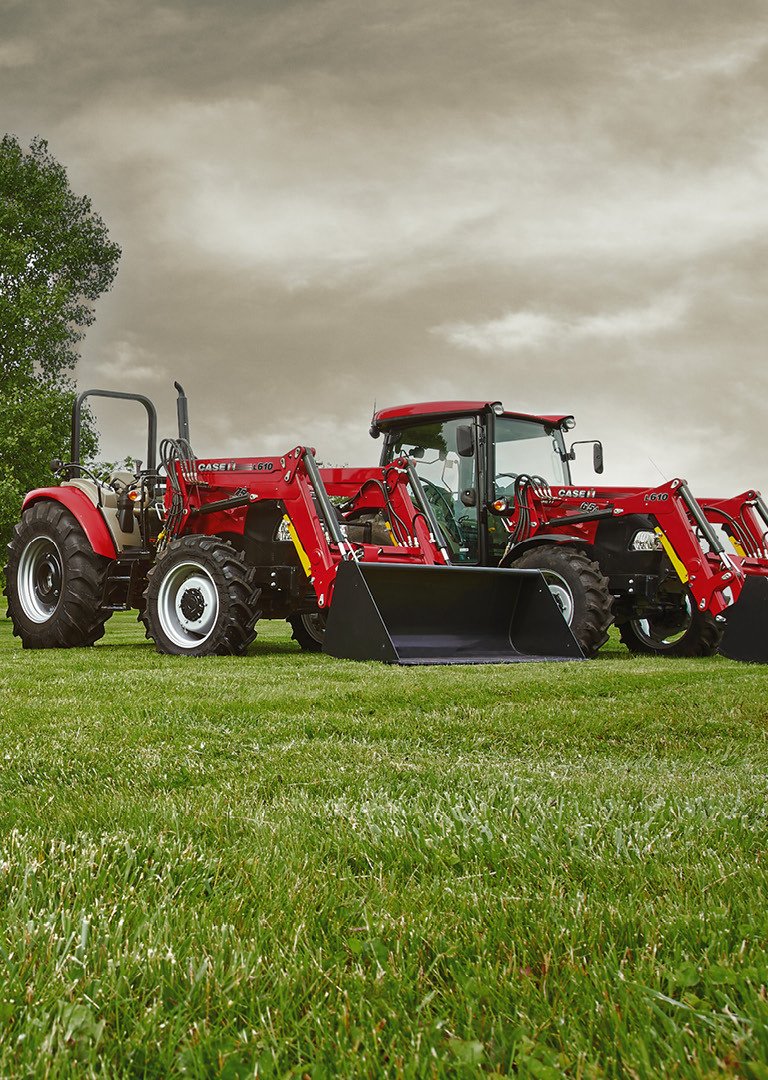

Case IH FARMALL 35A Series II (2017-Present) 4WD – specifications

Series: Farmall

Build year not documented · Data origin: Directory data · sources

Source: caseih.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Farmall 35A Series II is a compact four-wheel-drive tractor from Case IH, produced since 2017. As a representative of the Farmall series, this model is positioned as the entry-level version within the family of compact and mid-range utility tractors. The letter A designates the basic-equipped variant within the series, targeting users seeking a solid standard configuration for general farm and field work.

The tractor is powered by a three-cylinder turbocharged engine of the N843T-F type with a displacement of 1,881.2 cm³. Power transmission is handled by a synchronized transmission with twelve forward and twelve reverse gears, allowing for precise speed adjustment to various working speeds. With a lift capacity of 650 kg, the vehicle is suitable for mounting heavier front loaders or rear attachments. The PTO speed of 540 rpm is the standard value for most agricultural implements. With a width of 1,500.1 mm and a wheelbase of 1,682.5 mm, the tractor remains maneuverable enough for narrow barn aisles and municipal application areas.

Within the current Farmall family, the series covers the range from skid-steer loader replacement to an all-rounder for grassland, municipalities, and special crops. The naming convention is based on power output, with the letter defining the equipment level. The A variant represents the entry-level configuration, while the C variant offers a more comfortable cab and hydraulics, and the U variant functions as the universal class with additional transmission options. The Farmall 35A Series II thus forms the foundation of the series for applications where basic functionality is the priority.

Case IH Farmall – A, C and U: the compact utility class and what the letters mean

At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.

Read on 3 more paragraphs

The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.

In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.

Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.

Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)

Technical data

Engine

Engine makeIHI Shibauracorrect
Engine modelN843T-Fcorrect
Cylinders3correct
Displacement1,881.2 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Width1,500.1 mmcorrect
Wheelbase1,682.5 mmcorrect

Drivetrain and chassis

Gearbox typesynchromesh gearbox shuttle, gears/ranges non-synchcorrect
Forward gears12correct
Reverse gears12correct

Working data

Lifting capacity650 kgcorrect

Other data

PTO speed540correct

Frequently asked questions

What engine does the Case IH FARMALL 35A Series II (2017-Present) have?

The Case IH FARMALL 35A Series II (2017-Present) has 3 cylinders and 1,881.2 cm³ displacement.

How much does the rear linkage of the Case IH FARMALL 35A Series II (2017-Present) lift?

The rear linkage of the Case IH FARMALL 35A Series II (2017-Present) lifts 650 kg.

More machines with this engine (IHI Shibaura N843T-F, 3)

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
