Case IH Compact Farmall 40C
Built: 2014–2016 · Series: Compact Farmall C Series
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

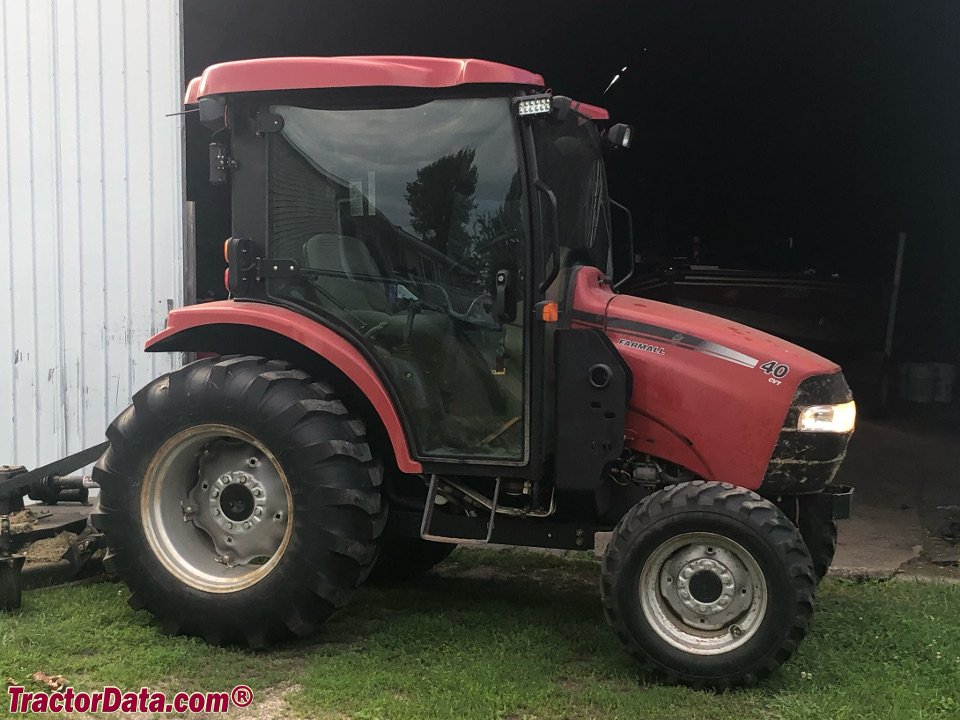

Case IH Compact Farmall 40C: compact tractor with a 2,216cc four-cylinder diesel, 30 kW and 1,250 kg of front hydraulic lift capacity
Case IH now uses the Farmall name from International Harvester's history for its compact tractors. The Compact Farmall C Series sits one step above the A series in the line-up and targets somewhat larger acreages and more demanding mounted implements, without yet reaching the class of standard farm tractors.
Read on 3 more paragraphs
The Compact Farmall 40C carries a four-cylinder diesel engine with 2,216 cc of displacement, producing 30 kW (40.2 hp) at 2,600 rpm. At 3,254 mm long, 1,755 mm wide and with a 1,860 mm wheelbase, the machine weighs 1,755 kg with a 40-litre fuel tank; front hydraulic lift capacity reaches 1,250 kg.
With four cylinders, just over 2.2 litres of displacement and a weight of 1.755 tonnes, the Farmall 40C belongs to the class of upper compact tractors that cover lighter farm work and front-loader operation alongside grounds maintenance. Lift capacity of 1,250 kg is clearly higher than the smaller A series and allows the use of heavier mounted implements.
When buying a used Compact Farmall 40C, the condition of the front hydraulics and the lift-arm seals matters, since this assembly takes heavy use on machines that see frequent front-loader work. Also worth checking are the clutch, the tightness of the cooling system, and tyre condition, which can wear unevenly on compact tractors used this way. The three-point linkage bearings are worth checking for play as well.
Sources: SpecCodex-Register: Kennwerte des Modells Case IH Compact Farmall 40C, Case IH (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40.2 hp (30 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,216 cm³correct |
Dimensions and weights
| Length | 3,254 mmcorrect |
|---|---|
| Width | 1,755 mmcorrect |
| Height | 2,497 mmcorrect |
| Wheelbase | 1,860 mmcorrect |
| Unladen weight | 1,755 kgcorrect |
Working data
| Lifting capacity | 1,250 kgcorrect |
|---|---|
| Fuel tank capacity | 40 lcorrect |
Where this model stands
Power-to-weight ratio: 17.1 kW/t (30 kW / 1.8 t)
Power class: Universal (40–100 hp)
Stronger than 26% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Compact Farmall 40C have?
The Case IH Compact Farmall 40C delivers 40.2 hp.
How much does the Case IH Compact Farmall 40C weigh?
The unladen weight is 1,755 kg.
What engine does the Case IH Compact Farmall 40C have?
4 cylinders, 2,216 cm³ displacement, Diesel.
How much does the rear linkage of the Case IH Compact Farmall 40C lift?
The rear linkage lifts 1,250 kg.
What are the dimensions of the Case IH Compact Farmall 40C?
3,254 mm × 1,755 mm × 2,497 mm.
When was the Case IH Compact Farmall 40C built?
Production years: 2014–2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
