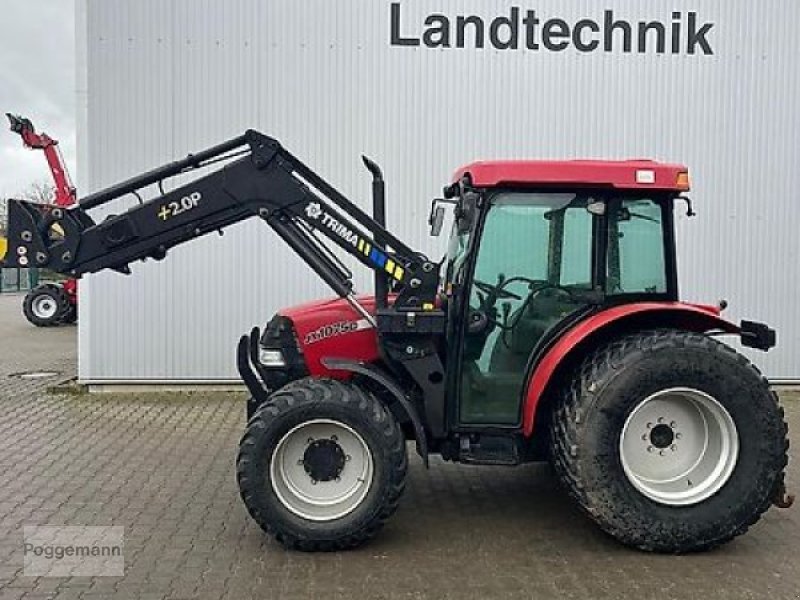

Case IH JX 1075 C

Built: 2003–2008 · Series: JXC-Baureihe

More machines from model year 2003

Source: https://www.technikboerse.com/haendler/poggemann-gmbh-493003

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH JX 1075 C is a model in the JXC series. Production: 2003–2008. The engine delivers 76 hp (55.9 kW), has 3 cylinders, with a displacement of 2,931 cm³. Torque is 273 Nm. Rated speed is 2,300 rpm. The machine is 3,440 mm long, 1,867 mm wide and 2,410 mm high. The unladen weight is 2,685 kg. The wheelbase measures 2,130 mm. Ground clearance is 350 mm. Top speed is 30 km/h. The tank holds 75 litres. Transmission: 16 V/16 R, 32 V/16 R and 44 V/16 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 11.2 R 24 AS), rear 16.9 R 30 AS. The fuel is Diesel/RME. The bore measures 104 mm. The stroke is 115 mm. Maximum torque is reached at 1,421 rpm. Construction: unit construction (no separate frame). The linkage is category I/II. The PTO runs at 540/540E rpm. The JXC-Baureihe series covers 3 models. Rated output within it ranges from 55 to 76 hp; the JX 1075 C sits at the top of that range with 76 hp. Its immediate neighbours are the JX 1070 C below it with 72 hp. Unladen weight within it ranges from 2,685 to 3,165 kg; here the JX 1075 C sits at the bottom of that range with 2,685 kg. 1222 Case IH models across 76 series are on record.

Case IH JXC series, JX 1060 C to 1075 C – compact three-cylinder diesels capable of running on RME: 40.5 to 55.9 kW, 2,931 cm³ displacement, 2,685 to 3,165 kg

The JX series of Case IH with the suffix C covers the compact general-purpose tractor class; the types JX 1060 C, JX 1070 C and JX 1075 C share the same three-cylinder engine of 2,931 cm³ displacement, the four-digit number ordering the power step. At Case IH, the JX designation generally stands for the compact general-purpose tractor class, while the attached number grades the engine power within the series.

Read on 3 more paragraphs

The register lists 3 versions with 40.5 to 55.9 kW (55 to 76 hp) from three-cylinder diesel engines of a constant 2,931 cm³ displacement at a constant 2,300 rpm, torque of 199 to 273 Nm, capable of running on diesel and rapeseed methyl ester (RME/biodiesel). Unladen weights range from 2,685 to 3,165 kg, lengths from 3,440 to 3,662 mm, at a width of 1,867 mm and a height of 2,410 mm.

As compact, versatile general-purpose tractors, the JXC series is aimed at smaller and medium-sized mixed farms as well as municipalities and contractors needing a manoeuvrable tractor for yard, field and haulage work. The engines' RME compatibility allowed running on regionally produced rapeseed oil fuel, which was of particular interest to agricultural cooperatives.

When buying used, what counts is the operating hours and service history of the three-cylinder engine, the condition of clutch and gearbox, the function of hydraulics and PTO, and corrosion on the cab and panels; parts run through the Case IH dealer network.

Sources: SpecCodex register, model data: Case IH JXC-Baureihe, Case IH (CNH Industrial, Hersteller)

Technical data

Engine

Fuel	Diesel/RMEcorrect
Power	76 hp (55.9 kW)correct
Rated speed	2,300 rpmcorrect
Torque	273 Nmcorrect
Speed at max. torque	1,421 rpmcorrect
Cylinders	3correct
Displacement	2,931 cm³correct
Bore	104 mmcorrect
Stroke	115 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,440 mmcorrect
Width	1,867 mmcorrect
Height	2,410 mmcorrect
Wheelbase	2,130 mmcorrect
Ground clearance	350 mmcorrect
Unladen weight	2,685 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	16 V/16 R, 32 V/16 R and 44 V/16 Rcorrect
Front tyres	7.50-16 ASF (A: 11.2 R 24 AS)correct
Rear tyres	16.9 R 30 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	75 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Other data

Linkage category	Cat I/IIcorrect
PTO speed	540/540E rpmcorrect

Where this model stands

Power-to-weight ratio: 20.8 kW/t (56 kW / 2.7 t)

Power class: Universal (40–100 hp)

Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH JX 1075 C have?

The Case IH JX 1075 C delivers 76 hp.

How much does the Case IH JX 1075 C weigh?

The unladen weight is 2,685 kg.

What engine does the Case IH JX 1075 C have?

3 cylinders, 2,931 cm³ displacement, Diesel/RME.

How fast does the Case IH JX 1075 C go?

Top speed is 30 km/h.

What are the dimensions of the Case IH JX 1075 C?

3,440 mm × 1,867 mm × 2,410 mm.

When was the Case IH JX 1075 C built?

Production years: 2003–2008.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
