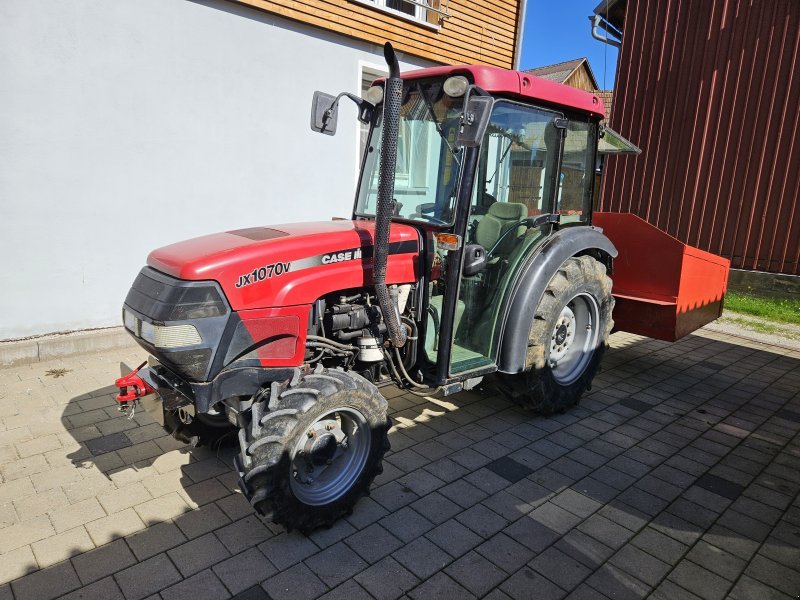

Case IH (cnh) JX 1070 C

Lata produkcji: 2003–2008 · Seria: JXC-Baureihe

Dane techniczne

ConstructionBlockbauweise
CoolingWasserkühlung
Cylinders3
Displacement cm32931 cm3
Drive typeHeck- oder Allradantrieb
FuelDiesel/RME
Gearbox16 V/16 R oder 32 V/16 R
Ground clearance mm353 mm
Height mm2410 mm
Length mm3662 mm
Power km72 KM
Power kw53 kW
Rated rpm2.300 obr./min
Tires front7.50-16 ASF (A: 11.2 R 24 AS)
Tires rear16.9 R 30 AS
Top speed kmh30 km/h
Weight kg2685 kg
Wheelbase mm2065 mm
Width mm1867 mm
