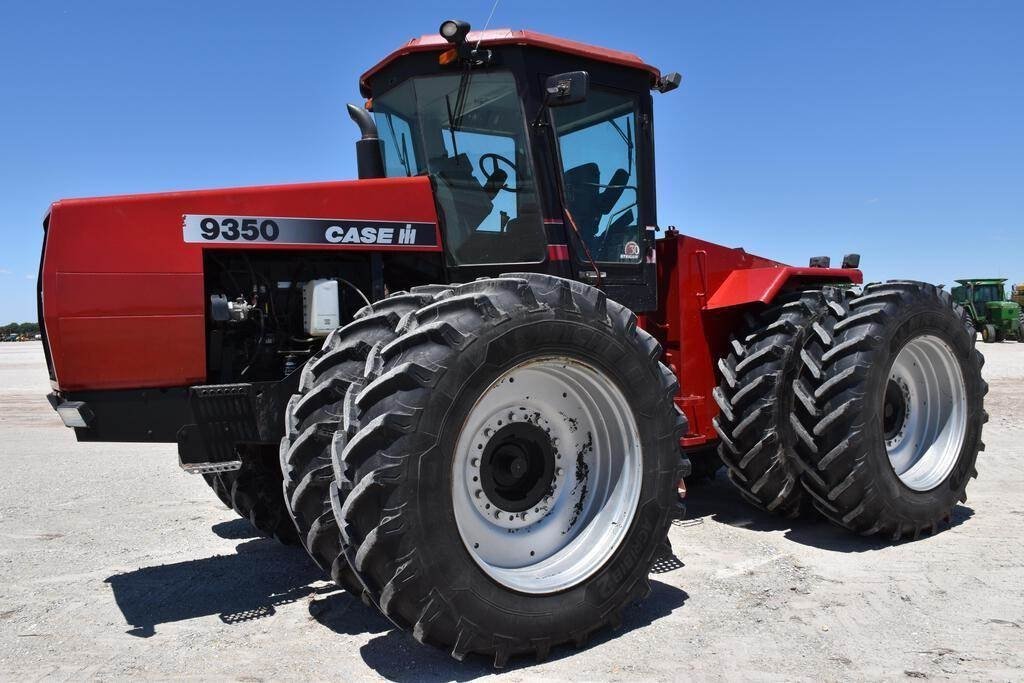

Case IH 9350
Built: 1995–2000 · Series: 9300 er-Baureihe
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH 9300 series – articulated Steiger tractors from Fargo: six-cylinder engines up to 14,016 cm³, 176 to 294 kW, Cummins N14 units, models 9330 to 9380
The Case IH 9300 series were articulated Steiger tractors, built at the American plant in Fargo, North Dakota. The Steiger name comes from the original manufacturer of the big articulated tractors, whose plant Case later took over. The register covers the 9330, 9350, 9370 and 9380 models, whose four-digit type numbers rise with the power class; they are driven by six-cylinder diesel engines, some fitted with the Cummins N14 unit.
Read on 3 more paragraphs
The register holds 4 versions rated at 176.5 to 294.2 kW (240 to 400 hp), with six-cylinder engines of 8,268 to 14,016 cm³. Weights range from 10,727 to 15,325 kg, lengths from 6,410 to 7,535 mm, widths from 2,890 to 4,023 mm and heights from 3,269 to 3,627 mm. Torque falls between 1,022 and 1,833 Nm at 2,100 to 2,200 rpm, with lift capacity reaching up to 7,711 kg.
As articulated four-wheel-drive tractors with four equally sized wheels, the 9300 series was built for the heaviest draft work on large North American arable land – primary tillage, big cultivators and front-mounted seeding equipment. It competed with the 4WD ranges from John Deere and Versatile in the same power class.
When buying used, this class of big tractor calls for checking the articulation joint and driveshafts, the tightness of the hydraulic and lift systems, and wear on the dual tyres. The engine and injection system of the Cummins units should be checked for smooth running and oil consumption; spare parts run through the Case IH dealer network and specialist suppliers for large tractors.
Sources: SpecCodex register, model data: Case IH 9300 er-Baureihe, Case IH
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 310 hp (228 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 1,378 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 10,820 cm³correct |
| Bore | 125 mmcorrect |
| Stroke | 147 mmcorrect |
| Compression ratio | 16.1correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 7,535 mmcorrect |
|---|---|
| Width | 3,477 mmcorrect |
| Height | 3,434 mmcorrect |
| Wheelbase | 3,366 mmcorrect |
| Ground clearance | 297 mmcorrect |
| Unladen weight | 13,028 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 R and 24 V/6 Rcorrect |
| Forward gears | 12correct |
| Reverse gears | 3correct |
| Front tyres | 18.4 R 42 AScorrect |
| Rear tyres | 18.4 R 42 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 757 lcorrect |
|---|
Origin and approval
| Construction | articulated framecorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 17.5 kW/t (228 kW / 13 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH 9350 have?
The Case IH 9350 delivers 310 hp.
How much does the Case IH 9350 weigh?
The unladen weight is 13,028 kg.
What engine does the Case IH 9350 have?
6 cylinders, 10,820 cm³ displacement, Diesel.
How fast does the Case IH 9350 go?
Top speed is 30 km/h.
What are the dimensions of the Case IH 9350?
7,535 mm × 3,477 mm × 3,434 mm.
When was the Case IH 9350 built?
Production years: 1995–2000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
