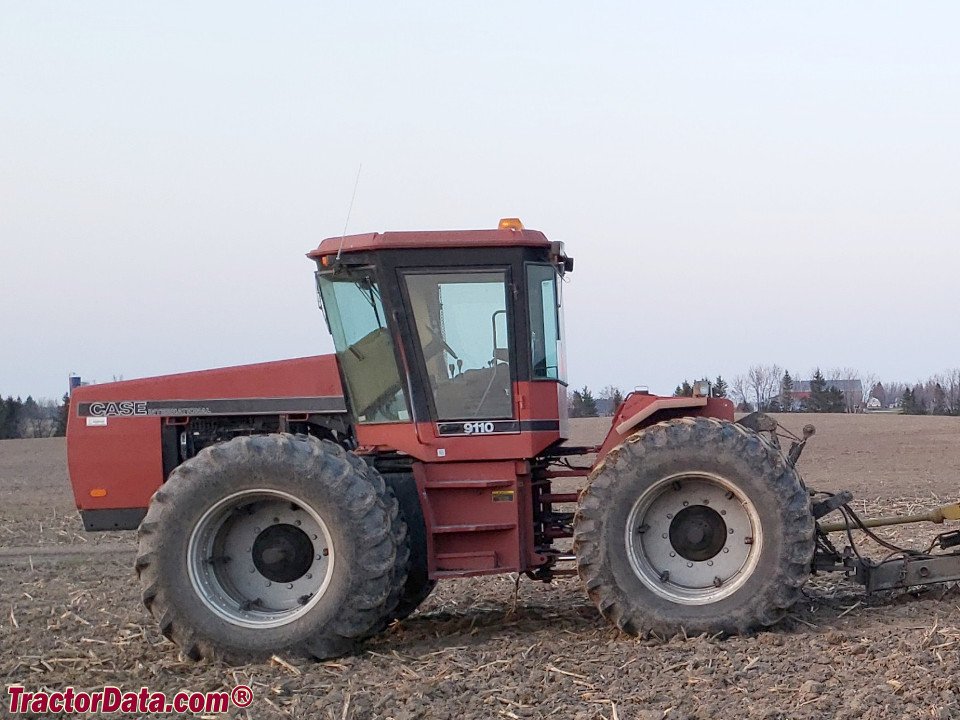

Case IH 9110
Built: 1987–1990 · Series: 9100 er-Baureihe
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH 9100 series (1987–1990) – the first Steigers under Case IH from Fargo: 9110 to 9180, the last digits as power step, Case and Cummins six-cylinders of 8.3 to 14 litres, 147 to 276 kW, 9.1 to 16.1 t
The 9100 series was the first articulated-tractor generation Case IH built under its own name at the Fargo plant in North Dakota after the takeover of Steiger in 1986 – the successors to the Steiger models Puma, Cougar, Panther and Tiger with which the prairie maker had built up the articulated-tractor market since the 1960s, now in red and with Case IH nomenclature. The type logic: 91 marks the range, the last two digits the power step – 9110 about 200 hp, 9130 about 235, 9150 about 280, 9170 about 335, 9180 about 375 hp – the versions comprise wheeled articulated tractors on duals or triples. The engines are the Case six-cylinder 6TA-830 of 8.3 litres in the small and Cummins six-cylinders LTA-10 and NTA-855 of 10 and 14 litres in the big models, at 2,100 rpm; the transmissions are 12-speed powershifts or 24-speed synchromesh gearboxes.
Read on 3 more paragraphs
The register lists 5 versions with 147.1 to 275.8 kW from six-cylinders of 8,268 to 14,016 cm³, torque up to 1,177 Nm, unladen weights from 9,140 to 16,140 kg, lengths from 6,210 to 7,160 mm, widths from 3,040 to 3,890 mm and heights from 3,290 to 3,870 mm.
The 9100s are the bridge between Steiger and Case IH – the last articulated tractors that carried Steiger designs unchanged under the new badge; in 1990 the 9200 series followed with a revised cab.
On used tractors, operating hours, engine (Cummins parts available worldwide), transmission (powershift clutches), articulation joint and steering cylinders, axles and tyres, hydraulics count; parts run through CNH and Cummins.
Sources: SpecCodex register, model data: Case IH 9100er-Baureihe, Case IH (CNH, Hersteller, Werk Fargo)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 200 hp (147.1 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 752 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 135 mmcorrect |
| Compression ratio | 17.3correct |
| Injection pressure | 205 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,210 mmcorrect |
|---|---|
| Width | 3,040 mmcorrect |
| Height | 3,290 mmcorrect |
| Wheelbase | 3,058 mmcorrect |
| Ground clearance | 368 mmcorrect |
| Unladen weight | 9,140 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/2 Rcorrect |
| Forward gears | 12correct |
| Reverse gears | 2correct |
| Front tyres | 18.4-38 AScorrect |
| Rear tyres | 18.4-38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 435 lcorrect |
|---|
Origin and approval
| Construction | articulated framecorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.1 kW/t (147 kW / 9.1 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH 9110 have?
The Case IH 9110 delivers 200 hp.
How much does the Case IH 9110 weigh?
The unladen weight is 9,140 kg.
What engine does the Case IH 9110 have?
6 cylinders, 8,268 cm³ displacement, Diesel.
How fast does the Case IH 9110 go?
Top speed is 30 km/h.
What are the dimensions of the Case IH 9110?
6,210 mm × 3,040 mm × 3,290 mm.
When was the Case IH 9110 built?
Production years: 1987–1990.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
