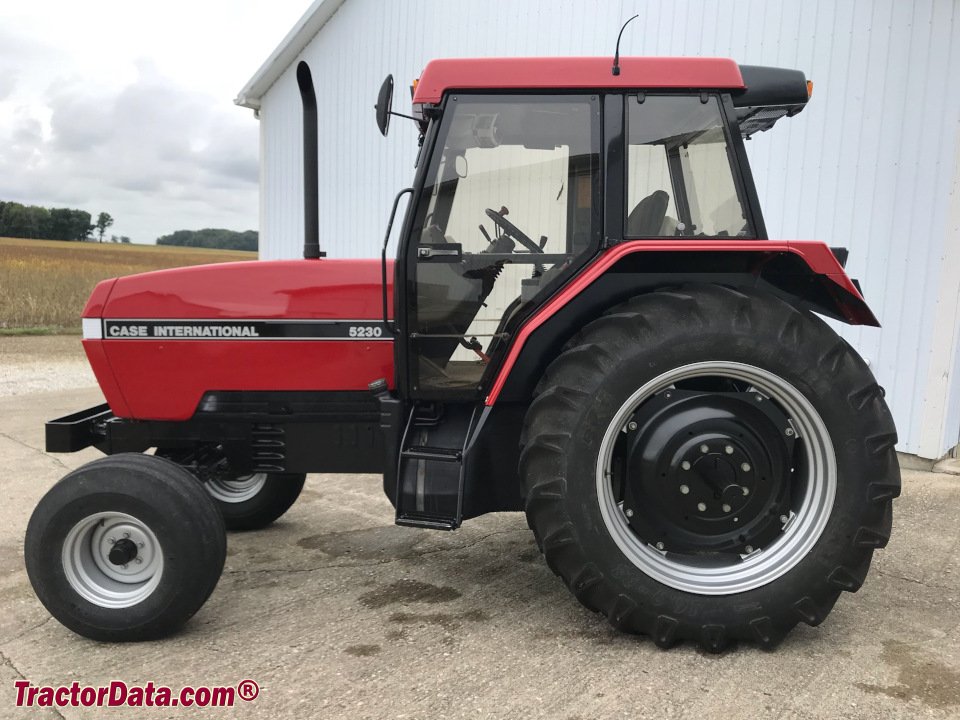

Case IH 5230 (DT)

Built: 06/1989–06/1997 · Series: 5200-Baureihe

More machines from model year 1989

Source: https://www.tractordata.com/farm-tractors/001/1/8/1188-casei

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH 5230 (DT) belongs to the 5200 series. Production: 06/1989–06/1997. The engine delivers 99 hp (72.8 kW), has 6 cylinders, with a displacement of 5,883 cm³. Torque is 355 Nm. Rated speed is 2,200 rpm. The machine is 4,390 mm long, 2,438 mm wide and 2,695 mm high. The unladen weight is 4,480 kg. The wheelbase measures 2,634 mm. Ground clearance is 561 mm. Top speed is 25 km/h. Transmission: 16 V/12 R or 24 V/20 R. The engine is water-cooled. Tyres: front 7.50-18 ASF (DT: 14.9 R 24 AS), rear 18.4-34 AS (DT: 18.4 R 38 AS). The fuel is diesel. The bore measures 102 mm. The stroke is 120 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,107 rpm. Construction: semi-frame construction. Rated output across the Case IH range ranges from 31.4 to 500 hp; the 5230 (DT) sits at the bottom of that range with 99 hp. Its immediate neighbours are the JX 100 U (A) below it with 97 hp and the 5130 MAXXUM above it with 100 hp. Rated output across the Case IH range ranges from 23.1 to 373 kW; here the 5230 (DT) sits at the bottom of that range with 72.8 kW. 1222 Case IH models across 76 series are on record.

Case IH 5220 and 5230 (DT) – four-wheel-drive universal tractors of the 5200 range: four- and six-cylinder diesel engines of 69.1 to 72.8 kW, 321 to 355 Nm, 4,000 to 4,480 kg

Case IH's 5200 range belongs to the Maxxum generation of the 1990s and is represented here by the 5220 (DT) and 5230 (DT) types; at Case IH, the DT suffix stands for Dual Traction, the engageable four-wheel drive that distinguishes these models from the two-wheel-drive versions in the range. The number sequence orders the models by rising power within the 5200 series.

Read on 3 more paragraphs

The register lists here 2 versions with 69.1 to 72.8 kW from four- to six-cylinder diesel engines of 3,922 to 5,883 cm³ displacement, torques from 321 to 355 Nm at a rated speed of 2,200 rpm, weights from 4,000 to 4,480 kg, lengths from 4,140 to 4,390 mm, widths from 2,025 to 2,438 mm and heights from 2,672 to 2,695 mm.

With four-wheel drive and this power class, the 5200 range occupied the mid-to-upper segment of the Case IH line-up and competed with comparable four-wheel-drive tractors from John Deere, Massey Ferguson and Fendt; the main use was on mixed arable farms needing pulling power for heavy cultivation and transport.

Buying one of these four-wheel-drive tractors used, the condition and play of the front axle and the four-wheel-drive clutch, the tightness of the engine and hydraulics, and the condition of the clutch and gearbox all matter; the electronics and wiring loom should also be checked for faults. Spare parts run through the Case IH dealer network, which remains well set up for this range.

Sources: SpecCodex register, model data: Case IH 5200-Baureihe, Case IH

Technical data

Engine

Fuel	dieselcorrect
Power	99 hp (72.8 kW)correct
Rated speed	2,200 rpmcorrect
Torque	355 Nmcorrect
Speed at max. torque	1,107 rpmcorrect
Cylinders	6correct
Displacement	5,883 cm³correct
Bore	102 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,390 mmcorrect
Width	2,438 mmcorrect
Height	2,695 mmcorrect
Wheelbase	2,634 mmcorrect
Ground clearance	561 mmcorrect
Unladen weight	4,480 kgcorrect

Drivetrain and chassis

Drive	rear- and four-wheel drivecorrect
Gearbox	16 V/12 R or 24 V/20 Rcorrect
Front tyres	7.50-18 ASF (DT: 14.9 R 24 AS)correct
Rear tyres	18.4-34 AS (DT: 18.4 R 38 AS)correct
Top speed	25 km/hcorrect

Origin and approval

Construction	semi-frame constructioncorrect

Where this model stands

Power-to-weight ratio: 16.2 kW/t (73 kW / 4.5 t)

Power class: Universal (40–100 hp)

Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH 5230 (DT) have?

The Case IH 5230 (DT) delivers 99 hp.

How much does the Case IH 5230 (DT) weigh?

The unladen weight is 4,480 kg.

What engine does the Case IH 5230 (DT) have?

6 cylinders, 5,883 cm³ displacement, Diesel.

How fast does the Case IH 5230 (DT) go?

Top speed is 25 km/h.

What are the dimensions of the Case IH 5230 (DT)?

4,390 mm × 2,438 mm × 2,695 mm.

When was the Case IH 5230 (DT) built?

Production years: 06/1989–06/1997.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
