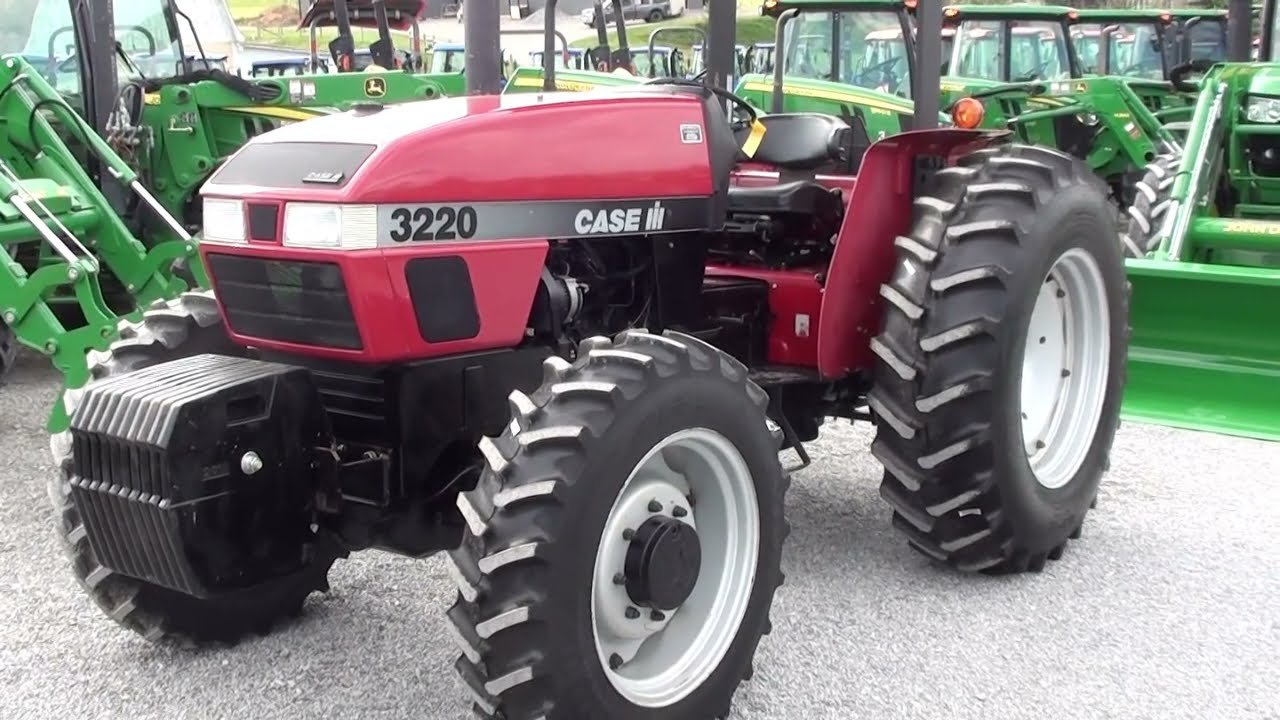

Case IH 3220 (DT)

Built: 1993–1998 · Series: 3200/4200

More machines from model year 1993

Source: https://www.lectura-specs.com/en/model/agricultural-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3200/4200 series from Case IH includes the 3220 (DT). Production: 1993–1998. The engine delivers 52 hp (38.2 kW), has 3 cylinders, with a displacement of 2,933 cm³. Torque is 182 Nm. Rated speed is 2,180 rpm. The machine is 3,535 mm long, 1,840 mm wide and 2,376 mm high. The unladen weight is 2,675 kg. The wheelbase measures 2,027 mm. Ground clearance is 236 mm. Top speed is 30 km/h. Transmission: 8 V/4 R, 16 V/8 R and 8 V/8 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (DT: 11.2 R 24 AS), rear 13.6 R 36 AS. The fuel is diesel. The bore measures 98.4 mm. The stroke is 128.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,400 rpm. Construction: unit construction (no separate frame). Injection pressure is 225 bar. The 3200/4200 series covers 4 models. Rated output within it ranges from 45 to 90 hp; the 3220 (DT) sits in the lower part of that range with 52 hp. Its immediate neighbours are the 3210 below it with 45 hp and the 3230 above it with 60 hp. Unladen weight within it ranges from 2,675 to 3,035 kg; here the 3220 (DT) sits at the bottom of that range with 2,675 kg. 1222 Case IH models across 76 series are on record.

Case IH 3200/4200 – British utility tractors from Doncaster: three- and four-cylinder diesels, 2,536 to 4,389 cm³, 33 to 66 kW, models 3210 to 4240 PRO

The Case IH 3200 and 4200 were utility tractors that Case IH built during the 1990s at its English plant in Doncaster. The type designation is a four-digit number; suffixes such as DT on the 3220 or PRO on the 4240 mark individual versions within each range. The register lists the 3210, 3220 (DT), 3230 and 4240 (PRO) models, powered by three- and four-cylinder diesel engines.

Read on 3 more paragraphs

The register holds 4 versions rated at 33.1 to 66.2 kW (45 to 60 hp), with engines of 2,536 to 4,389 cm³ and three to four cylinders. Weights range from 2,675 to 3,035 kg, lengths from 3,535 to 3,759 mm, widths from 1,840 to 1,860 mm and heights from 2,376 to 2,666 mm. Torque falls between 159 and 220 Nm at 2,180 to 2,400 rpm.

As utility tractors, the 3200 and 4200 targeted smaller and medium-sized farms that needed a manoeuvrable, versatile tractor for yard work, haulage and light field tasks. They competed directly with comparable utility models from Ford, Massey Ferguson and Deutz-Fahr in the same power class.

When buying used, check the engine and injection pump, clutch and gearbox, and look for rust on panels, mudguards and the cab. Hydraulic hoses and the PTO should be checked for leaks and wear; spare parts for the smaller Case IH utility ranges are available through the Case IH dealer network and independent agricultural parts suppliers.

Sources: SpecCodex register, model data: Case IH 3200/4200, Case IH

Technical data

Engine

Fuel	dieselcorrect
Power	52 hp (38.2 kW)correct
Rated speed	2,180 rpmcorrect
Torque	182 Nmcorrect
Speed at max. torque	1,400 rpmcorrect
Cylinders	3correct
Displacement	2,933 cm³correct
Bore	98.4 mmcorrect
Stroke	128.5 mmcorrect
Compression ratio	16correct
Injection pressure	225 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,535 mmcorrect
Width	1,840 mmcorrect
Height	2,376 mmcorrect
Wheelbase	2,027 mmcorrect
Ground clearance	236 mmcorrect
Unladen weight	2,675 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	8 V/4 R, 16 V/8 R and 8 V/8 Rcorrect
Front tyres	7.50-16 ASF (DT: 11.2 R 24 AS)correct
Rear tyres	13.6 R 36 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 14.3 kW/t (38 kW / 2.7 t)

Power class: Universal (40–100 hp)

Stronger than 36% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH 3220 (DT) have?

The Case IH 3220 (DT) delivers 52 hp.

How much does the Case IH 3220 (DT) weigh?

The unladen weight is 2,675 kg.

What engine does the Case IH 3220 (DT) have?

3 cylinders, 2,933 cm³ displacement, Diesel.

How fast does the Case IH 3220 (DT) go?

Top speed is 30 km/h.

What are the dimensions of the Case IH 3220 (DT)?

3,535 mm × 1,840 mm × 2,376 mm.

When was the Case IH 3220 (DT) built?

Production years: 1993–1998.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
