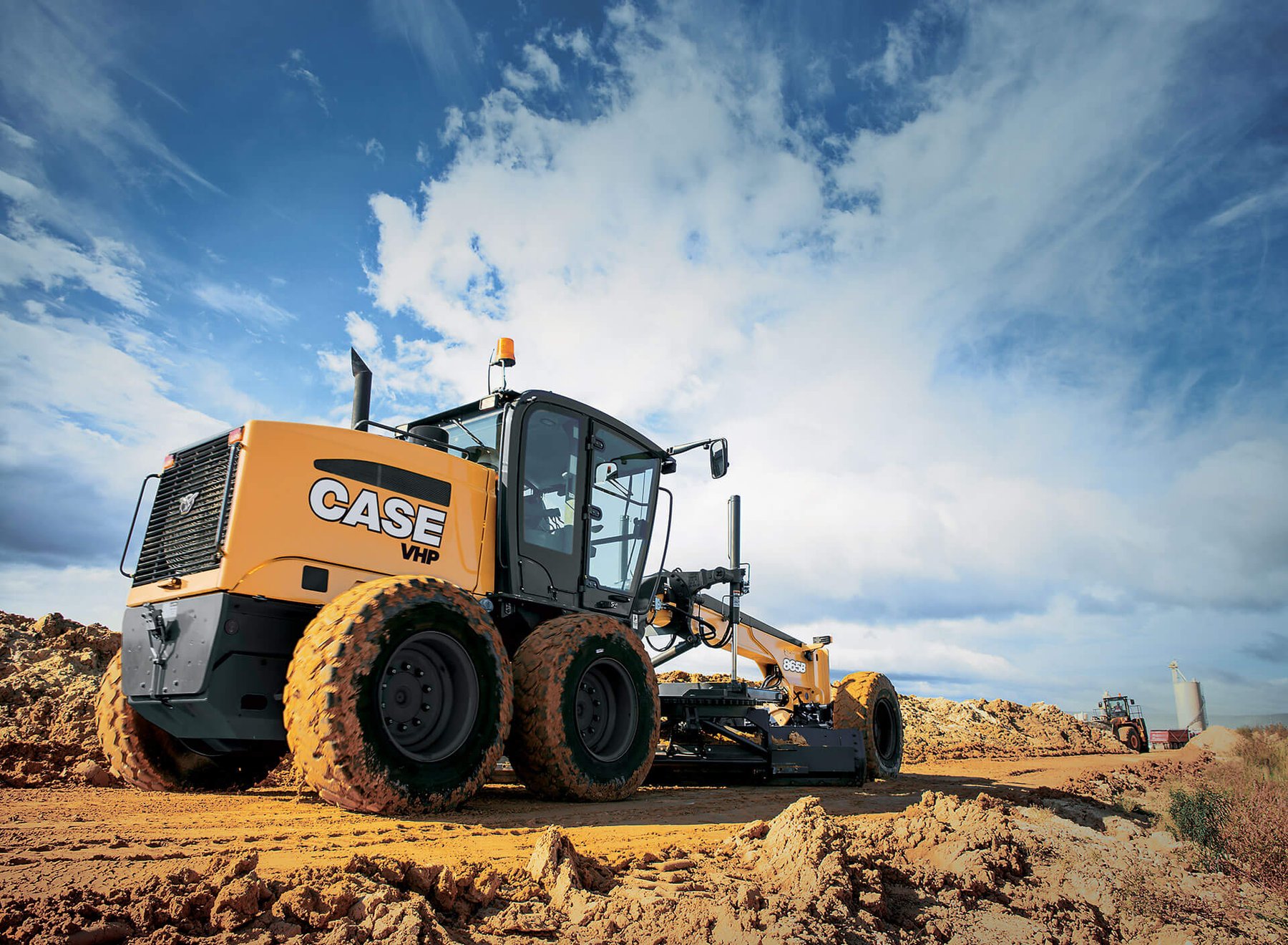

Case 885B DHP

Series: Case Motor Grader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case Motor Grader series from Case includes the 885B DHP. The engine delivers 163.3 kW, has 6 cylinders, with a displacement of 6,700.7 cm³. Rated speed is 2,200 rpm. The wheelbase measures 6,221 mm. Ground clearance is 640.1 mm. The tank holds 340.7 litres. The hydraulic tank holds 179.8 litres. The cooling system holds 39.7 litres. The electrical system runs on 24 V. The engine fitted is the FPT 6,7L. Tyre size: 20,5-25. Rated output across the Case range ranges from 8.9 to 475.8 kW; the 885B DHP sits in the lower part of that range with 163.3 kW. Its immediate neighbours are the 2050M below it with 159.6 kW and the 865B VHP above it with 164.1 kW. 620 Case models across 22 series are on record. The model is listed under Motor graders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFPT 6.7Lcorrect
Power163.3 kWcorrect
Rated speed2,200 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
AspirationTurbocharged with Aftercoolercorrect
Coolant capacity39.7 lcorrect

Dimensions and weights

Length8,534.4correct
Wheelbase6,221correct
Ground clearance640.1correct

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Tyre size20.5-25correct
System voltage24 Vcorrect

Working data

Hydraulic oil capacity179.8 lcorrect
Fuel tank capacity340.7 lcorrect

Frequently asked questions

How much power does the Case 885B DHP have?

The Case 885B DHP delivers 163 kW.

What engine does the Case 885B DHP have?

6 cylinders, 6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
