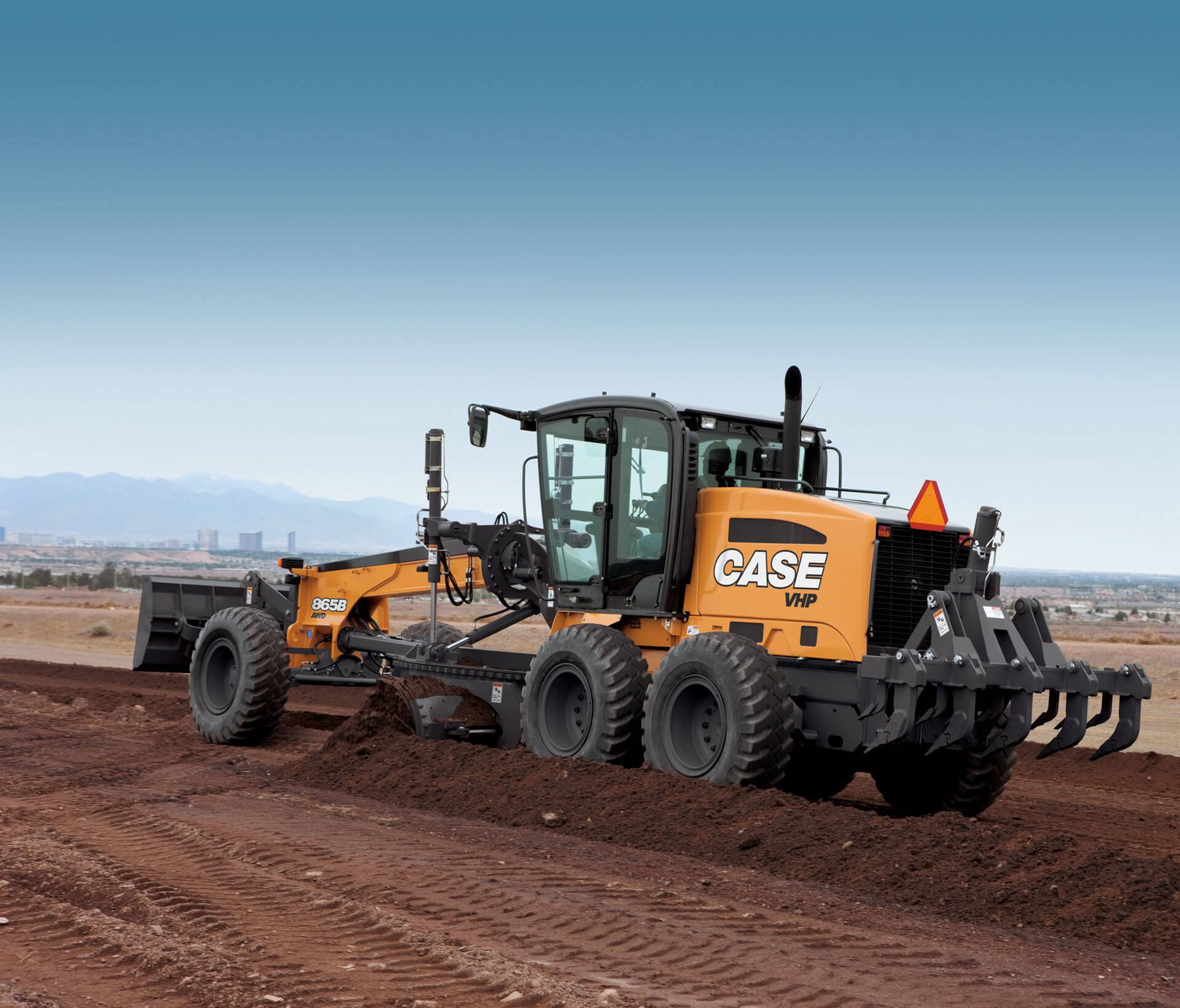

Case 865B VHP

Series: Case Motor Grader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 865B VHP, Case offers a model from the Case Motor Grader series. The engine delivers 223.1 hp (164.1 kW), has 6 cylinders, with a displacement of 6,702.3 cm³. Rated speed is 2,200 rpm. The wheelbase measures 6,221 mm. The tank holds 340.7 litres. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 190 litres. The cooling system holds 39.7 litres. The electrical system runs on 24 V. The engine fitted is the FPT F4HE9687C. Tyre size: 17,5-25. The Case Motor Grader series covers 9 models. Rated output within it ranges from 162.2 to 237.2 hp; the 865B VHP sits in the upper part of that range with 223.1 hp. Its immediate neighbours are the 885 below it with 207.8 hp and the 885B above it with 237.2 hp. 620 Case models across 22 series are on record. The model is listed under Motor graders. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFPT F4HE9687Ccorrect
Power223.1 hp (164.1 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement6,702.3 cm³correct
AspirationTurbocharged with air to air coolercorrect
Coolant capacity39.7 lcorrect

Dimensions and weights

Length8,534.4correct
Wheelbase6,221correct

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Tyre size17.5-25correct
System voltage24 Vcorrect

Working data

Hydraulic oil capacity190 lcorrect
Fuel tank capacity340.7 lcorrect

Frequently asked questions

How much power does the Case 865B VHP have?

The Case 865B VHP delivers 223 hp.

What engine does the Case 865B VHP have?

6 cylinders, 6,702 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
