Case 865 VHP

Series: Case Motor Grader

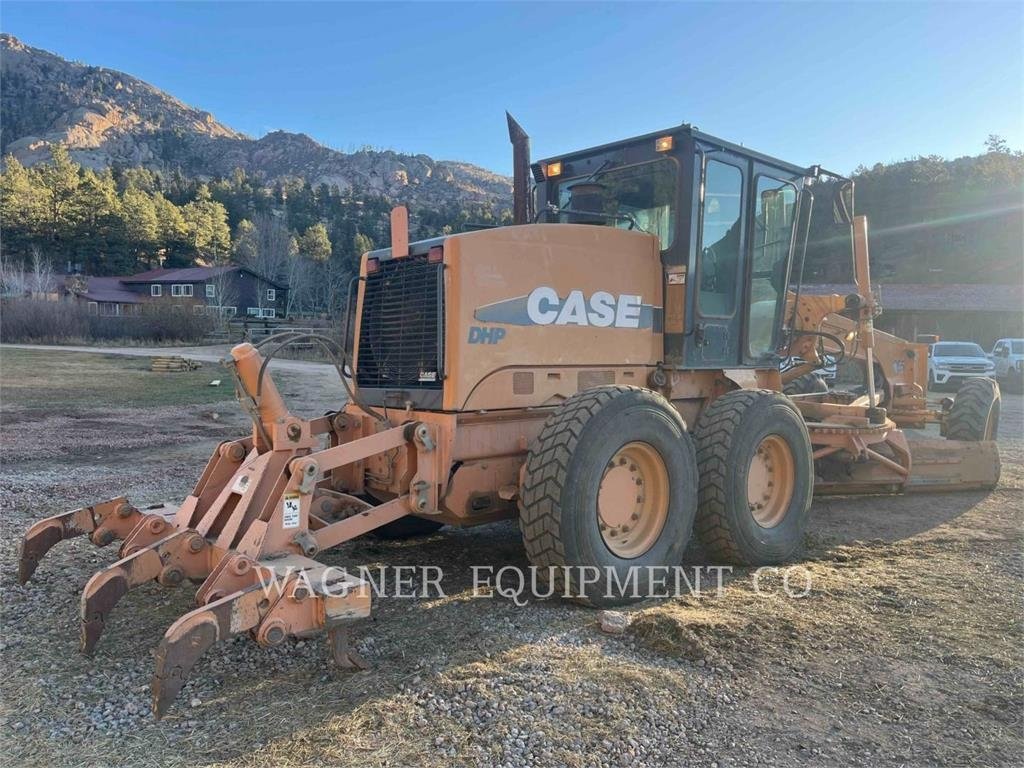

The photo shows the 865 DHP from the same series. Source: https://catused.cat.com/pt/equipamentos-construcao/motonivel

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case 865 VHP belongs to the Case Motor Grader series. The engine delivers 207.8 hp, has 6 cylinders, with a displacement of 6,735.1 cm³. Rated speed is 2,200 rpm. The wheelbase measures 6,227.1 mm. The tank holds 340.7 litres. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 190 litres. Working pressure is 420 bar. The cooling system holds 39.7 litres. The electrical system runs on 24 V. The engine fitted is the QSB-6,7. Tier III certified Electronic control. Tyre size: 14,0 x 24 12PR TL G2 Firestone. The Case Motor Grader series covers 9 models. Rated output within it ranges from 162.2 to 237.2 hp; the 865 VHP sits in the upper part of that range with 207.8 hp. Its immediate neighbours are the 865 DHP below it with 202.8 hp and the 865B above it with 223.1 hp. 620 Case models across 22 series are on record. The model is listed under Motor graders. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSB-6.7, Tier III certified Electronic controlcorrect
Power207.8 hpcorrect
Rated speed2,200 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement6,735.1 cm³correct
Aspirationturbocharged, air to air cooledcorrect
Coolant capacity39.7 lcorrect

Dimensions and weights

Length8,534.4correct
Wheelbase6,227.1correct

Drivetrain and chassis

Gearbox typedirect drive contershaft powershift transmissioncorrect
Tyre size14.0 x 24 12PR TL G2 Firestonecorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity190 lcorrect
Hydraulic pressure420correct
Fuel tank capacity340.7 lcorrect

Frequently asked questions

How much power does the Case 865 VHP have?

The Case 865 VHP delivers 208 hp.

What engine does the Case 865 VHP have?

6 cylinders, 6,735 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
