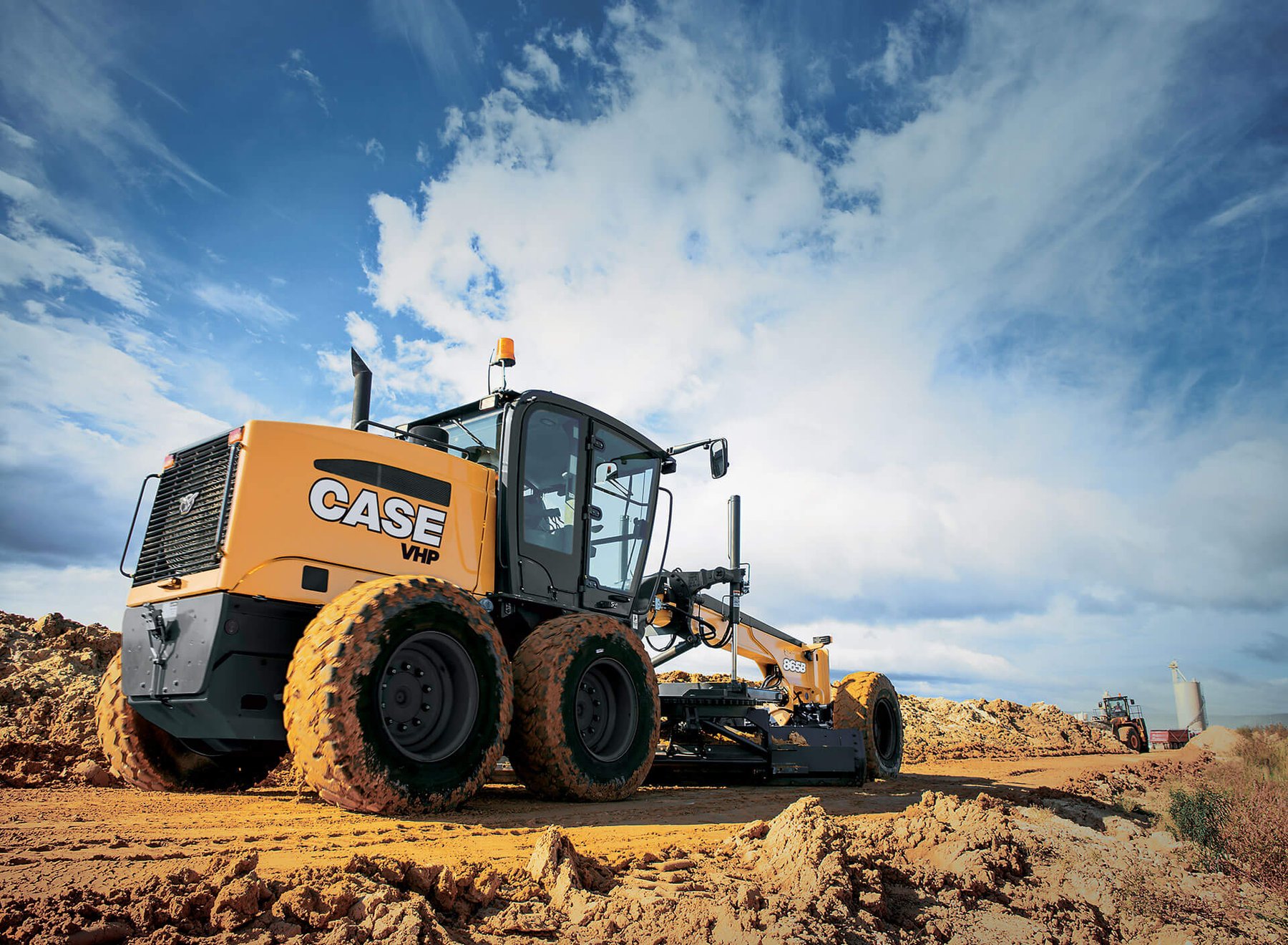

Case 885
Series: Case Motor Grader
The 885 from Case is part of the Case Motor Grader series. The engine delivers 207.8 hp, has 6 cylinders, with a displacement of 6,735.1 cm³. Rated speed is 2,200 rpm. The wheelbase measures 6,227.1 mm. Ground clearance is 640.1 mm. The tank holds 340.7 litres. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 190 litres. Working pressure is 420 bar. The cooling system holds 39.7 litres. The electrical system runs on 24 V. The engine fitted is the QSB 6,7. Tier III certified electronic control. Tyre size: 14,0 x 24 12PR TL G2 Firestone. The Case Motor Grader series covers 9 models. Rated output within it ranges from 162.2 to 237.2 hp; the 885 sits in the upper part of that range with 207.8 hp. Its immediate neighbours are the 865 DHP below it with 202.8 hp and the 865B above it with 223.1 hp. 620 Case models across 22 series are on record. The model is listed under Motor graders. 17 verified figures from 1 source are on file.
Technical data
Engine
| Engine model | QSB 6.7, Tier III certified electronic controlcorrect |
|---|---|
| Power | 207.8 hpcorrect |
| Rated speed | 2,200 rpmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,735.1 cm³correct |
| Aspiration | Turbocharged and Aftercooledcorrect |
| Coolant capacity | 39.7 lcorrect |
Dimensions and weights
| Length | 8,534.4correct |
|---|---|
| Wheelbase | 6,227.1correct |
| Ground clearance | 640.1correct |
Drivetrain and chassis
| Gearbox type | Power Shiftcorrect |
|---|---|
| Tyre size | 14.0 x 24 12PR TL G2 Firestonecorrect |
| System voltage | 24 Vcorrect |
Working data
| Hydraulic oil capacity | 190 lcorrect |
|---|---|
| Hydraulic pressure | 420correct |
| Fuel tank capacity | 340.7 lcorrect |
Frequently asked questions
How much power does the Case 885 have?
The Case 885 delivers 208 hp.
What engine does the Case 885 have?
6 cylinders, 6,735 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
