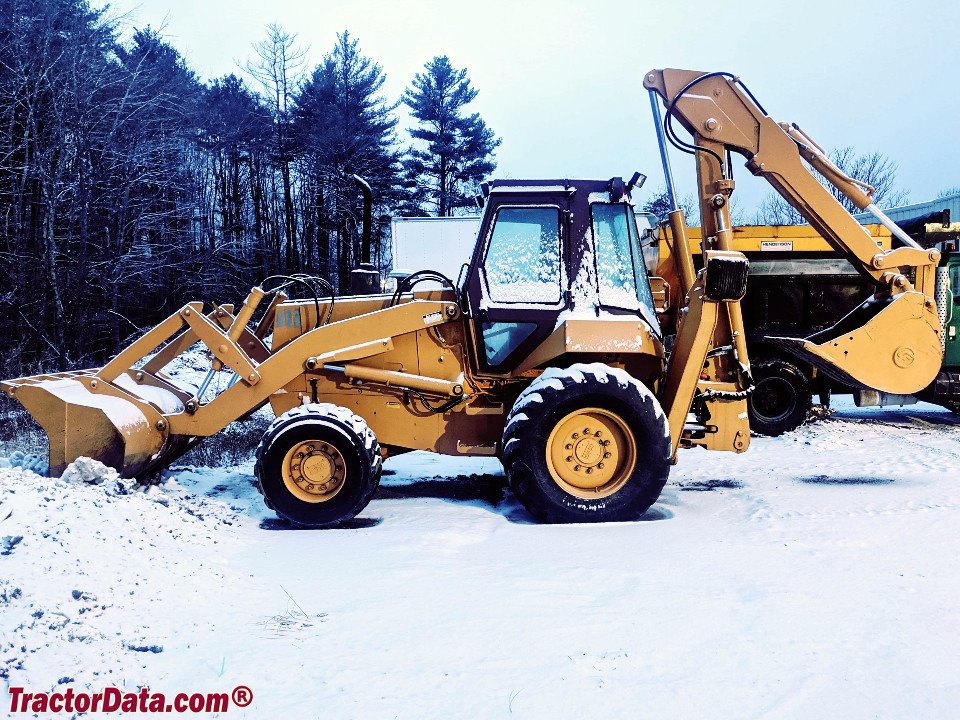

Case 780D

The 780D from Case is part of the Case Loader Backhoe series. The engine delivers 125.7 hp (83.5 kW), has 6 cylinders, with a displacement of 5,901 cm³. The engine comes from J.I. Case. Rated speed is 2,200 rpm. The wheelbase measures 2,200.7 mm. Ground clearance is 521.2 mm. The tank holds 162.8 litres. The gearbox has 3 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 119.2 l/min. The hydraulic tank holds 53.8 litres. Working pressure is 120.7 bar. The cooling system holds 25.7 litres. The electrical system runs on 12 V. The engine fitted is the 6T-590. The Case Loader Backhoe series covers 38 models. Rated output within it ranges from 42.1 to 125.7 hp; the 780D sits at the top of that range with 125.7 hp. Its immediate neighbours are the 780 below it with 121.7 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.
