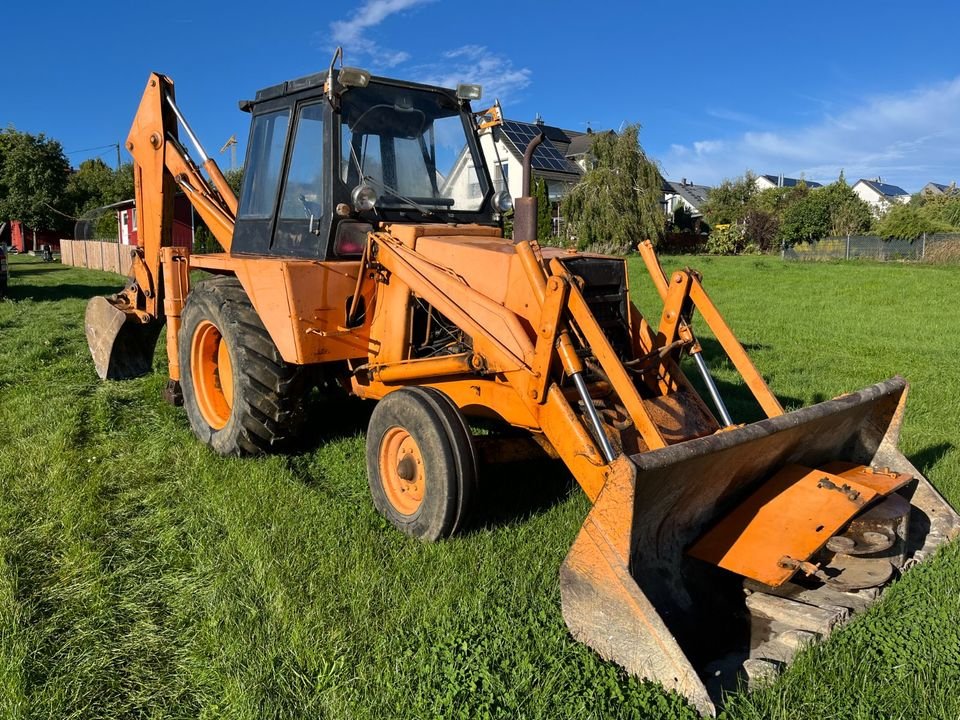

Case 580B

With the 580B, Case offers a model from the Case Loader Backhoe series. The engine delivers 50.7 hp (32.1 kW), has 4 cylinders. The engine comes from J.I. Case. Rated speed is 2,100 rpm. The wheelbase measures 1,990.3 mm. Ground clearance is 350.5 mm. The tank holds 83.3 litres. The gearbox has 8 forward gears. There are also 8 reverse gears. Maximum torque is reached at 1,900 rpm. The pump delivers 98.4 l/min. The hydraulic tank holds 41.6 litres. Working pressure is 151.7 bar. The cooling system holds 15.9 litres. The electrical system runs on 12 V. The engine fitted is the G188D. The Case Loader Backhoe series covers 38 models. Rated output within it ranges from 42.1 to 125.7 hp; the 580B sits at the bottom of that range with 50.7 hp. Its immediate neighbours are the 480C below it with 48.7 hp and the 480D above it with 52.7 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.
