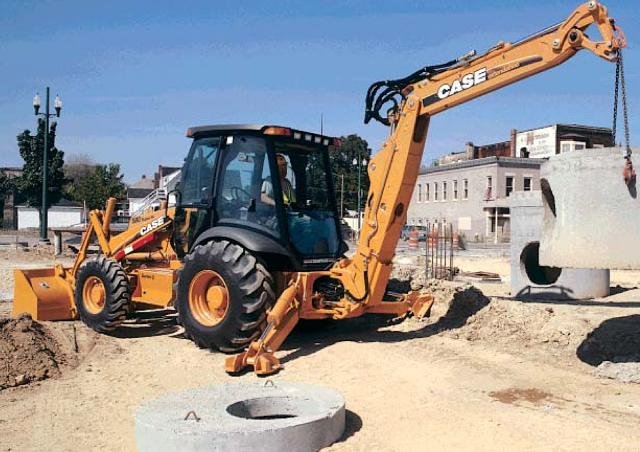

Case 580 Super M+ Series III

Series: Case Loader Backhoe

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case Loader Backhoe series from Case includes the 580 Super M+ Series III. The engine delivers 97.9 hp (71.1 kW), has 4 cylinders, with a displacement of 4,457.3 cm³. Rated speed is 2,200 rpm. The wheelbase measures 2,145.8 mm. Ground clearance is 368.8 mm. The tank holds 159 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 151 l/min. The hydraulic tank holds 117.3 litres. Working pressure is 206.8 bar. The cooling system holds 18.2 litres. The electrical system runs on 12 V. The engine fitted is the Family IV 445TA/E3. Tier III certified. The Case Loader Backhoe series covers 38 models. Rated output within it ranges from 42.1 to 125.7 hp; the 580 Super M+ Series III sits in the upper part of that range with 97.9 hp. Its immediate neighbours are the 590SL below it with 96.3 hp and the 580 Super N above it with 98.3 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFamily IV 445TA/E3, Tier III certifiedcorrect
Power97.9 hp (71.1 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,457.3 cm³correct
Aspirationturbochargedcorrect
Coolant capacity18.2 lcorrect

Dimensions and weights

Wheelbase2,145.8correct
Ground clearance368.8correct

Drivetrain and chassis

Gearbox type4-speed synchromesh with hydraulically actual clutchescorrect
Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow151 l/mincorrect
Hydraulic oil capacity117.3 lcorrect
Hydraulic pressure206.8correct
Fuel tank capacity159 lcorrect

Frequently asked questions

How much power does the Case 580 Super M+ Series III have?

The Case 580 Super M+ Series III delivers 97.9 hp.

What engine does the Case 580 Super M+ Series III have?

4 cylinders, 4,457 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
