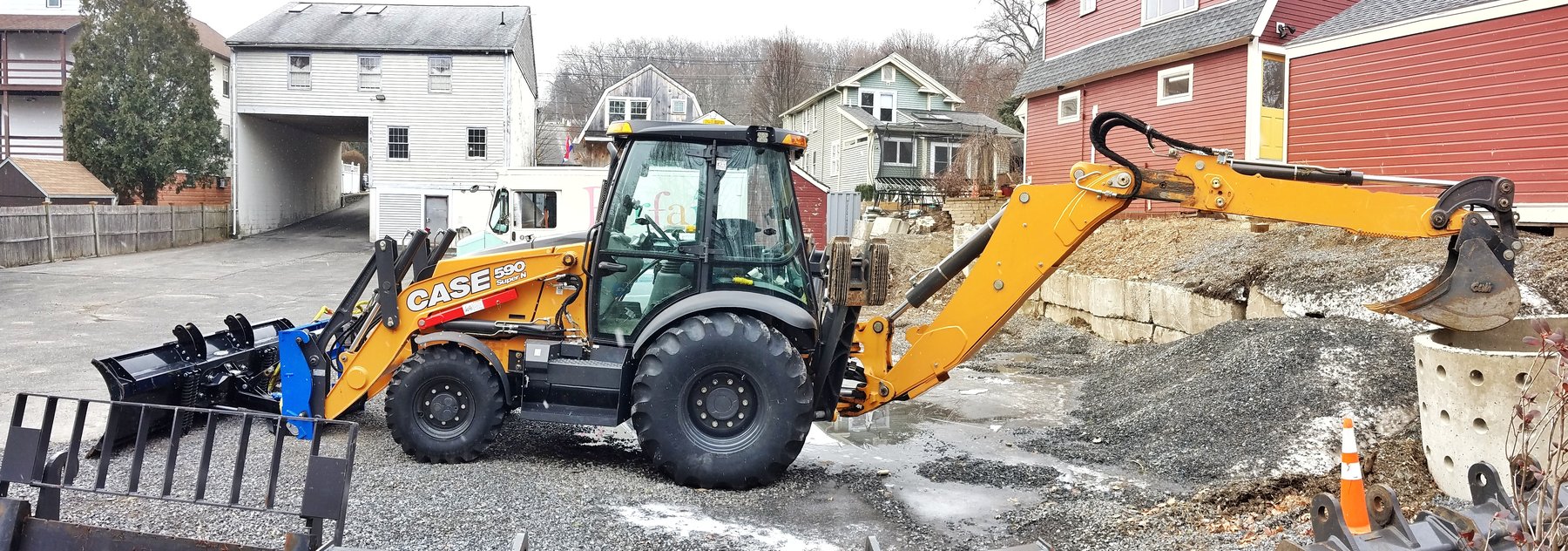

Case 590 Super N

Series: Case Loader Backhoe

Source: https://commons.wikimedia.org/w/index.php?curid=98859667 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case 590 Super N belongs to the Case Loader Backhoe series. The engine delivers 111.5 hp (80.5 kW), has 4 cylinders, with a displacement of 3,400.3 cm³. The engine comes from CASE. Rated speed is 2,200 rpm. The wheelbase measures 2,130.6 mm. Ground clearance is 362.7 mm. Top speed is 37 km/h. The tank holds 159.4 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 162.8 l/min. The hydraulic tank holds 132.1 litres. Working pressure is 237.9 bar. The cooling system holds 18.2 litres. The electrical system runs on 12 V. The engine fitted is the FPT F5BFL413A. The Case Loader Backhoe series covers 38 models. Rated output within it ranges from 42.1 to 125.7 hp; the 590 Super N sits in the upper part of that range with 111.5 hp. Its immediate neighbours are the 695 4x4x4 below it with 107.8 hp and the 780 above it with 121.7 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCASEcorrect
Engine modelFPT F5BFL413Acorrect
Power111.5 hp (80.5 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement3,400.3 cm³correct
Aspirationturbochargedcorrect
Coolant capacity18.2 lcorrect

Dimensions and weights

Wheelbase2,130.6correct
Ground clearance362.7correct

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Top speed37 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow162.8 l/mincorrect
Hydraulic oil capacity132.1 lcorrect
Hydraulic pressure237.9correct
Fuel tank capacity159.4 lcorrect

Frequently asked questions

How much power does the Case 590 Super N have?

The Case 590 Super N delivers 112 hp.

What engine does the Case 590 Super N have?

4 cylinders, 3,400 cm³ displacement.

How fast does the Case 590 Super N go?

Top speed is 37 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
