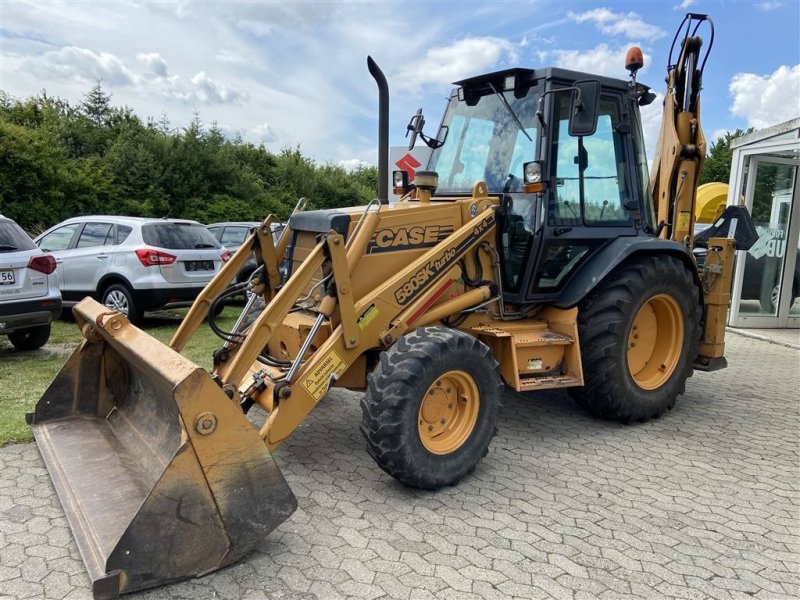

Case 580SK

Series: Case Loader Backhoe

Source: https://www.technikboerse.at/gebraucht/sonstige-bagger-lader

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 580SK from Case is part of the Case Loader Backhoe series. The engine delivers 76.1 hp (52 kW), has 4 cylinders, with a displacement of 3,921.4 cm³. The engine comes from Case. Rated speed is 2,200 rpm. The wheelbase measures 2,130.6 mm. Ground clearance is 381 mm. The tank holds 94.6 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 98.4 l/min. The hydraulic tank holds 109.8 litres. Working pressure is 175.8 bar. The cooling system holds 17 litres. The electrical system runs on 12 V. The engine fitted is the 4-390. The Case Loader Backhoe series covers 38 models. Rated output within it ranges from 42.1 to 125.7 hp; the 580SK sits in the middle of that range with 76.1 hp. Its immediate neighbours are the 580L below it with 76 hp and the 580M above it with 81.1 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCasecorrect
Engine model4-390correct
Power76.1 hp (52 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Displacement3,921.4 cm³correct
Coolant capacity17 lcorrect

Dimensions and weights

Wheelbase2,130.6correct
Ground clearance381correct

Drivetrain and chassis

Gearbox typeFully synchromesh gearbox 4-speed forward reverse shuttlecorrect
Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow98.4 l/mincorrect
Hydraulic oil capacity109.8 lcorrect
Hydraulic pressure175.8correct
Fuel tank capacity94.6 lcorrect

Frequently asked questions

How much power does the Case 580SK have?

The Case 580SK delivers 76.1 hp.

What engine does the Case 580SK have?

4 cylinders, 3,921 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
