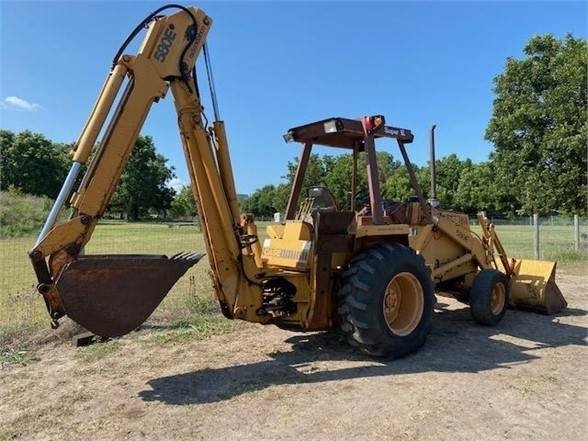

Case 580SE

With the 580SE, Case offers a model from the Case Loader Backhoe series. The engine delivers 70 hp (47 kW), has 4 cylinders, with a displacement of 3,900.1 cm³. The engine comes from Case. Rated speed is 2,200 rpm. The wheelbase measures 3,282.7 mm. Ground clearance is 234.7 mm. The tank holds 100.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 113.6 l/min. The hydraulic tank holds 47.3 litres. Working pressure is 137.9 bar. The cooling system holds 18.2 litres. The electrical system runs on 12 V. The engine fitted is the 4-390. The Case Loader Backhoe series covers 38 models. Rated output within it ranges from 42.1 to 125.7 hp; the 580SE sits in the lower part of that range with 70 hp. Its immediate neighbours are the 580K below it with 64 hp and the 580N EP above it with 74.8 hp. 620 Case models across 22 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.
