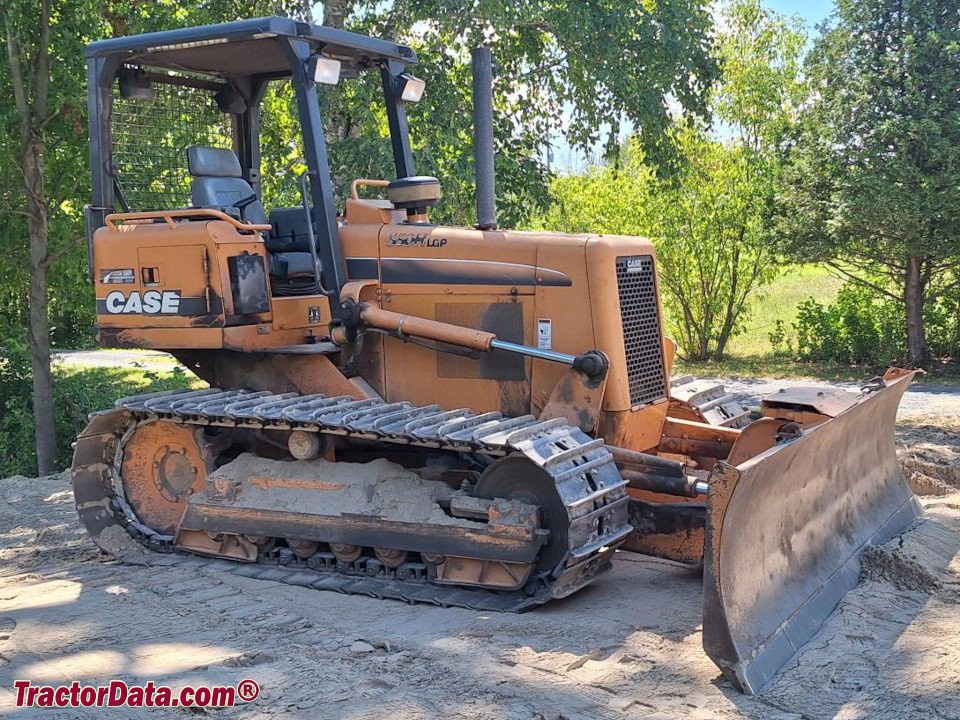

Case 550H WT Crawler
Series: Pozostałe modele
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine model | 4-390correct |
|---|---|
| Power | 76 hp (50 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 245.4correct |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,916.5 cm³correct |
| Aspiration | Naturalcorrect |
| Coolant capacity | 15.9 lcorrect |
| Engine oil capacity | 9.5 lcorrect |
Dimensions and weights
| Ground clearance | 353.6correct |
|---|---|
| Unladen weight | 6,622.4 kgcorrect |
Drivetrain and chassis
| Gearbox type | Case constant - mesh modulated transmissioncorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 4correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 82.9 l/mincorrect |
|---|---|
| Hydraulic pressure | 172.4correct |
| Fuel tank capacity | 115.5 lcorrect |
Other data
| Height | 2,590.8correct |
|---|
Where this model stands
Power-to-weight ratio: 7.6 kW/t (50 kW / 6.6 t)
Stronger than 11% of the mining equipment in the register — out of 945 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case 550H WT have?
The Case 550H WT delivers 76 hp.
How much does the Case 550H WT weigh?
The unladen weight is 6,622 kg.
What engine does the Case 550H WT have?
4 cylinders, 3,916 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
