Case 1850K LGP Crawler

Series: Pozostałe modele

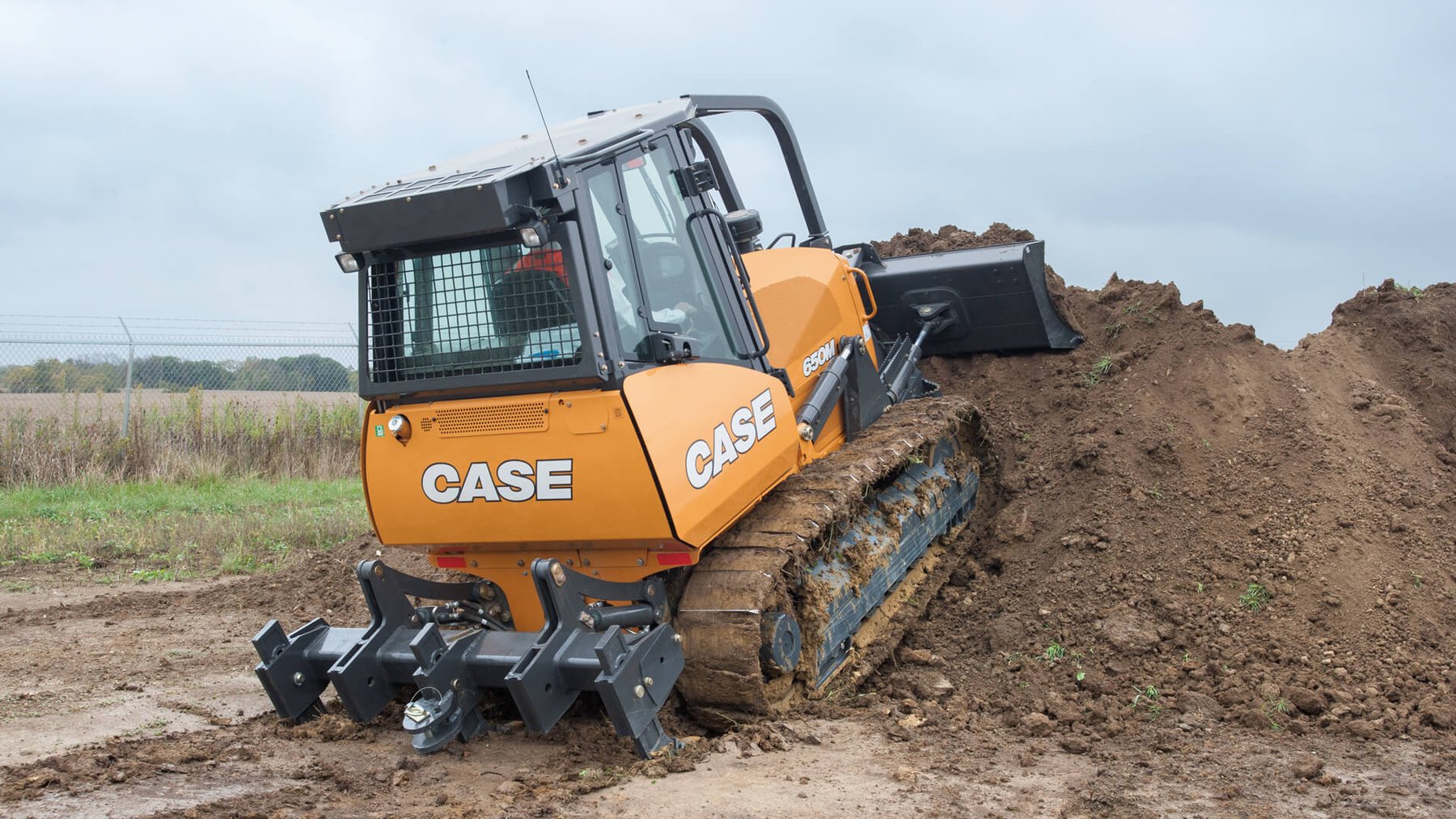

The photo shows the 650M from the same series. Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 1850K LGP, Case offers a model from the Case Crawler Tractor series. The engine delivers 212.9 hp (148.4 kW), has 6 cylinders, with a displacement of 6,702.3 cm³. Torque is 951.8 Nm. Rated speed is 2,000 rpm. The unladen weight is 22,430.1 kg. Ground clearance is 381 mm. The tank holds 401.3 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 249.1 l/min. The cooling system holds 25.4 litres. The oil fill is 19.3 litres. The electrical system runs on 24 V. The engine fitted is the Case Family IV 667TA/EBF. The Case Crawler Tractor series covers 51 models. Rated output within it ranges from 74.8 to 588 hp; the 1850K LGP sits in the lower part of that range with 212.9 hp. Its immediate neighbours are the 1850K XLT below it with 196.7 hp and the 2050M above it with 235.2 hp. 620 Case models across 22 series are on record. The model is listed under Mining equipment. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCase Family IV 667TA/EBFcorrect
Power212.9 hp (148.4 kW)correct
Rated speed2,000 rpmcorrect
Torque951.8correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,702.3 cm³correct
Coolant capacity25.4 lcorrect
Engine oil capacity19.3 lcorrect

Dimensions and weights

Ground clearance381correct
Unladen weight22,430.1 kgcorrect

Drivetrain and chassis

Gearbox typePower Shiftcorrect
Forward gears3correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow249.1 l/mincorrect
Fuel tank capacity401.3 lcorrect

Other data

Height4,633correct

Where this model stands

Power-to-weight ratio: 6.6 kW/t (148 kW / 22.4 t)

Stronger than 55% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 1850K LGP have?

The Case 1850K LGP delivers 213 hp.

How much does the Case 1850K LGP weigh?

The unladen weight is 22,430 kg.

What engine does the Case 1850K LGP have?

6 cylinders, 6,702 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
