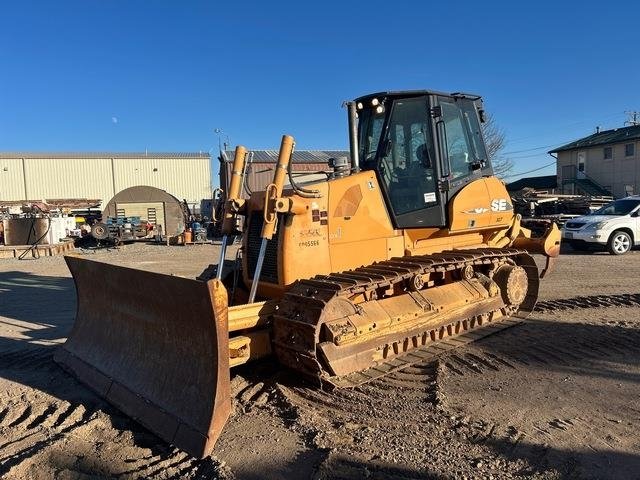

Case 1650L XLT Crawler

Series: Pozostałe modele

Source: https://www.ritchielist.com/construction/dozers-crawler-doze

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case Crawler Tractor series from Case includes the 1650L XLT. The engine delivers 158.2 hp (107.4 kW), has 6 cylinders, with a displacement of 6,702.3 cm³. Torque is 668.4 Nm. Rated speed is 2,200 rpm. The unladen weight is 15,967.8 kg. Ground clearance is 347.5 mm. The tank holds 246.1 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 132.1 l/min. Working pressure is 195.1 bar. The cooling system holds 32.6 litres. The oil fill is 15.9 litres. The electrical system runs on 24 V. The engine fitted is the Family IV 667TA/EDJ. The Case Crawler Tractor series covers 51 models. Rated output within it ranges from 74.8 to 588 hp; the 1650L XLT sits in the lower part of that range with 158.2 hp. Its immediate neighbours are the 1450B below it with 154.1 hp and the 1650M above it with 166.3 hp. 620 Case models across 22 series are on record. The model is listed under Mining equipment. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelFamily IV 667TA/EDJcorrect
Power158.2 hp (107.4 kW)correct
Rated speed2,200 rpmcorrect
Torque668.4correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,702.3 cm³correct
Coolant capacity32.6 lcorrect
Engine oil capacity15.9 lcorrect

Dimensions and weights

Ground clearance347.5correct
Unladen weight15,967.8 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
System voltage24 Vcorrect

Working data

Pump flow132.1 l/mincorrect
Hydraulic pressure195.1correct
Fuel tank capacity246.1 lcorrect

Other data

Height2,996.2correct

Where this model stands

Power-to-weight ratio: 6.7 kW/t (107 kW / 16 t)

Stronger than 42% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 1650L XLT have?

The Case 1650L XLT delivers 158 hp.

How much does the Case 1650L XLT weigh?

The unladen weight is 15,968 kg.

What engine does the Case 1650L XLT have?

6 cylinders, 6,702 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
