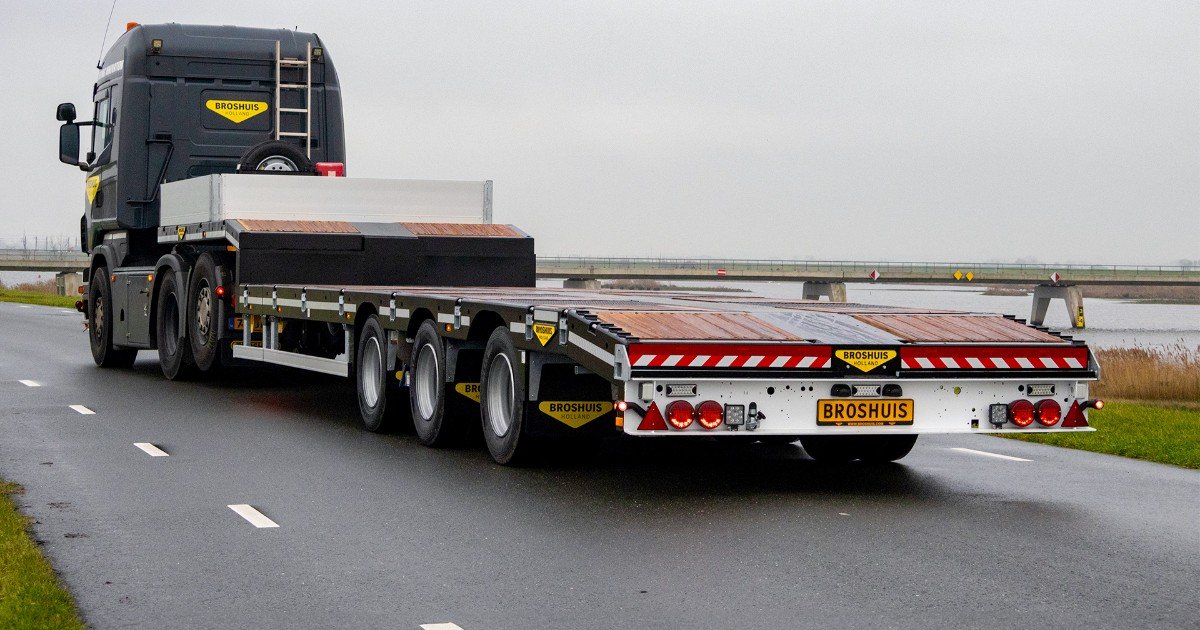

Broshuis 2+.ABD-PL – specifications
Built: 2021 · Series: 2ABD-PL
The Broshuis 2+.ABD-PL belongs to the 2ABD-PL series. Production: 2021. The vehicle is 7,600 mm long and 2,770 mm wide. The unladen weight is 11,060 kg. The wheelbase measures 5,380 mm. Top speed is 80 km/h. The gross vehicle weight is 52,800 kg. The vehicle runs on 8 wheels. The 2ABD-PL series covers 5 models. Unladen weight within it ranges from 11,060 to 20,000 kg; the 2+.ABD-PL sits at the bottom of that range with 11,060 kg. Its immediate neighbours are the 2ABD-PL/1(80KM/H) above it with 14,400 kg. Gross vehicle weight within it ranges from 46,500 to 52,800 kg; here the 2+.ABD-PL sits at the top of that range with 52,800 kg. 554 Broshuis models across 14 series are on record.
Data for the version built 2021 · Data origin: Official register · sources
More machines from model year 2021
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Broshuis 2ABD-PL – Dutch low-loader semi-trailers from Kampen with a gross weight rating of 46,500 to 52,800 kg: an 80 km/h version, 2,550 to 2,980 mm width
Broshuis of Kampen in the Netherlands specialises in low-loader and semi-low-loader semi-trailers for heavy-load transport. The 2ABD-PL range covers several versions of the same base type, including a variant marked 80KM/H for a maximum speed limited to 80 km/h and versions with the /1 and /2 suffixes for different axle counts.
Read on 3 more paragraphs
The register lists here 5 versions with unladen weights from 11,060 to 20,000 kg and gross weight ratings from 46,500 to 52,800 kg. Recorded lengths range from 7,600 to 7,700 mm, widths from 2,550 to 2,980 mm.
At gross weights up to 52.8 tonnes and widths close to 3 m, the 2ABD-PL range counts among the heavy special-transport semi-trailers used to carry construction machinery, industrial plant and other bulky heavy loads in European heavy haulage, which frequently requires a special permit. The comparatively short length at such high gross weight points to a compact, multi-axle build with correspondingly high axle loads.
On a used example, check the frame and chassis rails for cracks and deformation, the condition of the multi-axle units and air suspension, the kingpin and wear plates of the mounting surface, and the brake system with its connections. On the wider versions, also check axle alignment, and on versions with self-loading ramps the condition of the ramps and loading rails; parts for axles and brake components come from the European commercial-vehicle parts trade.
Sources: SpecCodex register, model data: Broshuis 2ABD-PL
Technical data
Dimensions and weights
| Length | 7,600 mmcorrect |
|---|---|
| Width | 2,770 mmcorrect |
| Coupling-to-axle distance | 5,380 mmcorrect |
| Unladen weight | 11,060 kgcorrect |
| Gross vehicle weight | 52,800 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 80 km/hcorrect |
Frequently asked questions
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
