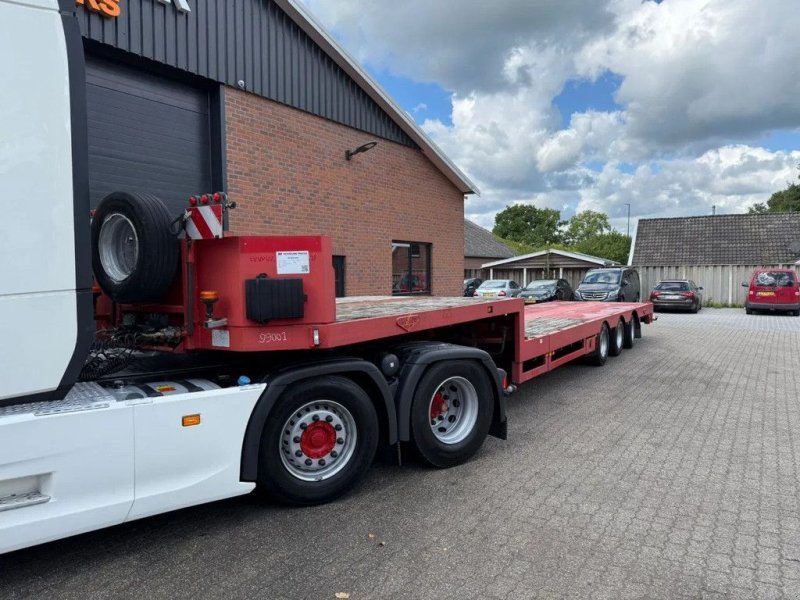

Broshuis 2ABD-PL
Built: 2022-2026 · Series: 2ABD-PL
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Broshuis 2ABD-PL – Dutch low-loader semi-trailers from Kampen with a gross weight rating of 46,500 to 52,800 kg: an 80 km/h version, 2,550 to 2,980 mm width
Broshuis of Kampen in the Netherlands specialises in low-loader and semi-low-loader semi-trailers for heavy-load transport. The 2ABD-PL range covers several versions of the same base type, including a variant marked 80KM/H for a maximum speed limited to 80 km/h and versions with the /1 and /2 suffixes for different axle counts.
Read on 3 more paragraphs
The register lists here 5 versions with unladen weights from 11,060 to 20,000 kg and gross weight ratings from 46,500 to 52,800 kg. Recorded lengths range from 7,600 to 7,700 mm, widths from 2,550 to 2,980 mm.
At gross weights up to 52.8 tonnes and widths close to 3 m, the 2ABD-PL range counts among the heavy special-transport semi-trailers used to carry construction machinery, industrial plant and other bulky heavy loads in European heavy haulage, which frequently requires a special permit. The comparatively short length at such high gross weight points to a compact, multi-axle build with correspondingly high axle loads.
On a used example, check the frame and chassis rails for cracks and deformation, the condition of the multi-axle units and air suspension, the kingpin and wear plates of the mounting surface, and the brake system with its connections. On the wider versions, also check axle alignment, and on versions with self-loading ramps the condition of the ramps and loading rails; parts for axles and brake components come from the European commercial-vehicle parts trade.
Technical data
Dimensions and weights
| Length | 7,700 mmcorrect |
|---|---|
| Width | 2,770 mmcorrect |
| Wheelbase | 5,380 mmcorrect |
| Unladen weight | 20,000 kgcorrect |
| Gross vehicle weight | 52,800 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 80 km/hcorrect |
Frequently asked questions
How much does the Broshuis 2ABD-PL weigh?
The unladen weight is 20,000 kg.
What is the gross vehicle weight of the Broshuis 2ABD-PL?
52,800 kg.
Up to what speed is the Broshuis 2ABD-PL approved?
Approved up to 80 km/h.
What are the dimensions of the Broshuis 2ABD-PL?
7,700 mm × 2,770 mm.
When was the Broshuis 2ABD-PL built?
Production years: 2022-2026.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
